Help CenterIndoor AWS 1700mhz Signal Repater for Cell Phone
Related Products
-
AWS 1700mhz Single Band Home or Office Cell Phone Signal Booster Repeater AmplifierUS$ 1 - 47MOQ: 1 Piece -
1700mhz Signal Repeater AWS Mobile Booster 3g Home Amplifier Low PriceUS$ 25 - 45MOQ: 5 Pieces
-
Repeaters AWS 1700mhz Signal BoosterNegotiableMOQ: 1 Piece
-
1700mhz Signal Booster AmplifierUS$ 1 - 55MOQ: 1 Piece
-
With LCD Screen AWS1700 Singal Booster 3G Signal RepeaterNegotiableMOQ: 1 Piece
Are you suffering from poor signal?
Ok,the signal repeater can solve this problem !
Mobile signal repeater is designed to solve the blind signal area of mobile phone. As the mobile phone signal is transmitted by electromagnetic waves to establish a communications link, however there are a lot barriers make it is unavailable to get sound signal. When people enter some tall buildings, some places basement malls,restaurants and parking lot, some places of entertainment such as karaoke sauna and massage, some public place such as subway, tunnel and etc. where cell phone signal can not reach.
And the mobile signal repeater can solve these problems!
How to install the signal repeater?
Step 1: Install the outdoor antenna in a suitable place
Step 2: Connect the outdoor antenna to the booster “outdoor” side by cable and connector
Step 3: Connect the indoor antenna to the booster “indoor” side by cable and connector
Step 4: Connect to the power
Note: Connect outdoor (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other and must be separated by wall.

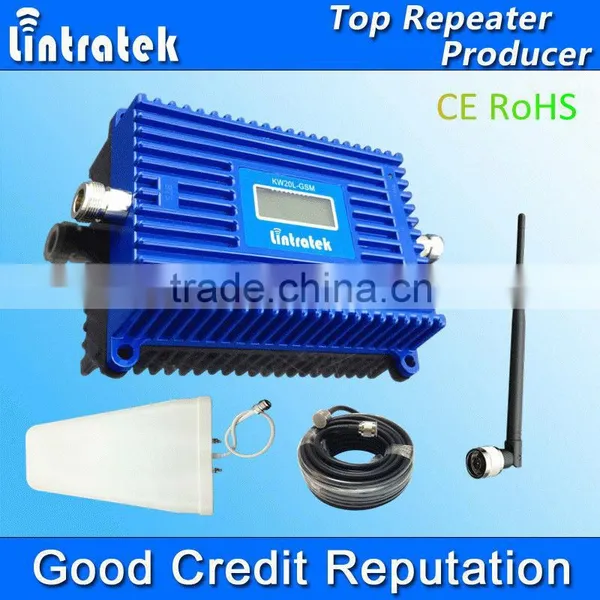

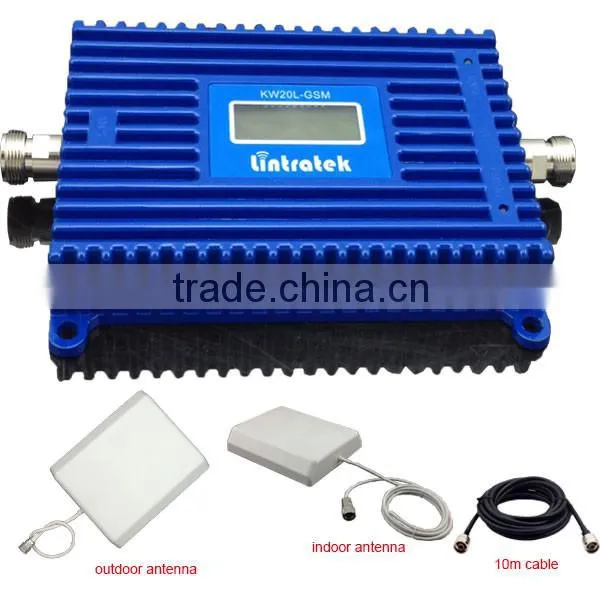

Mobile signal repeater full sets:

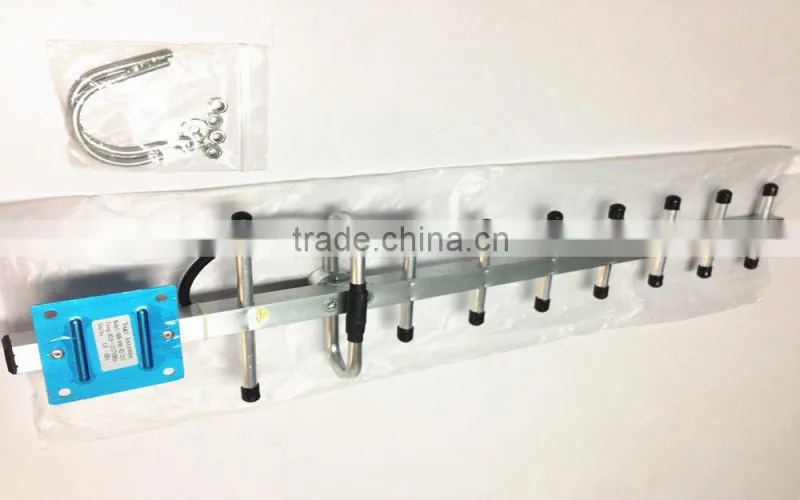

- Outdoor antenna like YAGI antenna or panel antenna
- Indoor Omni ceiling antenna
- Power adapter
- User manual
- Cell phone repeater
- 10 meters outdoor cable
Model No |
KW20L-2100 |
||
Parameter data |
Uplink |
Downlink |
|
Frequency Range |
UL:1710~1755mhz |
2110~2155mhz | |
Output Power |
20 ±2dBm |
20 ±2dBm |
|
Gain |
70 dB |
70 dB |
|
Bandwidth |
Wide Band |
||
Automatic Gain Control |
>20dB |
||
Ripple in Band |
≤5dB |
||
Intermodulation Products |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Spurious Emission |
9KHz~1GHz |
≤ -36 dBm |
|
1GHz~12.75GHz |
≤ -30 dBm |
||
Noise Figure @ max. gain |
≤ 6 dB |
||
VSWR |
≤3 |
||
MTBF |
>50000 hours |
||
Power Supply |
AC:90~265V, 50/ 60Hz;DC:12V 3A |
||
Power Consumption |
< 20W |
||
Impedance |
50 ohm |
||
Mechanical Specification | |||
RF Connector |
N-Female |
||
Cooling |
Heatsink Convection cooling |
||
Dimensions (D x W xH ) |
200*110*25 |
||
Weight |
0.85Kg |
||
Installation Type |
Wall Installation |
||
Environment Conditions |
IP40 |
||
Humidity |
< 90% |
||
Operating Temperature |
-10°C ~ 55°C |
||
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check it outdoor antenna point to signal tower correctly or elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly? And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
