90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip

90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip thumbnail-1
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip thumbnail-2
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip thumbnail-3
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip thumbnail-4
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip thumbnail-5
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip thumbnail-6
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip photo-1
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip photo-2
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip photo-3
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip photo-4
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip photo-5
90 Leds/meter 5630 / 5730 LED Strip for Hotel LED Strip photo-6
US$ 1.86 - 1.86 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD5630
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen Huayu Lighting Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5630
Type Flex LED Strips
Input Voltage(V) DC12V
Lamp Power 18W/M
Lamp Luminous Flux(lm) 30-32lm/LED
Color Temperature(CCT) 3000-12000K
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
Certification CE, EMC, LVD
Emitting Color Warm White
Place of Origin Guangdong, China
Brand Name iLEDHL
Model Number HL-563009WW20

As a factory , we welcome orders with big quantity and cusotmize requirements.



Product Introduction



1) 30-32lm/led with  Warm white color

2) 10mm wide 1.5-1.8oz copper PCB + white printing

3) 2 year warranty

4) Available in full range of color: warm white, pure white, cold white, red, green, blue, yellow

5) Easy to install by the 3M tape on the PCB back

6) Low power consumption .High intensity and stability.

7) Unique circuit design with strong resistance against static electricity ensures the stability of the strips for long lifespan guaranteed

8) Easy connection with snap-in connectors

9) Solid-state,high shock and vibration resistant .

10) No RF interference

11) Long life 30,000 +hours

12) Certifications: Rohs and CE



Product Description

 90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip



Electrical Specification:                              PhotometricSpecification:



LED Power: 18W                                                                 LED Luminous Flux: 5630 warm white

Lamp's real power: 18W/m                                                                                   22-25 lm/led

Operating Voltage: DC12V                                                    LED Luminous efficiency: 90L/meter

Operating Humidity: 10% to 90%                                          CRI: >80

Power Factor( PF ): 0.7                                                         Color Temp.:  3000-3500K

Power Supply Efficiency: >85%





Mechancial Specification:                           Packing Specification:



IP Rating: IP22 ( IP65 / IP66 / IP67 support)                          PCS/CTN: 500 meters/CTN

Guarantee: 2 years warranty                                                  Carton Size: 52*41*28cm

PCBA: 10mm PCBA + 1.5-1.8oz copper + white printing       Gross Weight: 12.20KG

Beam Angle: 120 degree                                                        Net Weight: 11.70KG

Fixture Dimensions: L5000*W10mm                                      Size Weight: 11.94KG

Fixture Weight: 0.188KG                                                        20GP: 276400meter







Relative Models





LED Qty LED Type InputVol. Power PCBA Warranty Color Waterproof Level

SMD5730

60 LEDS/M

22-25 lm/led

DC12V

/

DC24V

 14.4W/m



10MM
Copper
1.2-1.5 oz
+ White
printing

 1 year 3000-3200K

IP22 non-waterproof

IP65 PU glue dropping

IP65 silicon glue dropping

IP66 silicon tube

IP68 PU glue injection+silicon tube
4000-4500K
6000-6500K

SMD5730

60 LEDS/M

 50 lm/led

DC12V

/

DC24V

 14.4W/m

10MM
Copper
1.5-1.8 oz
+ White
printing

 2 years   3000-3200K

IP22 non-waterproof

IP65 PU glue dropping

IP65 silicon glue dropping

IP66 silicon tube

IP68 PU glue injection+silicon tube
4000-4500K
6000-6500K

SMD5630

90 LEDS/M

 30-32 lm/led DC12C/24V 18W/m

10MM
Copper
1.5-1.8 oz
+ White
printing

 2 years 3000-3200K

IP22 non-waterproof

IP65 PU glue dropping

IP65 silicon glue dropping

IP66 silicon tube

IP68 PU glue injection+silicon tube
4000-4500K
6000-6500K
Red
Green
Blue

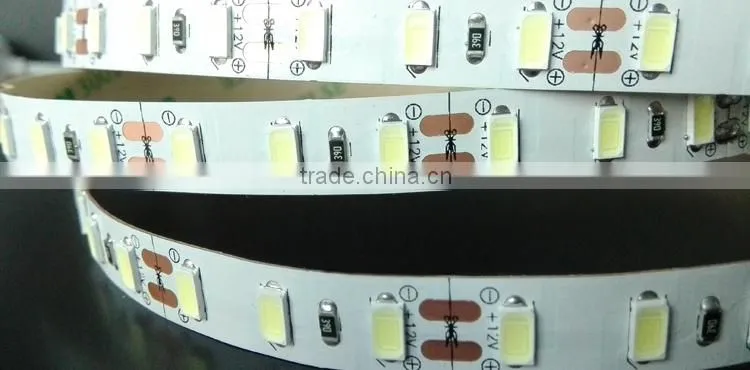

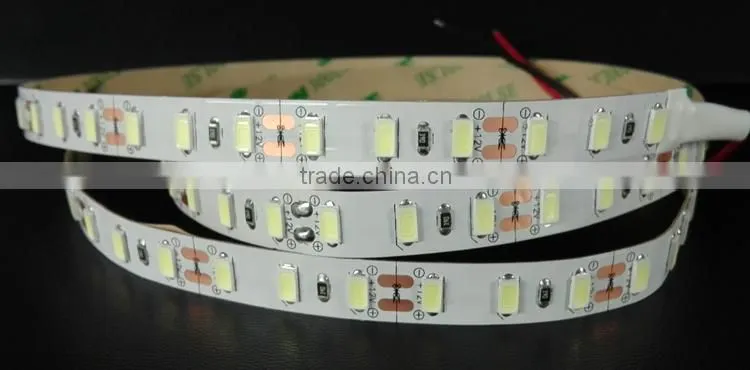

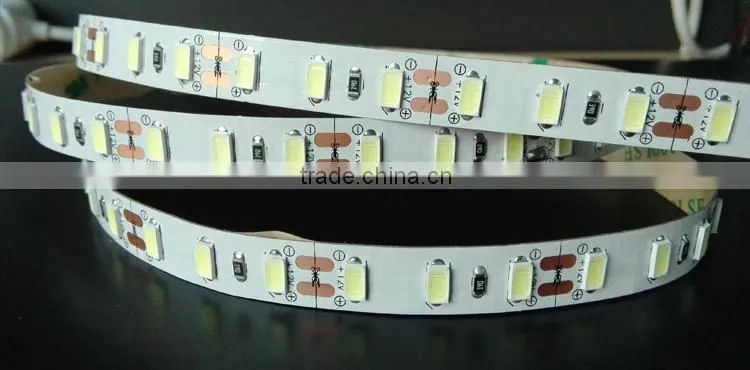

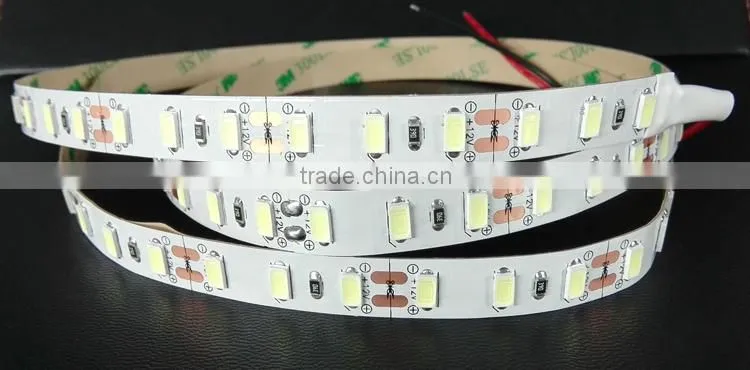

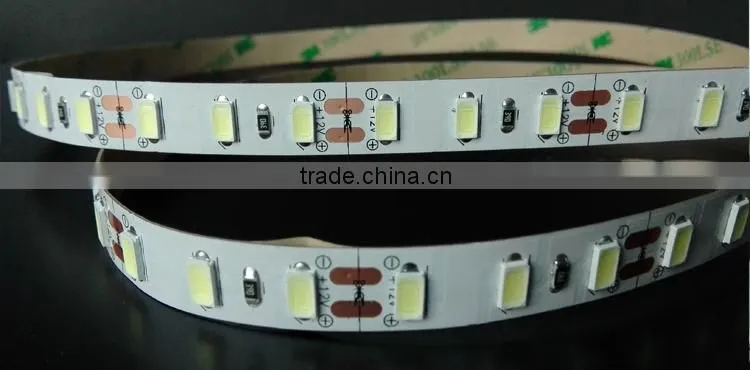

Picture Exhibition



90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip



LED Strip Accessories









Certificates

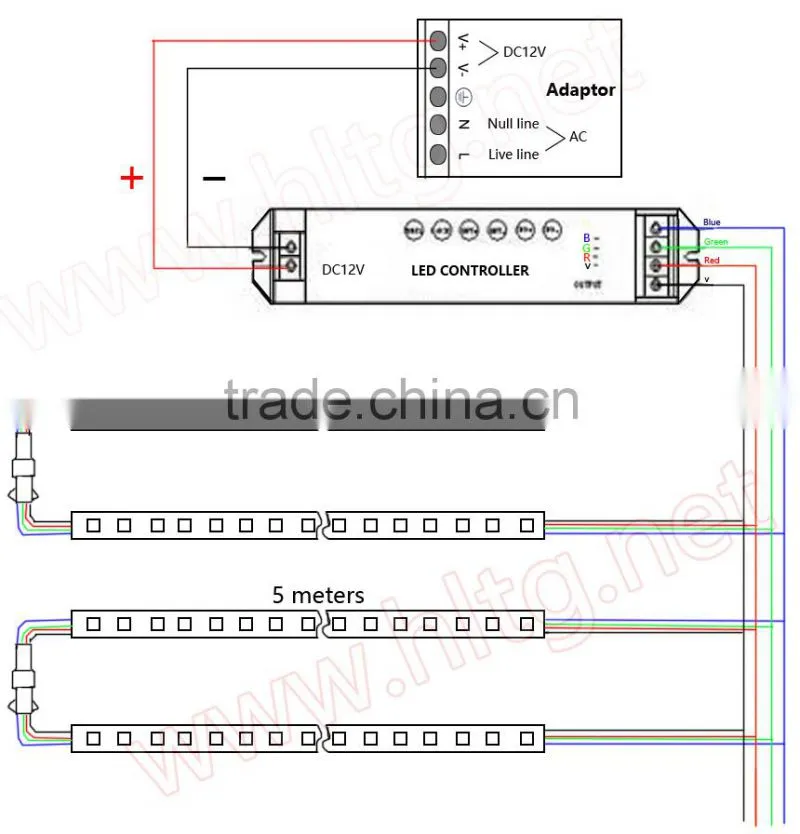

Installation



 90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip

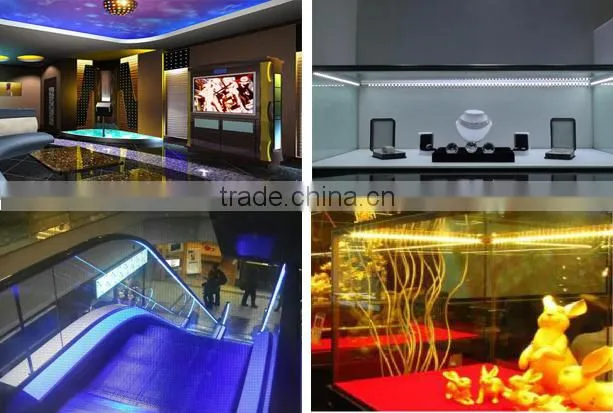

Application



1 Large lighting box single side lighting emitting

2 Channel letter

3 Advertisements sign

4 KTV,Disco

5 LOGO, advertising billboard,exposed luminous characters



90 leds/meter 5630 / 5730 LED Strip for Hotel LED strip







Attention !



The longest length is 20 pieces in a series, otherwise, the brightness of two ends will not the same.

Each series can be in parallel, and have no requirements on the quantity of paralled series.

As the strip works on DC12V, please keep in mind that connecting it with a AC-DC power supply.
