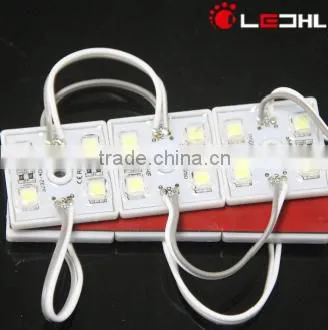

Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13

Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13 thumbnail-1
Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13 thumbnail-2
Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13 thumbnail-3
Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13 photo-1
Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13 photo-2
Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13 photo-3
US$ 0.26 - 0.26 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Light Source:
LED
Input Voltage(V):
DC12V
Lamp Power(W):
19.2
Contact Supplier Request Quote Chat Now
Shenzhen Huayu Lighting Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Light Source LED
Input Voltage(V) DC12V
Lamp Power(W) 19.2
Lamp Luminous Flux(lm) 1200
Lamp Luminous Efficiency(lm/w) 60
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 42000
IP Rating IP65
Certification CE, EMC, LVD
Emitting Color Cold White
Lamp Body Material PVC
Place of Origin Guangdong, China
Brand Name iledhl
Model Number HL-MB13
Specification
Module-MB13
Color
Cool White
Lumen
60lm
CCT(min)
6000K
CCT(max)
6500K
Power
0.96W
Voltage
DC12V
Angle
160°
Waterproof
IP65
Warranty
2 years
Specifiation
Electrical Characteristics:
1)Current dissipation 80mA;
2)Power Consumption 0.96W;
3)Quantity for maximum connection:20pcs;
4)Operating power DC12V;
Thermal:
1)Cooling:Ambient air;
2)Operating temperature:-20~50°;
3)Storage temperature:-20~60°;
Safety Features:IP65:Prevents water&dusty
Construction:
1)LED Source:SMD5050Epistar;
2)PCB:FR-4 double-layered;
3)Body:ABS;
4)Lead wire:AWG18
5)Pre-mounted adhesive tapes
Applications:
1)Specially good for large scale channel letters;
2)Flex faced cabinet illumination;
3)Duplex signage light illumination;
4)Signage and illuminated advertising with deepth 60-200mm


MB-13
Color
Lumen
CCT
Power
Angle
IP Rate
Warm White
50lm
3000K-3200K
0.96W
160°
IP65
White
60lm
4000K-4500K
0.96W
160°
IP65
Cool White
60lm
6000K-6500K
0.96W
160°
IP65
Dimensions
Intallation Method
Attention:Find the 3M tape on the back,paste it to the installation sarface. Please make sure installation surface is clean, dry and no oil dirty. We advise smooth down the mounting surface to fix on tightly.

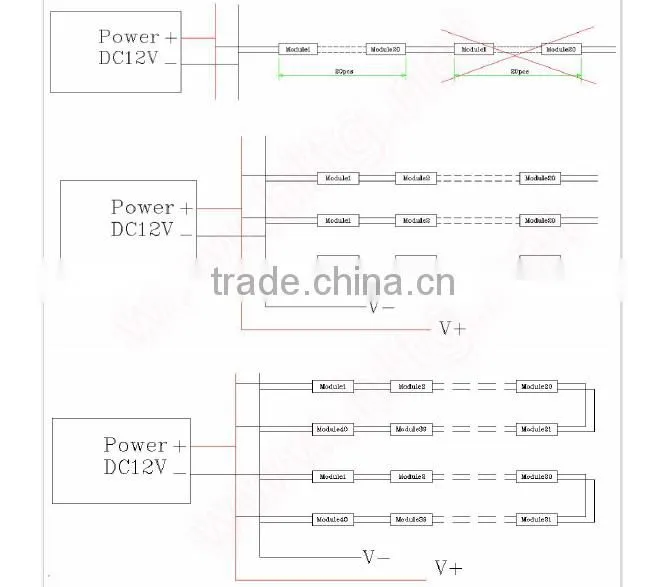

Connection Way:≤20pcs in series connection.
Please re-check the whole circuit is ok after installation also do the same step before turning on the power

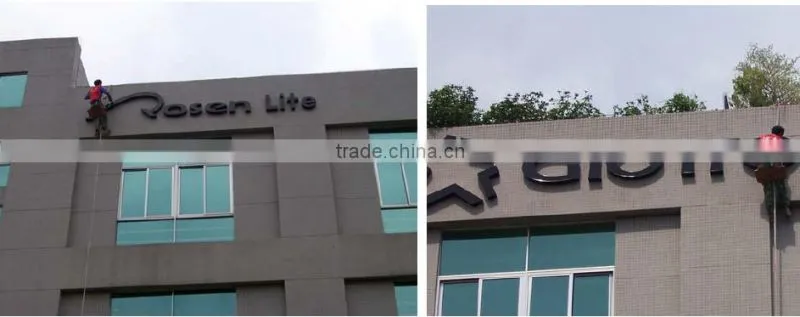

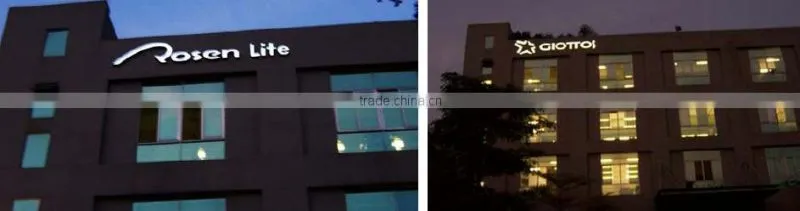

Applications

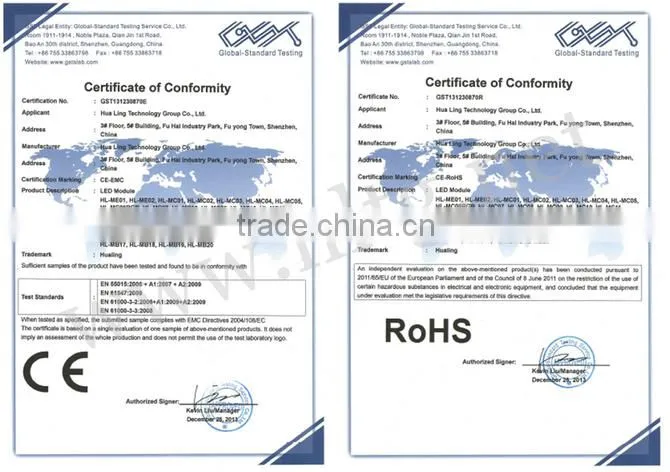

Certifications

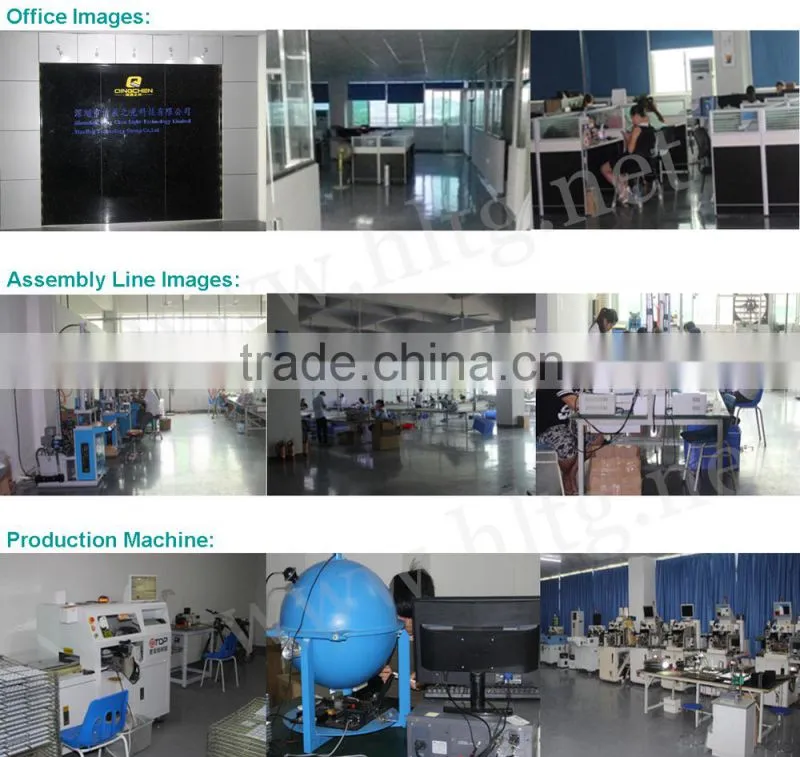

Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
