Home > Lights & Lighting > LED Encapsulation Series > LED Module > 4LEDs SMD2835 Injection Molding LED Module Yellow Color With 2.4W 200lm 160 Degree Lens 5 Years Warranty

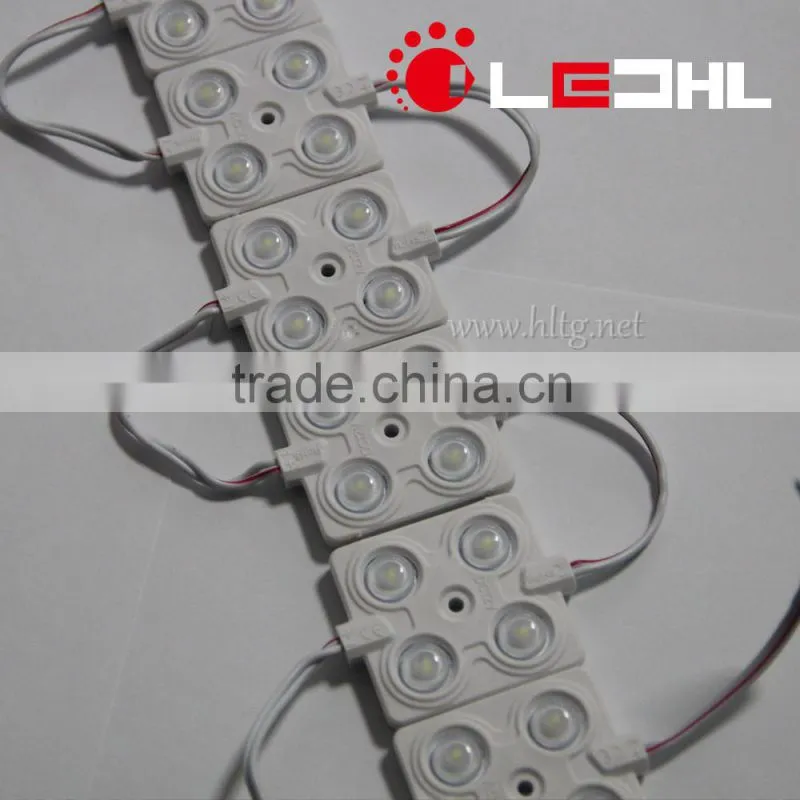

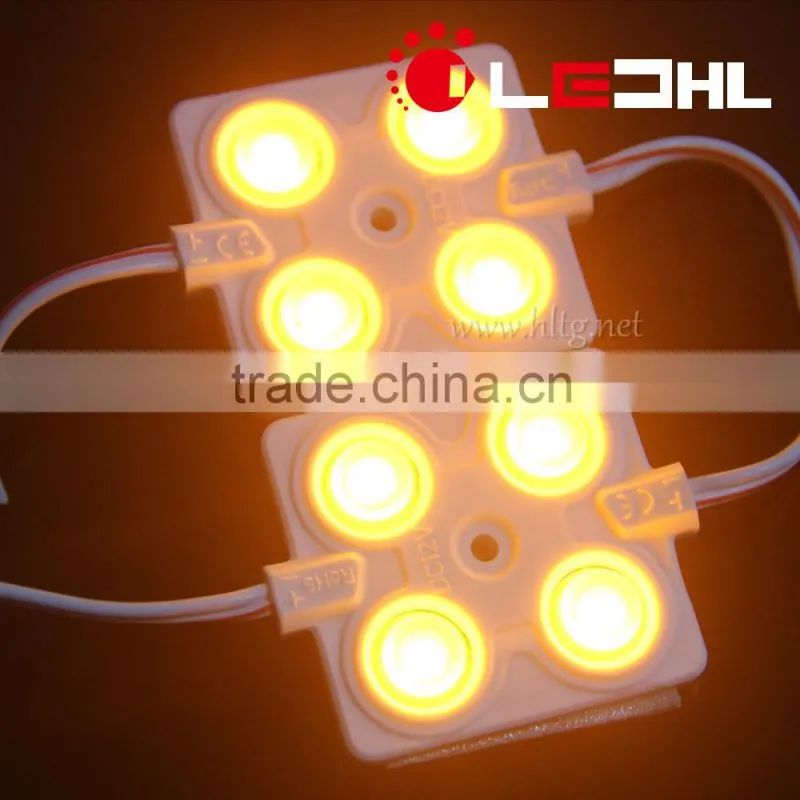

4LEDs SMD2835 Injection Molding LED Module Yellow Color With 2.4W 200lm 160 Degree Lens 5 Years Warranty
US$ 0.43 - 0.43
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
HL-MC16Y
Chip Material:
Other, LED
Emitting Color:
Cool White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 NEW!!! 1.8W LED Module With Aluminum Heatsink SMD2835 1LED High Power Module LED With DC12V 10*65 Degrees LED Edge Module Quality ChoiceUS$ 0.53 - 0.53MOQ: 1000 Pieces -
4LEDs RGB LED Module 0.96W LED Pixel Module SMD5050 Waterproof Injection DC12V LED Module With 5 Years WarrantyUS$ 0.49 - 0.49MOQ: 1000 Pieces
-
Plastic Conponent Led Module 5leds 1.2w With CE and RoHS MB14US$ 0.31 - 0.31MOQ: 2000 Pieces
-
Factory Price 4leds Led Module 0.96w SMD5050 2 Years Warranty MB13US$ 0.26 - 0.26MOQ: 2000 Pieces
-
Plastic Injection With 3leds Led Module 0.72w SMD5050 MB12US$ 0.20 - 0.20MOQ: 2000 Pieces
Model Number
HL-MC16Y
Chip Material
Other, LED
Emitting Color
Cool White
Luminous Intensity
10000
Luminous Flux(lm)
48
Optical Attenuation(%)
1
Power
Other, 1.44W
Power Dissipation
1.44W
Color Rendering Index(Ra)
80
Color Temperature
585-595nm
Operating Temperature(℃)
-20, 50
Storage Temperature(℃)
-30, 80
Place of Origin
Guangdong, China
Brand Name
iLEDHL
Certification
CE
As a factory , we welcome orders with big quantity and cusotmize requirements.
Product Introduction
(1) 1.44W / piece
(2) Epistar chip
(3) White: 200 lm
(4) DC12V input
(5) IP level : IP65
(6) 20pcs as a series
(7) Warmwhite, White, cool white supported
(8) with CE / RoHS certificate
Product Description
| Model |
HL-MC16 |
||||||||
| LED Type |
SMD2835 Epistar |
||||||||
| Color Temperature |
2700-12000K, red, green, blue, yellow |
||||||||
| Beam Angle (°) | 160° |
||||||||
| Wave Length (nm/Kelvin) | 625-630 nm | 520-530 nm | 465-470 nm | 585-595 nm | 2700-3200K | 4000-4500K | 6000-6500K |
8000-12000K | |
| Emitting Color |
Red |
Green |
Blue |
Yellow |
WW |
NW |
PW |
CW |
|
| Luemn (lm) |
24 | 20 | 24 | 48 | 200 | 220 | 220 | 220 | |
| Chip Qty (Leds) | 4 |
||||||||
| Warranty | 5 years |
||||||||
|
Electrical Parameter |
LED Power (W) | 1.44W | 2.4W |
||||||
| Working Input Voltage (V) |
DC12V |
||||||||
| Working Input Current (mA) | 120mA | 200mA |
|||||||
| Power Factor |
>0.99 |
||||||||
| Power Efficiency | >95% |
||||||||
| Lighting Efficiency | >80% | ||||||||
| Coloration Index | >80 | ||||||||
|
Features of Connection and Series |
Standard quantity of a series |
20 pcs |
|||||||
| Max quantity of a series |
20 pcs |
||||||||
|
Physical Parameter |
Diamension |
49.8*41*7.9mm |
|||||||
| Housing Color |
White |
||||||||
| Housing Material |
PVC Injection |
||||||||

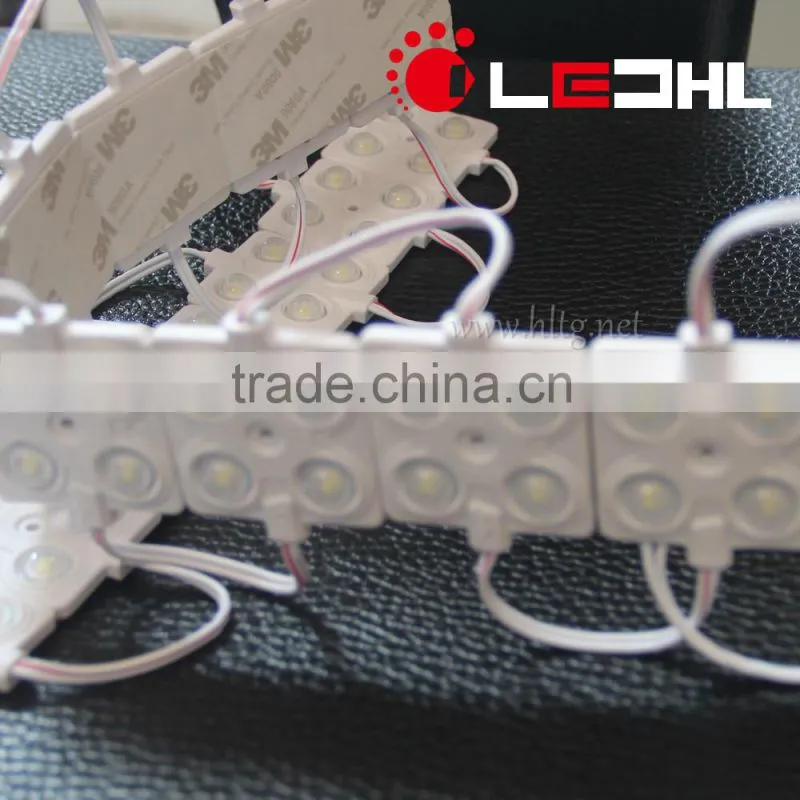

| Affixing way | FB1610PE 3M double-sided adhesive tape & 1 crew(s) or rivet(s) with diameter of 3.0-4.0 mm | ||||||||
| Wire information | Dispersive red & white wire (red + and white -)20#, total wire length=100mm | ||||||||
|
Enviromental Parameter |
Working Temperature |
-40°F- 122°F (-40°-50° C) |
|||||||
| Storage Temperature |
-58°F- 140°F (-50°-60° C) |
||||||||
| Operating Humidity |
10% - 95%, non-condensing |
||||||||
| IP Rate |
IP65 waterproof |
||||||||
| Packing | Qty/ctn |
100pcs/bag; 1000pcs/ctn |
|||||||
| Ctn Size |
50x25x27cm |
||||||||
| G.W./Ctn |
18.64KG |
||||||||
| CBM/Ctn |
0.04m3 |
||||||||

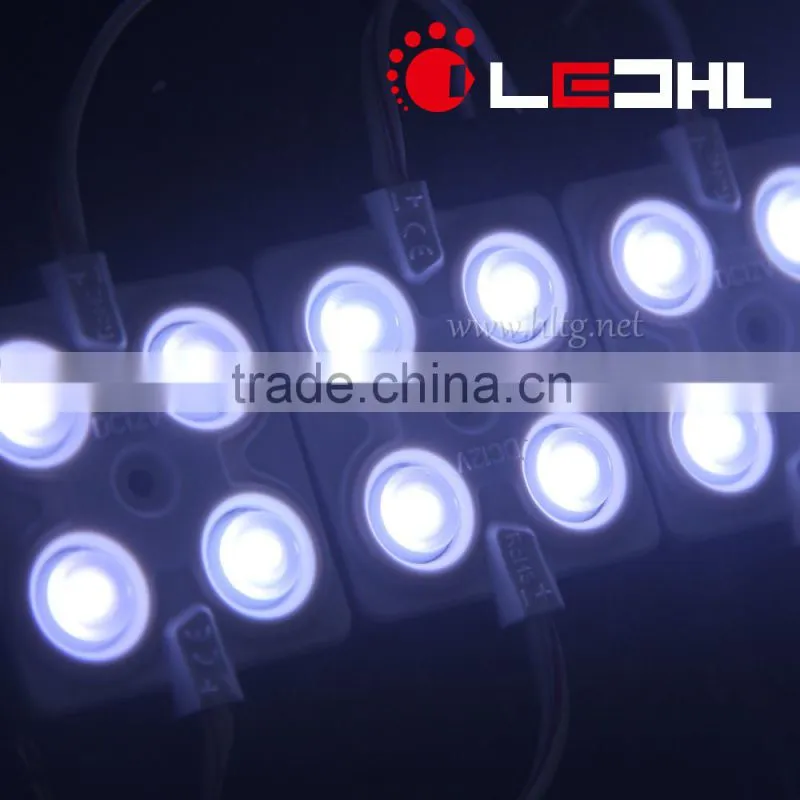

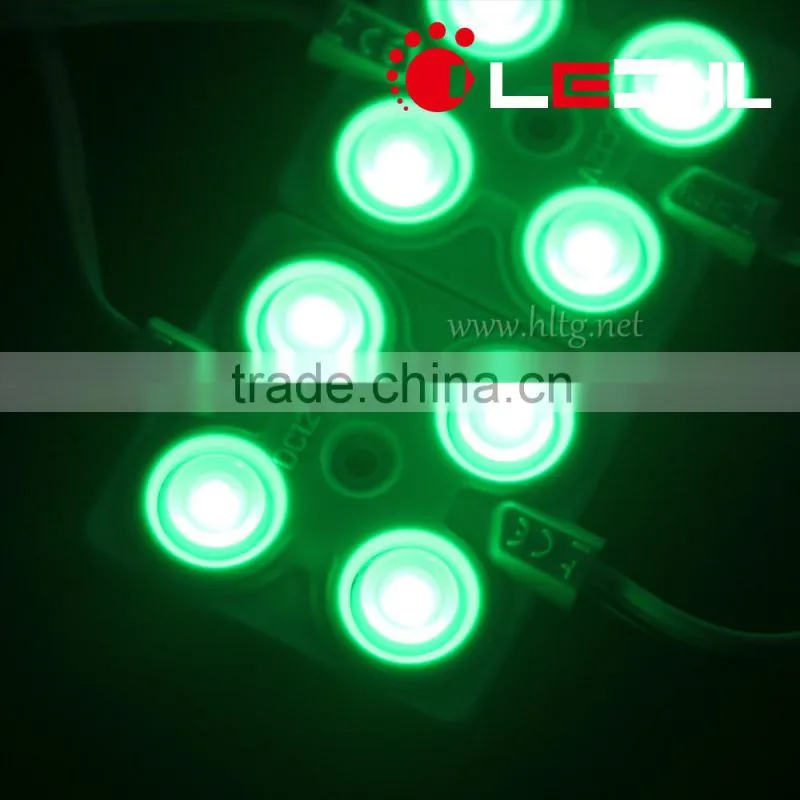

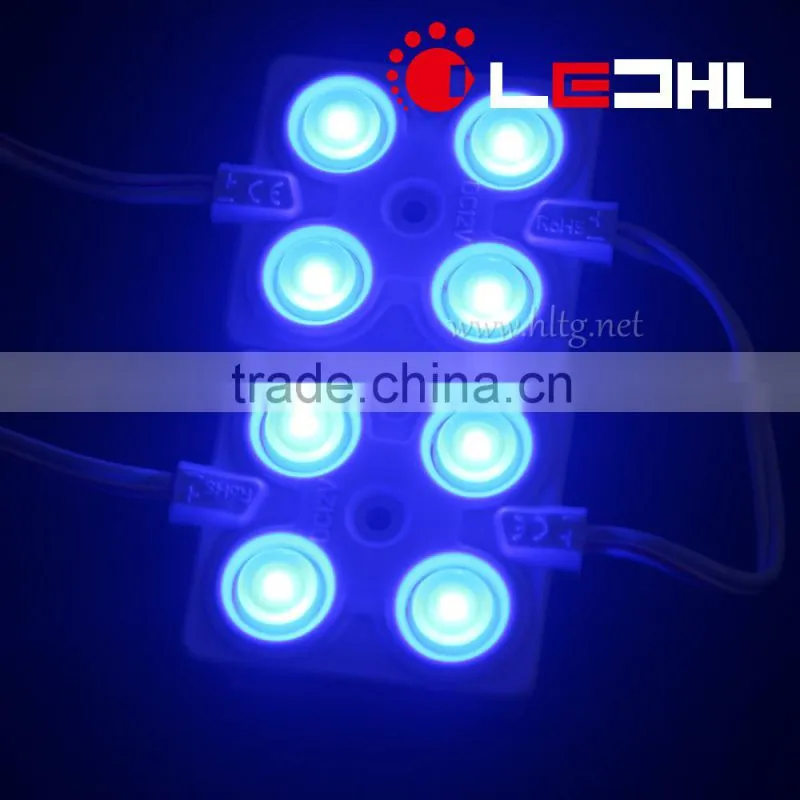

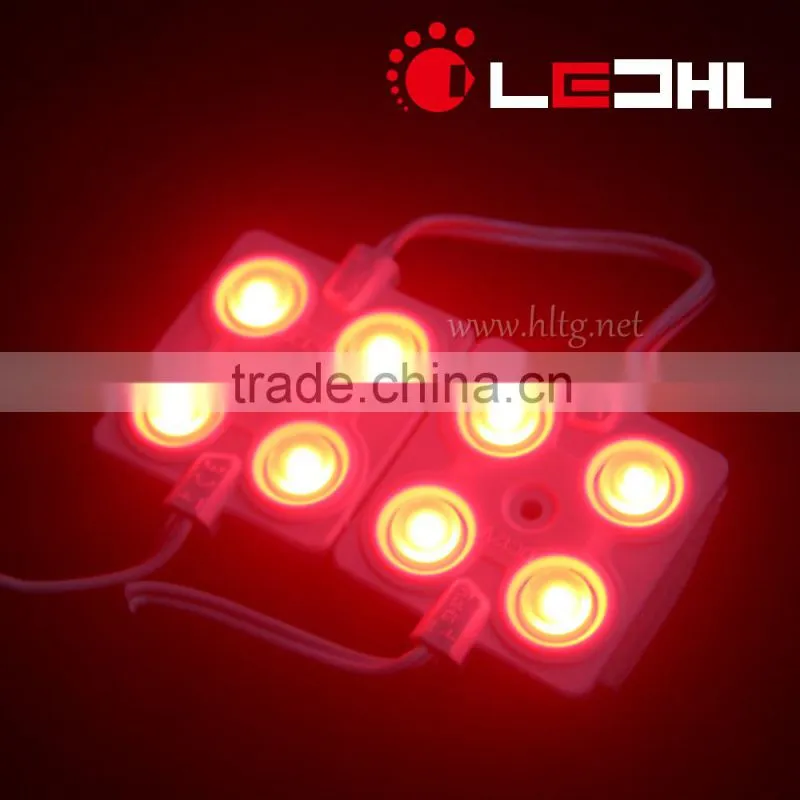

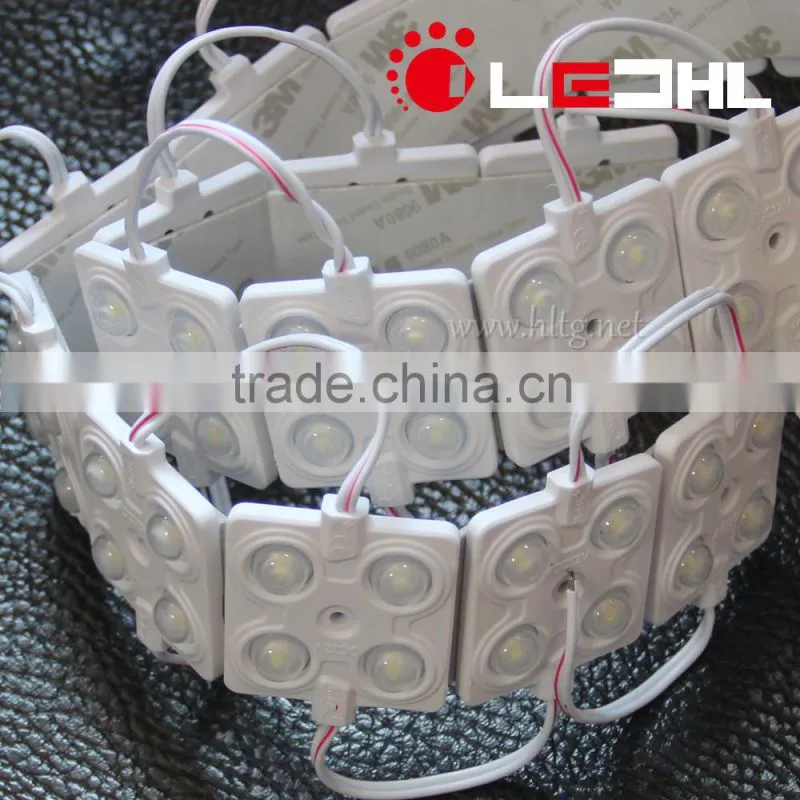

Picture Exhibition

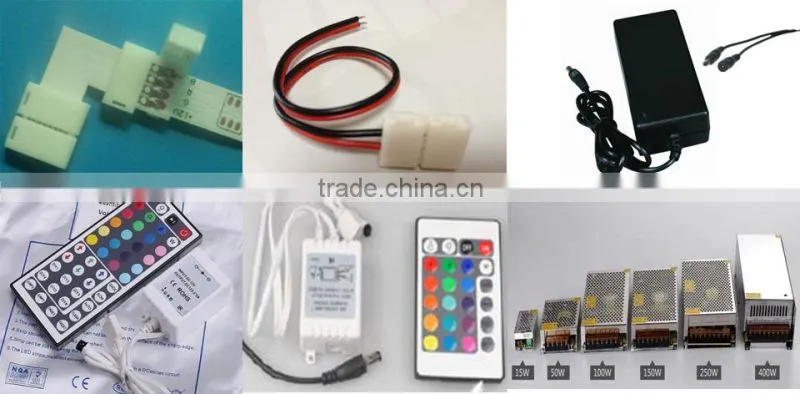

LED Strip Accessories
Certificates

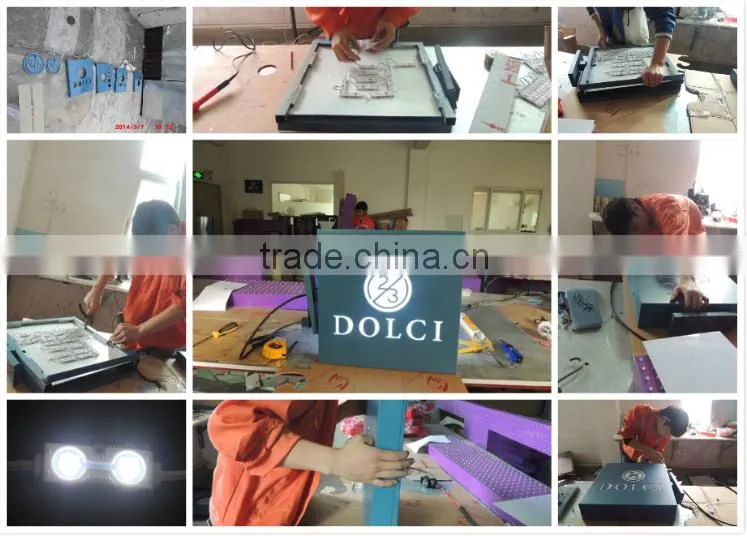

Installation
Application
1 Large lighting box single side lighting emitting
2 Channel letter
3 Advertisements sign
4 KTV,Disco
5 LOGO, advertising billboard,exposed luminous characters
6 LED display screen
Attention !

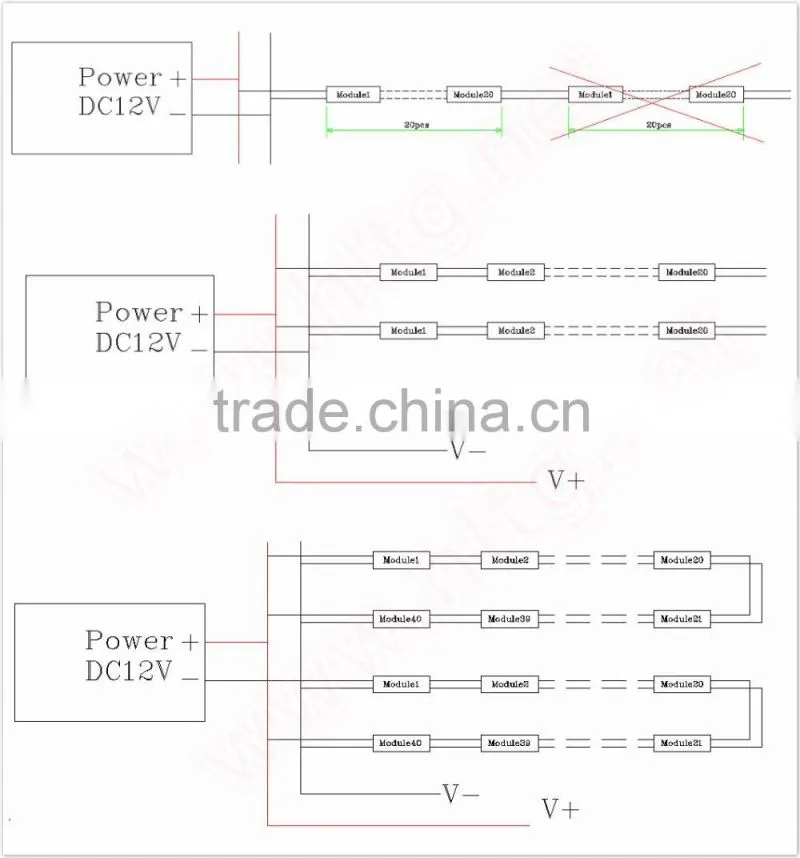

The longest length is 20 pieces in a series, otherwise, the brightness of two ends will not the same.
Each series can be in parallel, and have no requirements on the quantity of paralled series.
As the strip works on DC12V, please keep in mind that connecting it with a AC-DC power supply.
