Home > Lights & Lighting > LED Encapsulation Series > LED Module > DC12V 1.44W 4LEDs Waterproof ce Rohs SMD 5050 RGB Led Module for Channel Letters

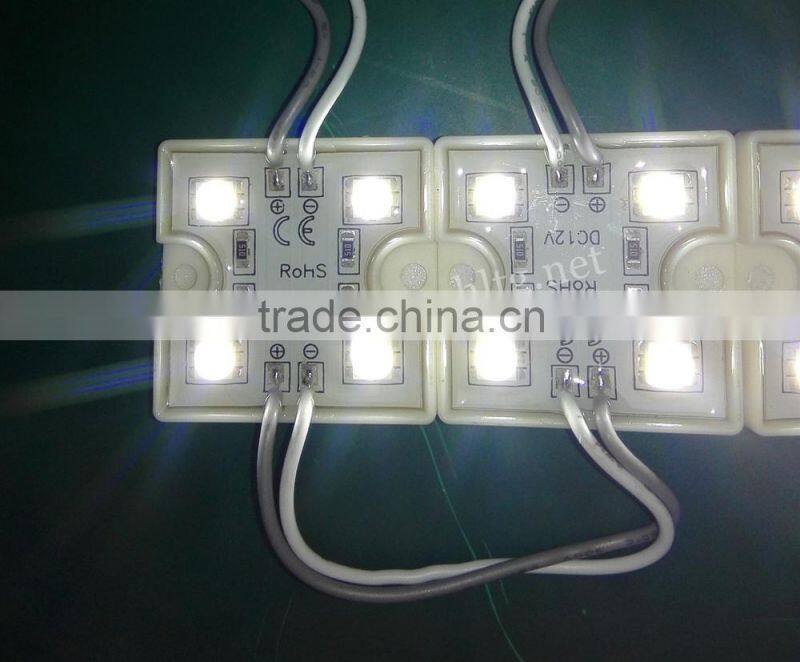

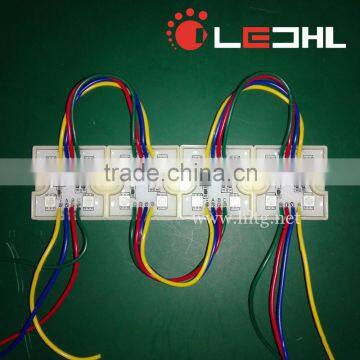

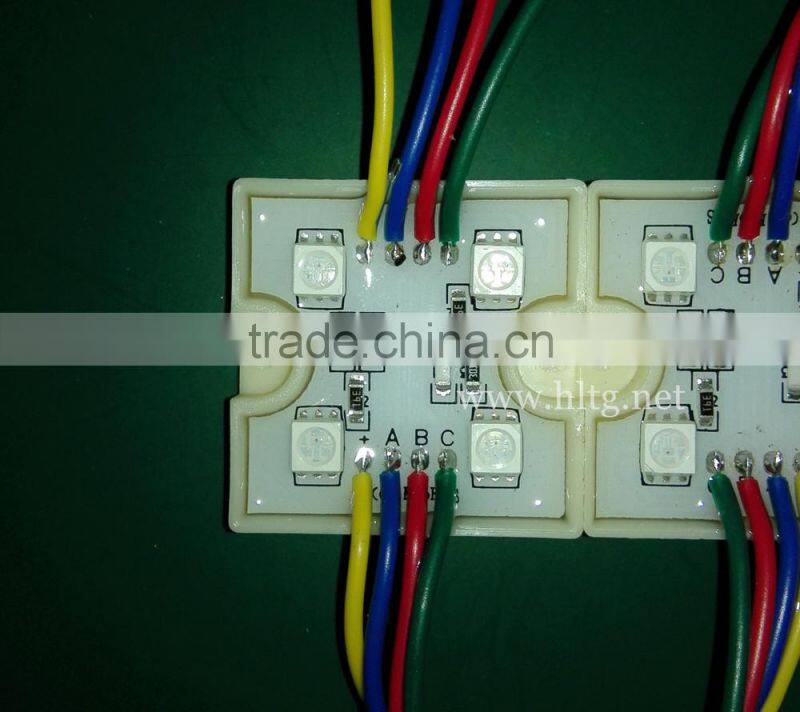

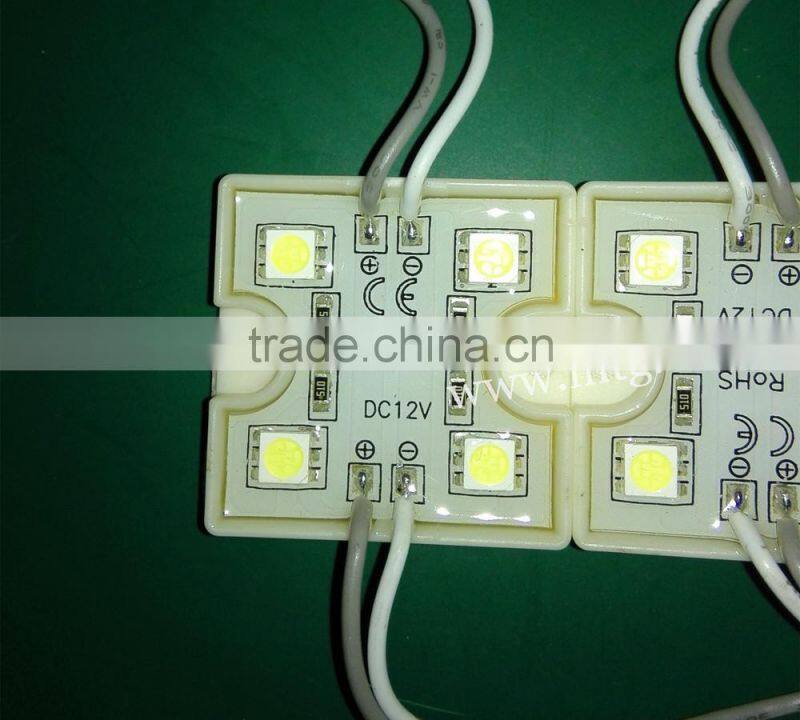

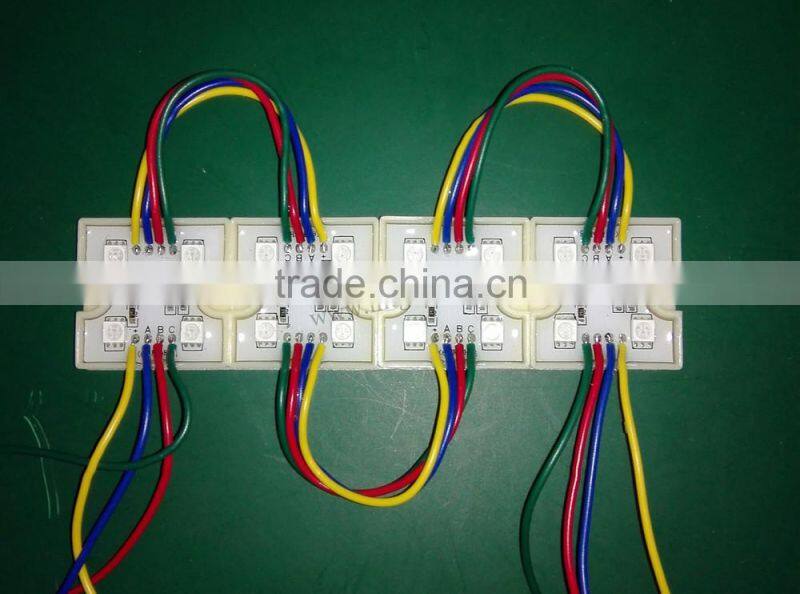

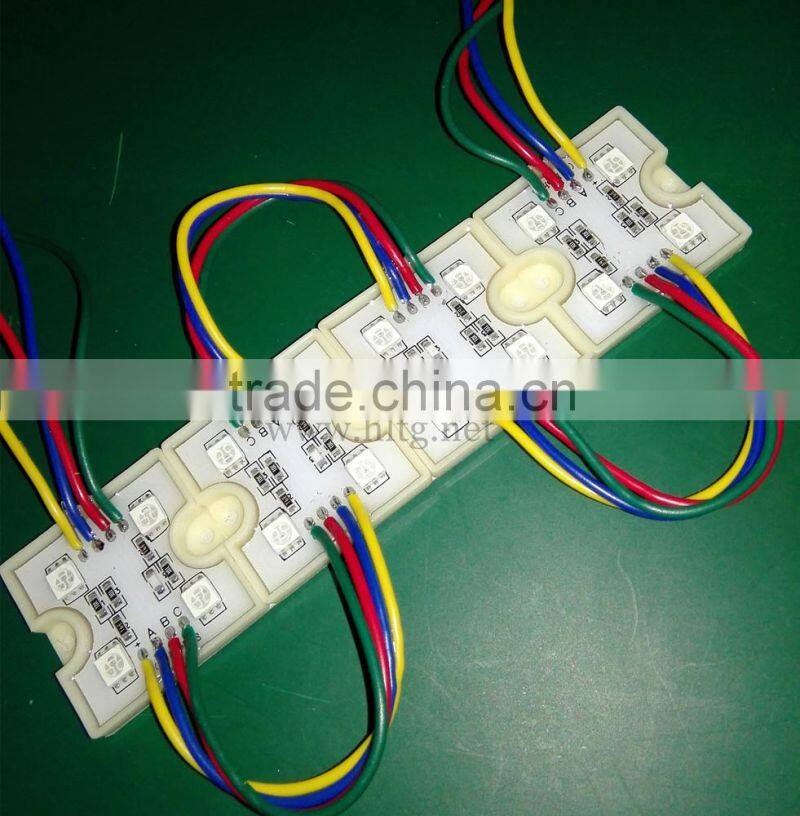

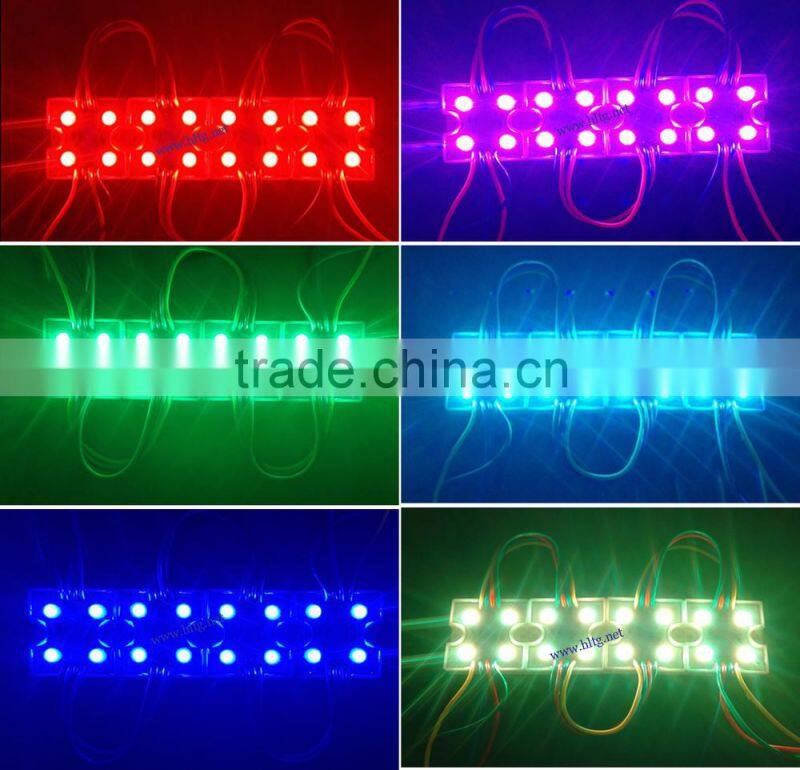

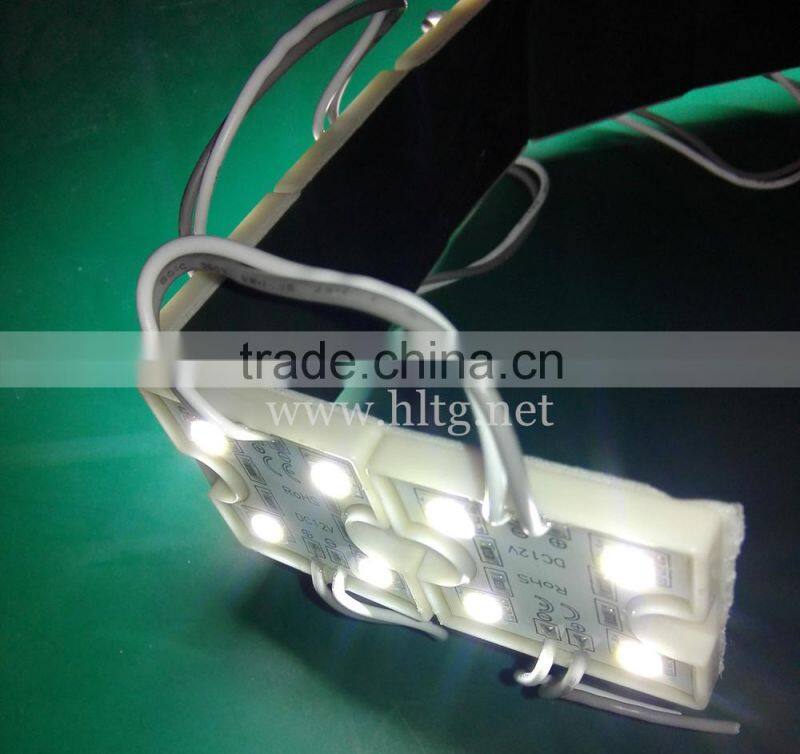

DC12V 1.44W 4LEDs Waterproof ce Rohs SMD 5050 RGB Led Module for Channel Letters
US$ 0.23 - 0.23
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
HL-MB16
Chip Material:
AlGaInP
Emitting Color:
Other, RGB
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4LEDs SMD5050 0.96W LED Module Shenzhen Factory Module LED Light With CE-RoHS CertificateUS$ 0.19 - 0.19MOQ: 1000 Pieces -
SMD 5630 / 5730 LED Module 120 Degree for Back Light Channel Letter IP65 Outdoor Warm White, White, Cool White Led Module LightUS$ 0.11 - 0.11MOQ: 1000 Pieces
-
Yellow Color High Brightness Flexible Led Strip DC12V With 3M Adhersive Easy Install SMD5050 300leds Strip LED LightUS$ 1.99 - 1.99MOQ: 500 Meters
-
SMD 5050 3pcs LED Module 0.72W IP65 for Outdoor Channel Letter Sign Board Pixel Led Module Light With 5 Years WarrantyUS$ 0.26 - 0.26MOQ: 1000 Pieces
-
3528 240leds SMD LED Strip Light Single Row DC Strip Led With Double Side PCBUS$ 3.92 - 3.92MOQ: 500 Meters
Model Number
HL-MB16
Chip Material
AlGaInP
Emitting Color
Other, RGB
Luminous Intensity
10000
Luminous Flux(lm)
RGB
Optical Attenuation(%)
1
Power
Other, 1.44W
Power Dissipation
1.44w
Color Rendering Index(Ra)
80
Color Temperature
6000-6500K
Operating Temperature(℃)
-20, 50
Storage Temperature(℃)
-30, 80
Place of Origin
Guangdong, China
Brand Name
iledhl
Certification
CE, CE
Product Introduction
(1) 0.24W/piece
(2) Use Taiwan SMD5050 original brand chipset
(3) Color: RGB
(4) Consumption: 1.44W
(5) DC12V input
(6) IP level: IP65
(7) 20pcs as a series
(8) Working temperature : -20~50 degree
(9) Packing : 100pcs / bag , 10bags / Carton
(10) Warranty: 2-3 years warranty for whole led module
(11) Offer ODM service and also the high brightness customrized strip for the project
(12) Easy installation : self adhersive
(13) Extended life : more than 50,000 hours
(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon
(15) Safe application : Low voltage DC12V, safe and stable, free maitenance
Product Specification
| Model | HL-MB16 | |
| LED Type | SMD5050 4LEDs | |
| Warranty (years) |
2-3 | |
| Emitting Color | RGB | |
| Beam Angle (°) | 120 | |
| Color Temperature(K) | RGB | |
| Chip Qty (chips) | 4 | |
| LED Chip Life (H) | 50,000 | |
|
Electrical Parameter |
Working Input Voltage (V) | DC12V |
| LED Power (W) | 1.44W | |
| Working Input Current (mA) | 120mA | |
| Features of Connection and Series | Interface: 1007 20AWG; Externl diameter: 1.8*100mm combined wire of white & red color | |
| Standard quantity of a series | 20 pcs | |
| Max quantity of a series | 20 pcs | |
| Physical Parameter | Diamension | 36*36*6mm |
| Housing Color | White | |
| Housing Material | AlGalnp | |
| Affixing way | FB1610PE 3M double-sided adhersive tape & 2 crews or rivets with diameter of 3.0-4.0 mm | |
| Weight | 12g | |
| Enviromental Parameter | Working Temperature | -40°F- 122°F (-40°-50° C) |
| Storage Temperature | -58°F- 140°F (-50°-60° C) | |
| Operating Humidity | 10% - 95%, non-condensing | |
| IP Rate | IP65 waterproof | |
| Packing | Qty/ctn | 100pcs/bag; 1000pcs/ctn |
| Ctn Size | 50x25x27cm | |
| G.W./Ctn | 12.7KG | |
| CBM/Ctn | 0.034m3 | |
Product Details
Relative Model:
Installation:
Certification:
Application Project:
