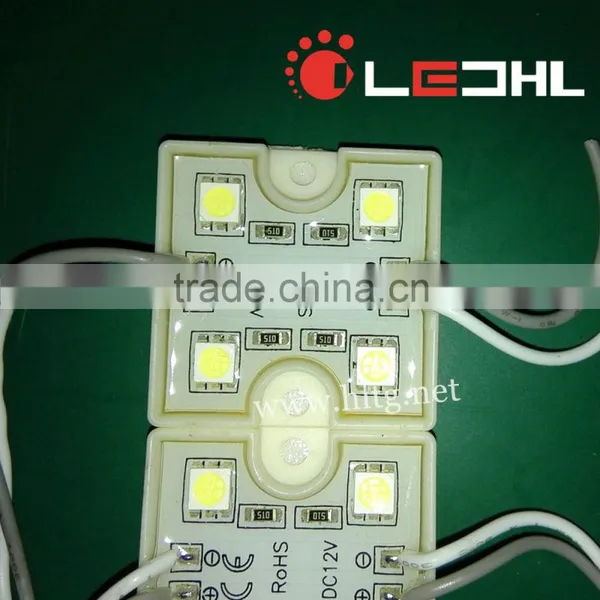

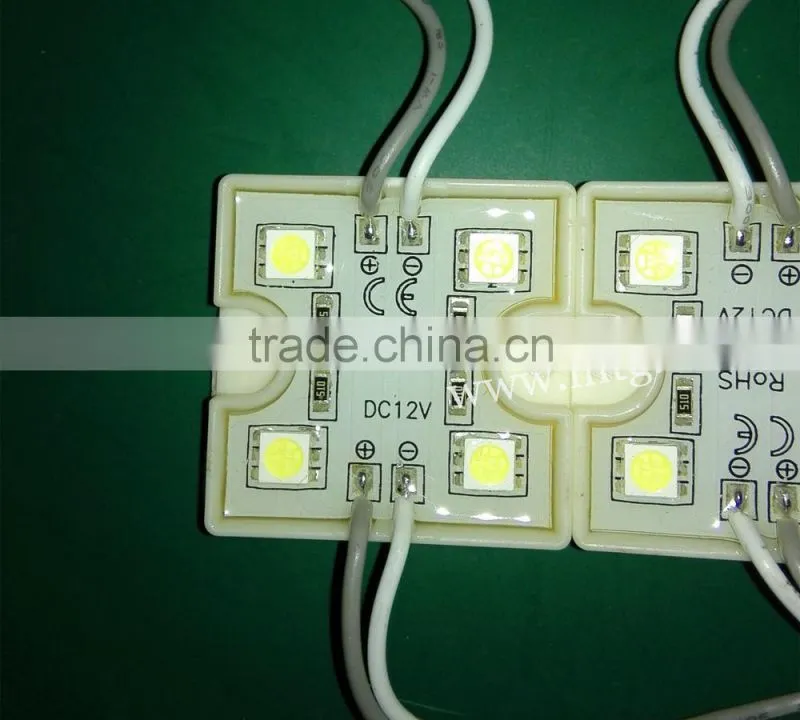

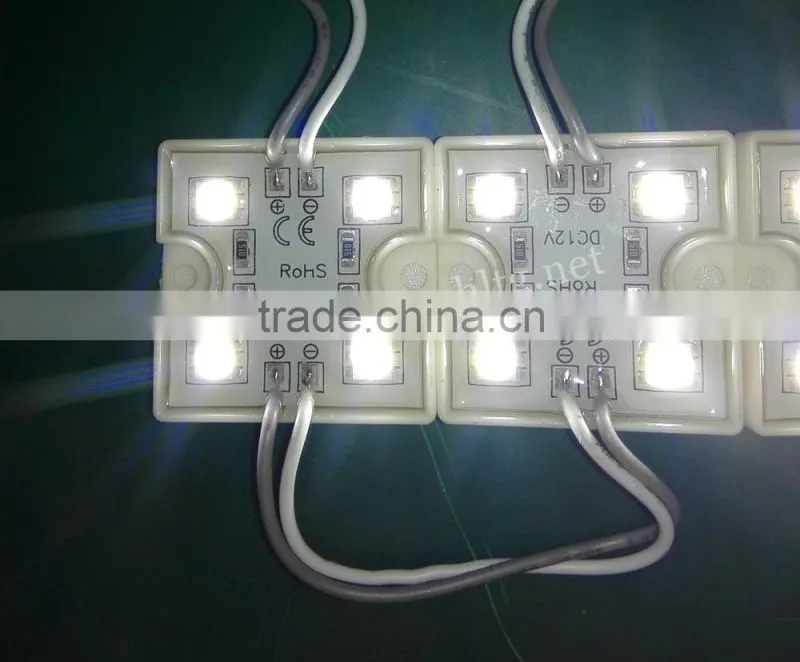

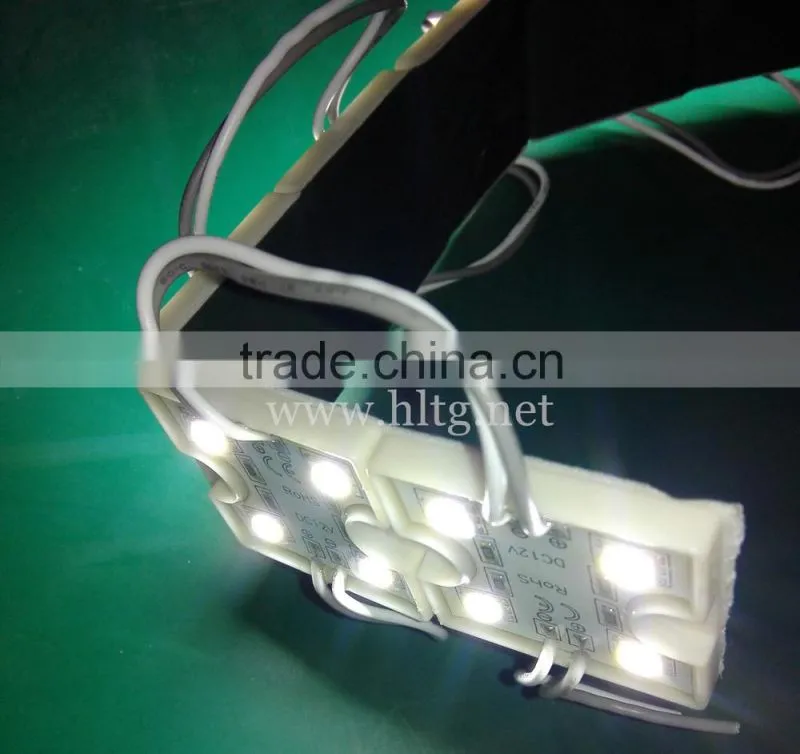

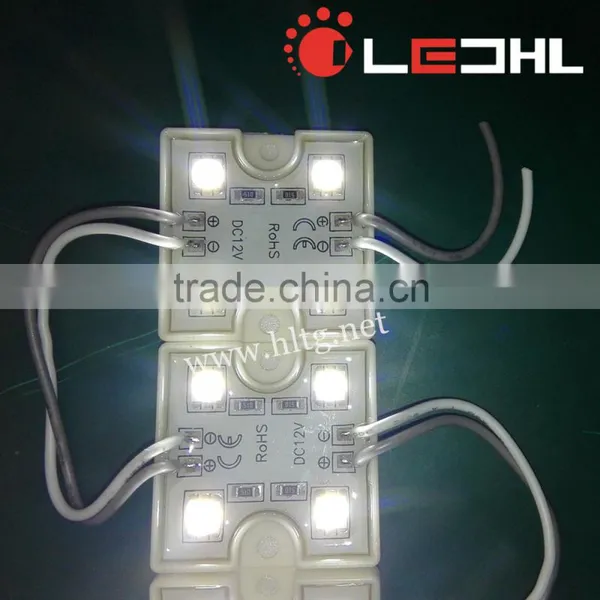

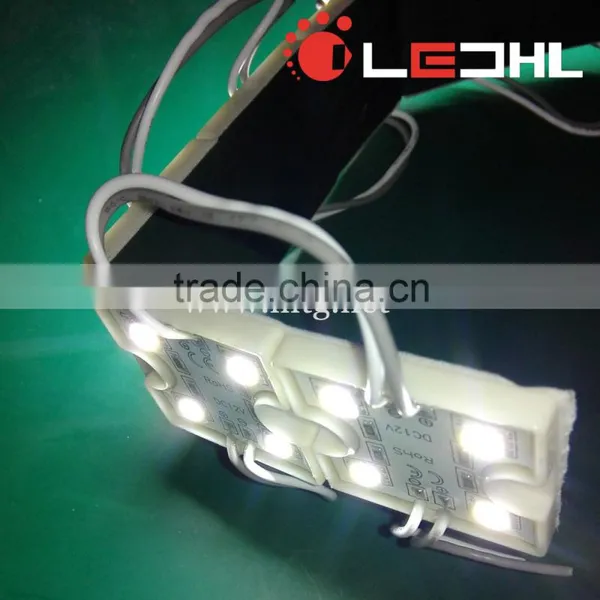

Help Center4LEDs SMD5050 0.96W LED Module Shenzhen Factory Module LED Light With CE-RoHS Certificate
Related Products
-
SMD 5630 / 5730 LED Module 120 Degree for Back Light Channel Letter IP65 Outdoor Warm White, White, Cool White Led Module LightUS$ 0.11 - 0.11MOQ: 1000 Pieces -
Yellow Color High Brightness Flexible Led Strip DC12V With 3M Adhersive Easy Install SMD5050 300leds Strip LED LightUS$ 1.99 - 1.99MOQ: 500 Meters
-
SMD 5050 3pcs LED Module 0.72W IP65 for Outdoor Channel Letter Sign Board Pixel Led Module Light With 5 Years WarrantyUS$ 0.26 - 0.26MOQ: 1000 Pieces
-
3528 240leds SMD LED Strip Light Single Row DC Strip Led With Double Side PCBUS$ 3.92 - 3.92MOQ: 500 Meters
-
S Shaped 2835 SMD LED Strip DC12V Flexible Easy Install Bentable Strip Led Quality ChoiceUS$ 2.12 - 2.12MOQ: 500 Meters
Product Introduction
(1) 0.24W/piece
(2) Use Taiwan SMD5050 original brand chipset
(3) Cool White: 6000-6500K
(4) Consumption: 0.96W
(5) DC12V input
(6) IP level: IP65
(7) 20pcs as a series
(8) Working temperature : -20~50 degree
(9) Packing : 100pcs / bag , 10bags / Carton
(10) Color: Warmwhite, White, Cool white,Red, Yellow, Green, Blue supported
(11) Offer ODM service and also the high brightness customrized strip for the project
(12) Easy installation : self adhersive
(13) Extended life : more than 50,000 hours
(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon
(15) Safe application : Low voltage DC12V, safe and stable, free maitenance
Product Specification
Model: HL-MB15
LED Type: 4LEDs SMD5050 Epistar
LED Quantity: 4LEDs
Emitting Color: Warmwhite, White, Cool white,Red, Yellow, Green, Blue
Input Voltage: DC12V
Beam Angle: 120°
IP Level: IP65
Warranty: 2-3 years
Certification: CE-RoHS
Electrial Characteristics: Current Dissipation: 80mA
Power Consumption: 0.96W
Standard quantity of a series: 20pcs/series
Working Input Voltage: DC12V
Construction: LED Source: 4xSMD5050 Epistar
PCB: FR-4 double-layered
Housing Material: AlGalnP
Lead Wire: AWG18
3M Adhesive tapes
Thermal: Working Temperature: -20°-50°C
Storage Temperature: -30°-60°C
Lumen Efficiency(lm): Red -- 16nm ( 620-625nm )
Green -- 40lm (520-530nm)
Blue -- 10lm (465-470nm)
Yellow -- 40lm ( 585-595nm )
Warmwhite -- 50lm (3000-3200K)
White -- 60lm (6000-6500K)
Coolwhite -- 60lm (8000-9000K)
Paking Information: 3000pcs/ctn, 52x34x32cm, 18.64KG/ctn
Application: Large Scale channel letters
Flex faced cabinet illumination
Duplex signage light illumination
Signage and illuminationed advertising with depth 60-200mm
