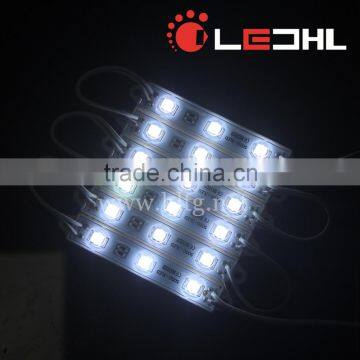

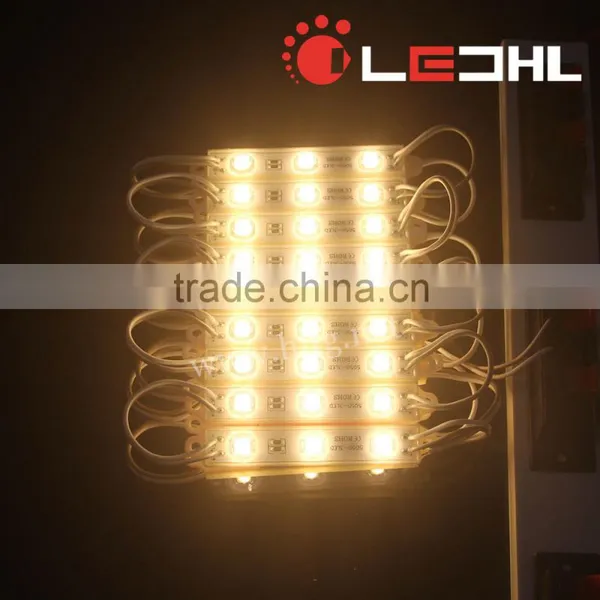

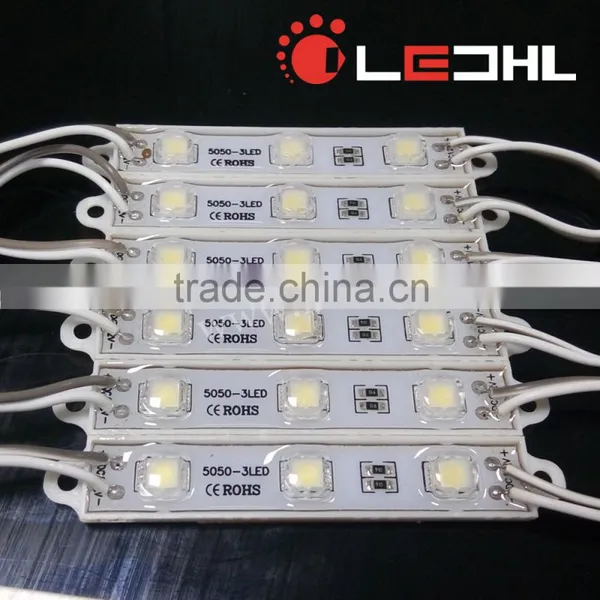

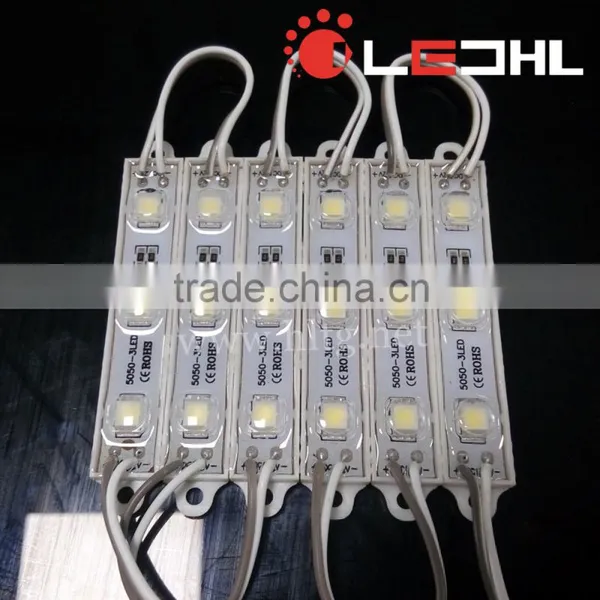

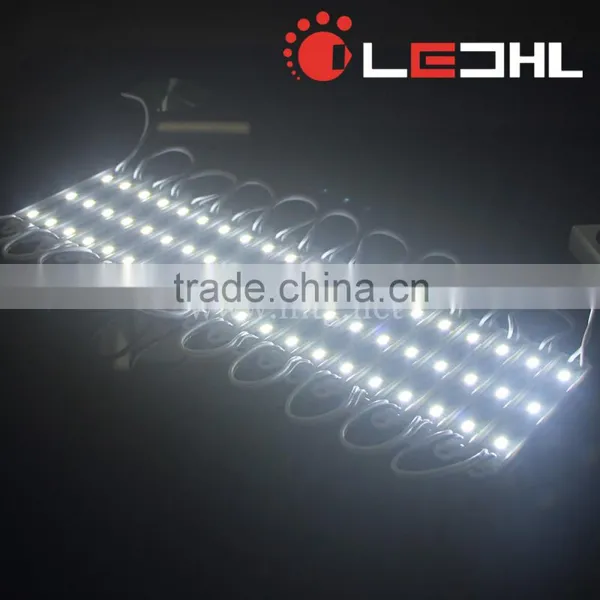

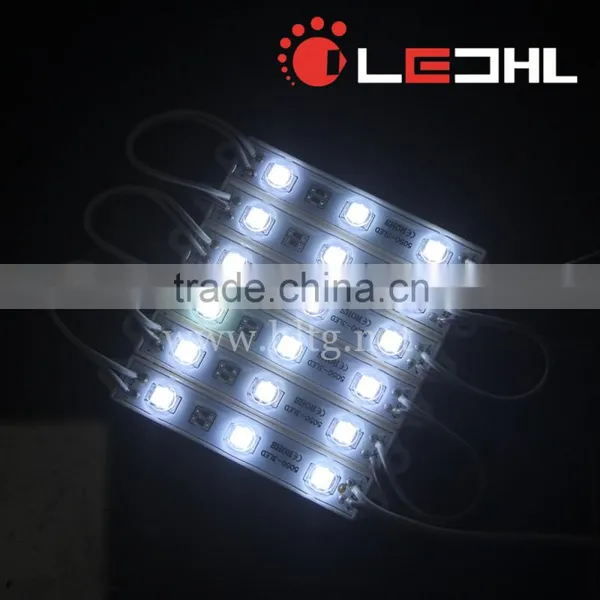

Help CenterDC12V SMD5050 LED Modules 0.72W 3leds With 160 Degree Lens
Related Products
-
DC12V 4LEDs SMD5730/SMD5630 LED Module With IP65 WaterproofUS$ 0.19 - 0.19MOQ: 1000 Pieces -
CE Rohs Approved 0.96w 4pcs LED 5050 Module DC12V Outdoor Waterproof Sign Lighting LedUS$ 0.19 - 0.19MOQ: 1000 Pieces
-
DC12V 1.2W White 5LEDs 5050 SMD Led Module Waterproof 80lm for Advertising Quality ChoiceUS$ 0.21 - 0.21MOQ: 1000 Pieces
-
DC12V 1.44W 4LEDs Waterproof ce Rohs SMD 5050 RGB Led Module for Channel LettersUS$ 0.23 - 0.23MOQ: 1000 Pieces
-
4LEDs SMD5050 0.96W LED Module Shenzhen Factory Module LED Light With CE-RoHS CertificateUS$ 0.19 - 0.19MOQ: 1000 Pieces
Product Introduction
(1) 0.24W/piece
(2) Use Taiwan SMD5050 original brand chipset
(3) Color: Red, Yellow, Blue, Green, Warm white, White, Cool white
(4) Consumption: 0.72W
(5) DC12V input
(6) IP level: IP65
(7) 20pcs as a series
(8) Working temperature : -20~50 degree
(9) Packing : 100pcs / bag , 10bags / Carton
(10) Warranty: 2-3 years warranty for whole led module
(11) Offer ODM service and also the high brightness customrized strip for the project
(12) Easy installation : self adhersive
(13) Extended life : more than 50,000 hours
(14) Evironmental friendly : with CE / RoHS certificate, more than 60% more energy efficient than Neon
(15) Safe application : Low voltage DC12V, safe and stable, free maitenance
Product Specification
| Model | HL-MB12 | ||||||
| LED Type | SMD5050 3LEDs | ||||||
| Warranty (years) |
2-3 | ||||||
| Emitting Color |
Red, Green, Blue, Yellow Warm white 3000-3200K / white 6000-6500K / cool white 8000-10000K |
||||||
| Beam Angle (°) | 160 | ||||||
| Lumen(LM) | Red | Green | Blue | Yellow | WW | W | CW |
| 12lm | 30lm | 7.5lm | 10.5lm | 50lm | 60lm | 60lm | |
| Wave Length (nm/Kelvin) | 620-625nm | 520-530nm | 465-470nm | 585-595nm | 3000-3200K | 6000-6500K | 8000-10000K |
| Chip Qty (chips) | 3 | ||||||
| LED Chip Life (H) | 50,000 | ||||||
|
Electrical Parameter |
Working Input Voltage (V) | DC12V | |||||
| LED Power (W) | 0.72W | ||||||
| Working Input Current (mA) | 60mA | ||||||
| Features of Connection and Series | Interface: 1007 20AWG; Externl diameter: 1.8*100mm combined wire of white & red color | ||||||
| Standard quantity of a series | 20 pcs | ||||||
| Max quantity of a series | 20 pcs | ||||||
| Physical Parameter | Diamension | 78*15*6mm | |||||
| Housing Color | White | ||||||
| Housing Material | AlGalnP | ||||||
| Affixing way | FB1610PE 3M double-sided adhersive tape & 2 crews or rivets with diameter of 3.0-4.0 mm | ||||||
| Weight | 12g | ||||||
| Enviromental Parameter | Working Temperature | -40°F- 122°F (-40°-50° C) | |||||
| Storage Temperature | -58°F- 140°F (-50°-60° C) | ||||||
| Operating Humidity | 10% - 95%, non-condensing | ||||||
| IP Rate | IP65 waterproof | ||||||
| Packing | Qty/ctn | 100pcs/bag; 1000pcs/ctn | |||||
| Ctn Size | 50x25x27cm | ||||||
| G.W./Ctn | 12.7KG | ||||||
| CBM/Ctn | 0.034m3 | ||||||

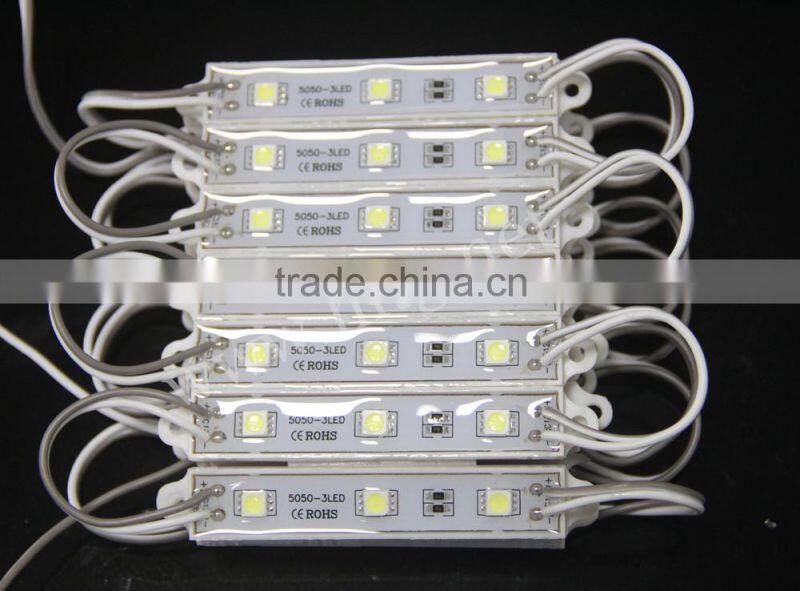

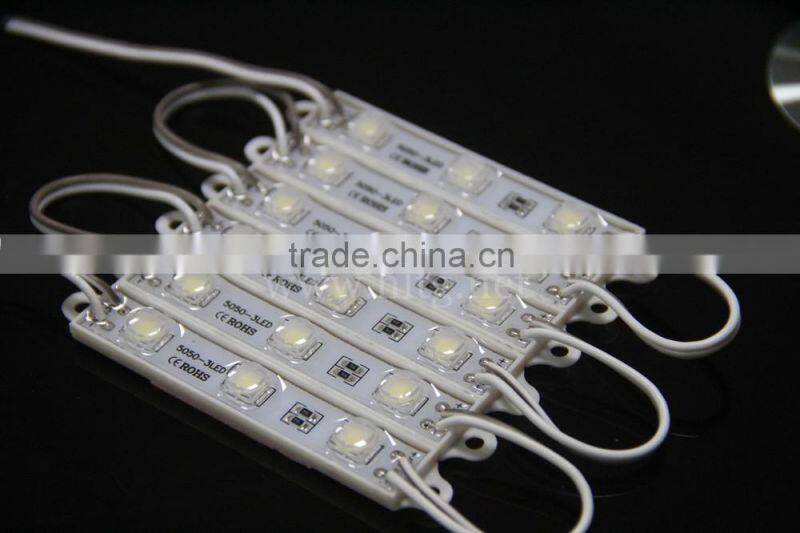

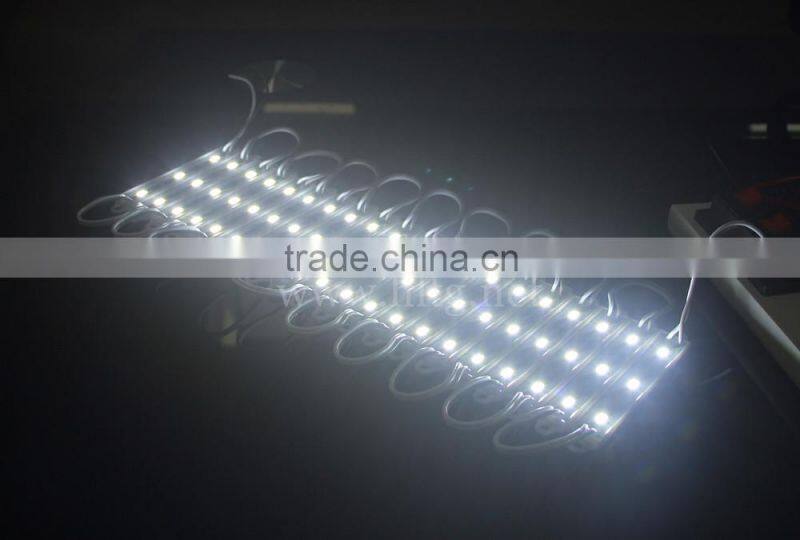

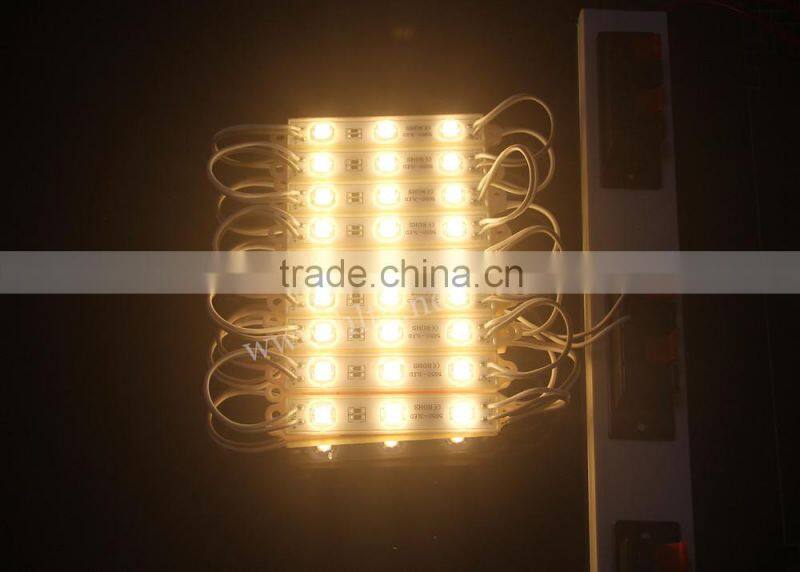

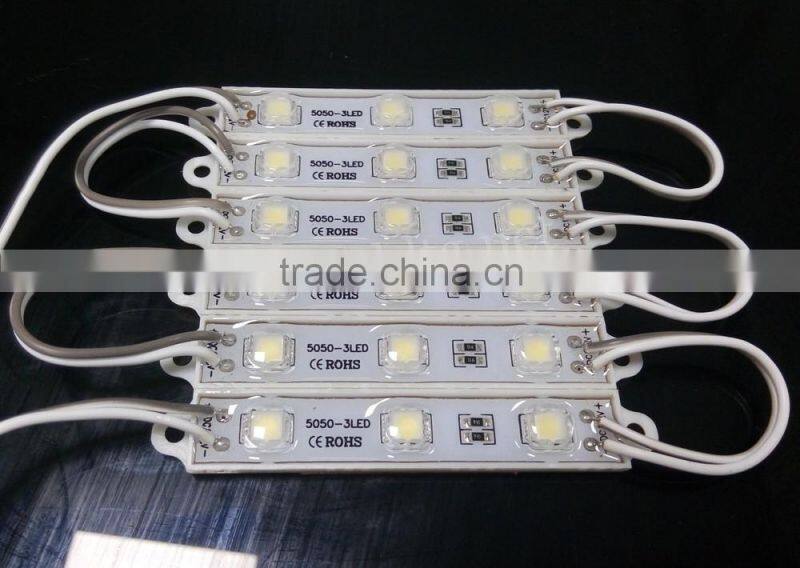

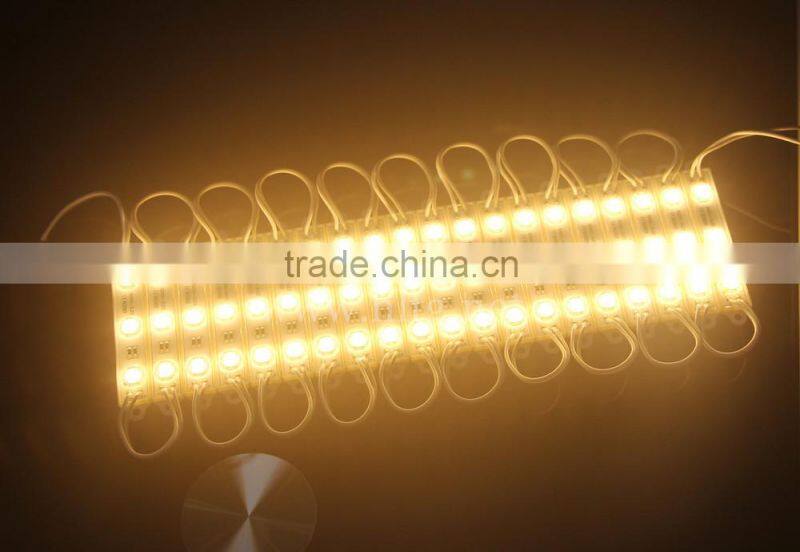

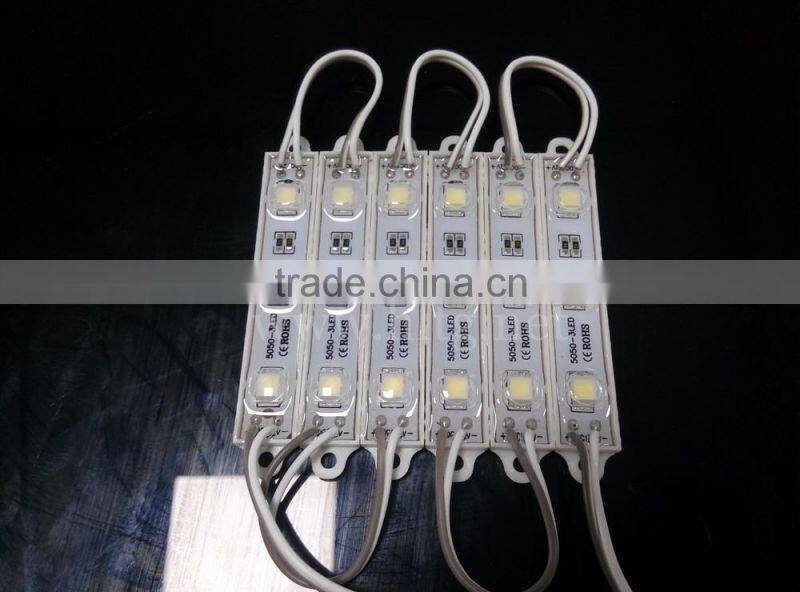

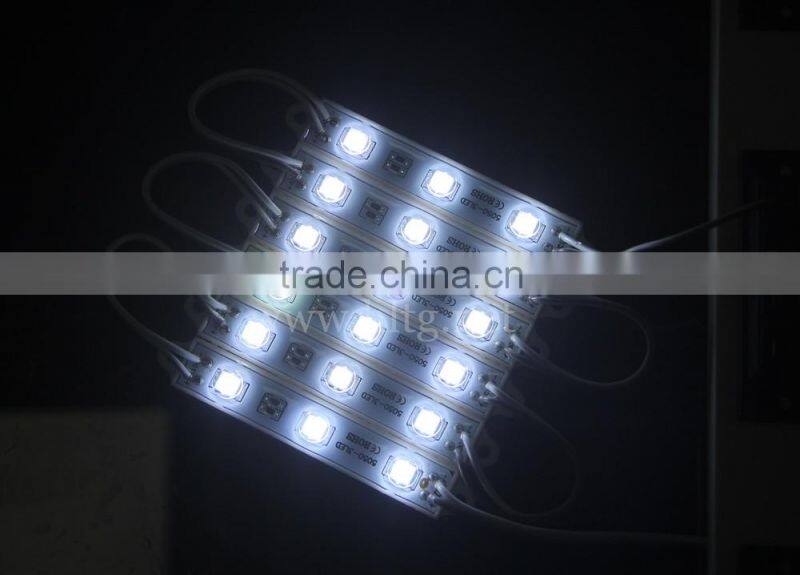

Product Details
2015 HOT SELL!!! LED Module with 3LEDs 0.72W for back light channel letter.
High popular and hot sell SMD5050 LED Module with 160° beam angle for back light letter sign or back light lighting box. Indoor and outdoor adversiting light box and various sign board. Specially for PROJECT!
1. Easy to install, 3M adhesive in the back and screw hole for fixed
2. Offer ODM service and also the high brightness customrized module for PROJECT
3. CE RoHS Approval with high quality
4. Low Voltage DC12V for safty
5. Power Supply / Controller are available for selling
6. 5 years warranty for all LED Modules
7. Cooperate with Epistar, Osram, Cree, Samsung etc. chip brand
Product Details

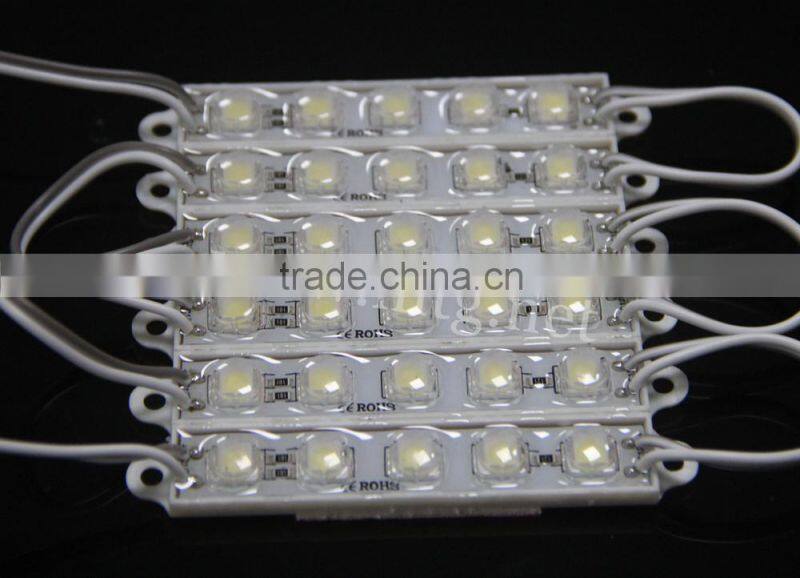

Relative Models:

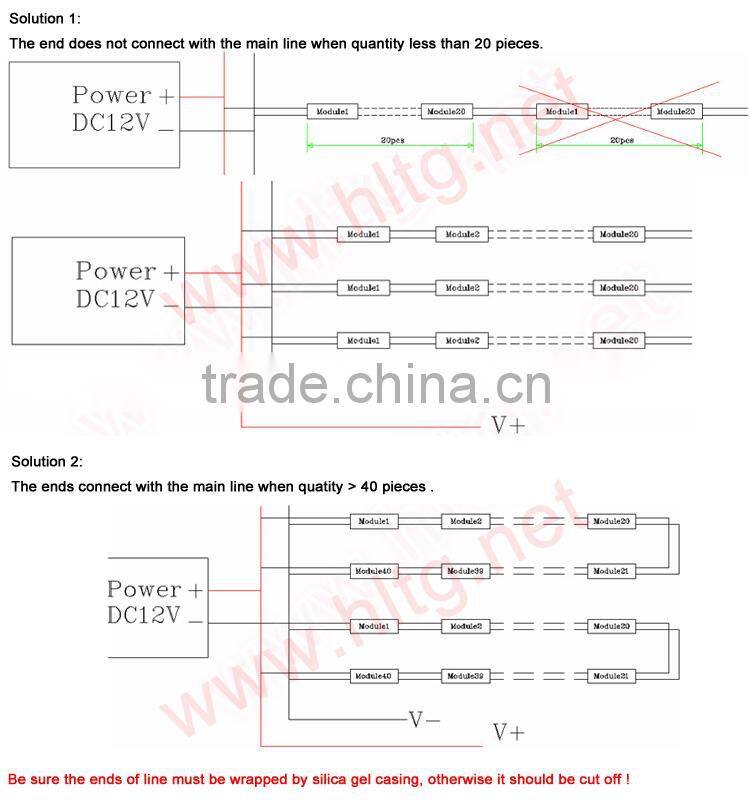

Installation:

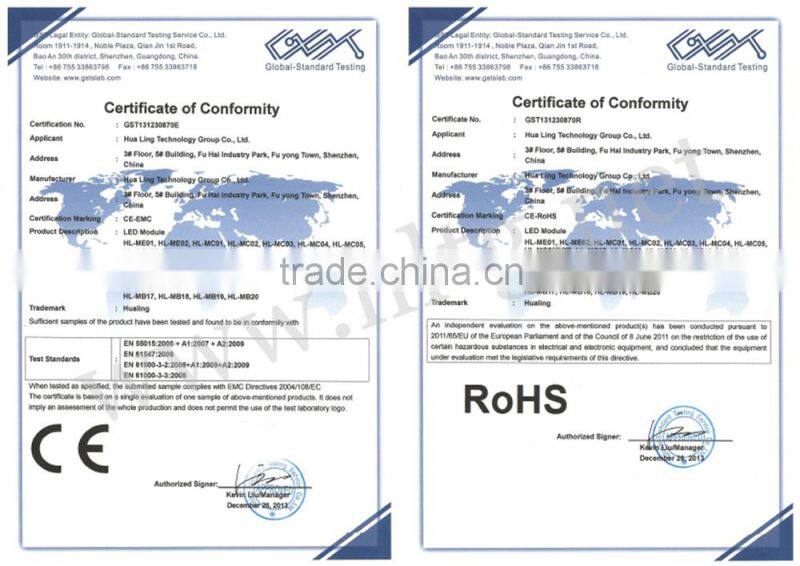

Certification:
Application Project:

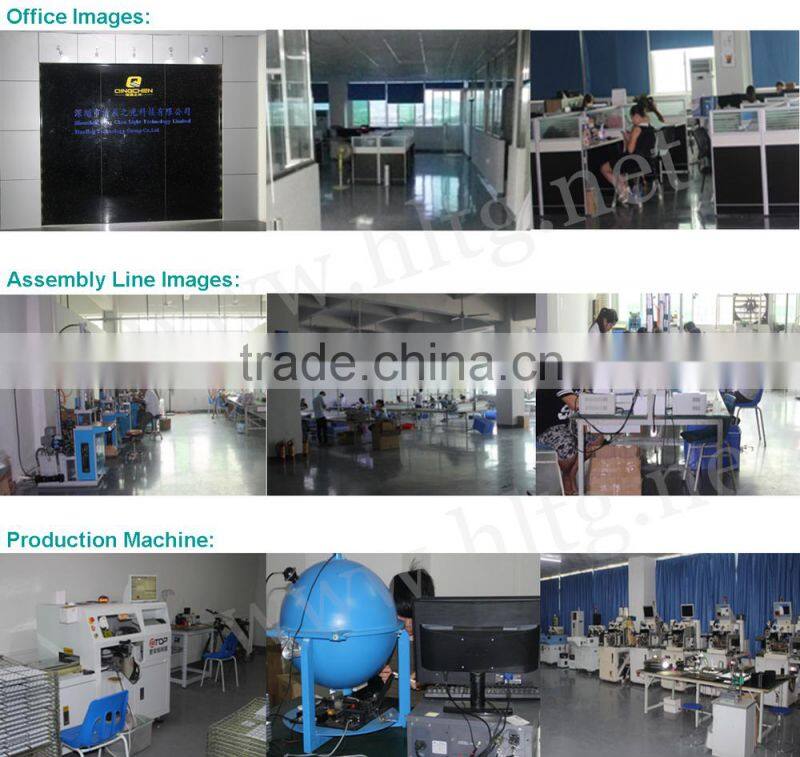

Company Profile:
