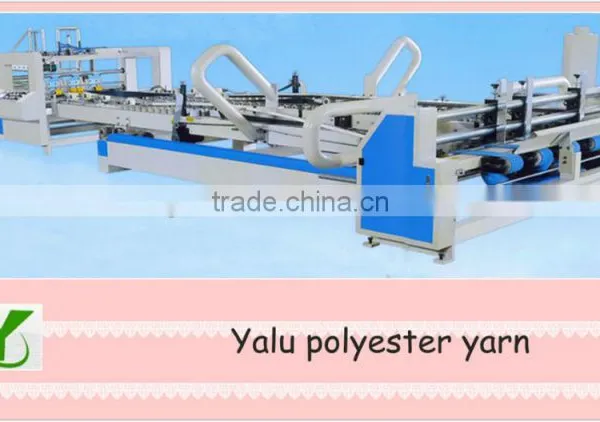

Help CenterAS Series Automatic Sticky Box Machine Type 2
Related Products
-
BFY Thin Knife Cutting Creasing MachineUS$ 8,000 - 8,500MOQ: 1 Set -
Single Face Corrugated Board Production LineUS$ 8,000 - 8,500MOQ: 1 Set
-
Box PressUS$ 2,000 - 2,500MOQ: 1 Set
-
MQK Rotary Type Slot Die Cutting Machine for Box Making MachineUS$ 8,000 - 8,500MOQ: 1 Set
-
Large Vertical Roller Printing Slotting MachineUS$ 8,000 - 8,500MOQ: 1 Set
Feeding section
1.Vacuum suction feeding to feed warping paperboard easily.
2.Quality electromagnetic clutch and brake adopted, feeding section controlled independent ,operation easily.
3.Scorer wheel is adjustable, suit for 2-8 mm thick paperboard.
4.Second creasing structure can impress again the paperboard which was not creased well.
Glue &Folding section
1.Simple structure and high reliability , glue quality adjustable, cleaning easily .
2.Stainless steel glue wheel adopted, long life and saving glue cost
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device ;
Counter &stacker section
1.Stacking and counting are simple and reliable ;
2.Digital control , operation easily and reliable .No-stop put in data and automatic counting .
3.With rectification function
4.Paperboard counting and put out by pneumatic, stable and quick .
Description & Feature:
1.TB series Automatic folder gluer machine consists of three sections : vacuum feeding section ,glue& folding section, counter &stacker section.
2. Frequency conversion motor with quality inverter adjust speed.
3.PLC& Tounch control system for easy operation and running stable . Average speed 150 sheets/min. Energy Conservation and High Speed, Saving Labor Cost .
Feeding section
1.Vacuum suction feeding to feed warping paperboard easily.
2.Quality electromagnetic clutch and brake adopted, feeding section controlled independent ,operation easily.
3.Scorer wheel is adjustable, suit for 2-8 mm thick paperboard.
4.Second creasing structure can impress again the paperboard which was not creased well.

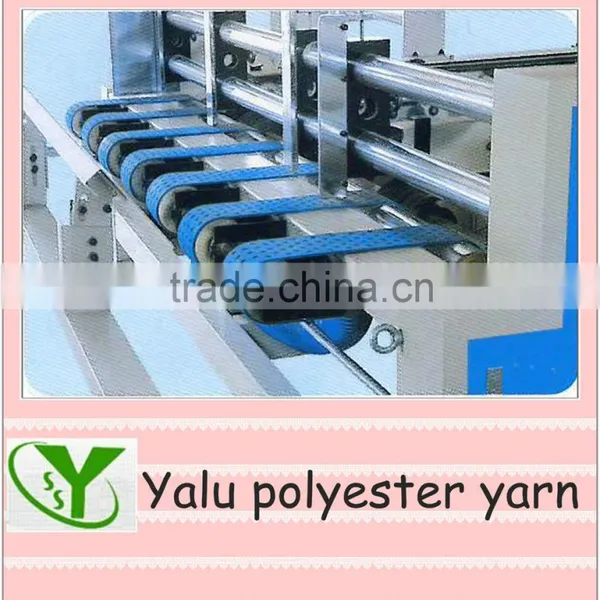

Glue &Folding section
1.Simple structure and high reliability , glue quality adjustable, cleaning easily .
2.Stainless steel glue wheel adopted, long life and saving glue cost
3.Imported quality rubber belt adopted ,automatic folding
4.With paperboard rectify device and creasing rectify device ;

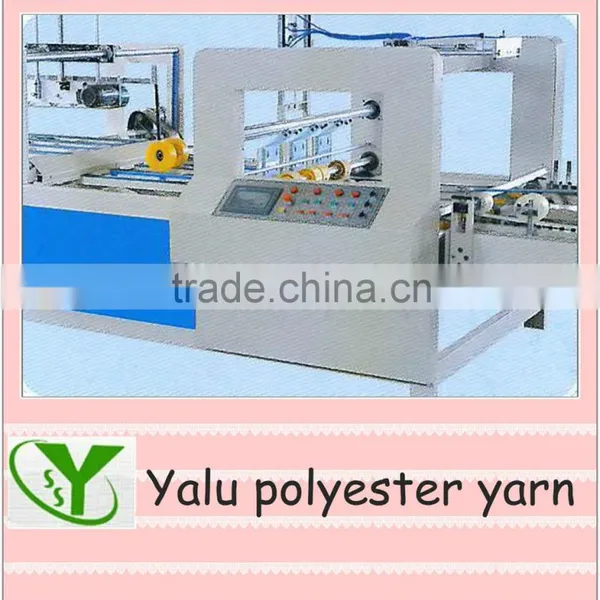

Counter &stacker section
1.Stacking and counting are simple and reliable ;
2.Digital control , operation easily and reliable .No-stop put in data and automatic counting .
3.With rectification function
4.Paperboard counting and put out by pneumatic, stable and quick .
Description & Feature:
1.TB series Automatic folder gluer machine consists of three sections : vacuum feeding section ,glue& folding section, counter &stacker section.
2. Frequency conversion motor with quality inverter adjust speed.
3.PLC& Tounch control system for easy operation and running stable . Average speed 150 sheets/min . Energy Conservation and High Speed, Saving Labor Cost .
technical parameter
Model |
AS-2000 |
AS-2400 |
AS-2800 |
Max.cardboard |
1000*2000 |
1000*2400 |
1200*2800 |
Min.cardboard |
300*600 |
300*800 |
300*800 |
Installation area |
13500mm*2400mm |
13500mm*2800mm |
13500mm*3000mm |
power |
8.5kw |
11.5kw |
11.5kw |
