Trade assurance blister pack sealing machine
QO-**KWDZY-J:
I. Overview
Automatic disc type high frequency fusing machine, take the product with mechanical automatic high frequency high frequency welding machine is mainly used need to be synchronized at the same time cutting the product processing, the machine is equipped with automatic dial, it can automatically rotate continuously welded, and take the product with a robot automatic production, raw materials can be done manually placed after. Working principle is to use high-frequency machine high frequency electromagnetic flow penetration-promoting molecules, finally fused together, and then through the first welding machine is equipped with some of the pressure device and cut off. Because it is at the same time to complete, so called high frequency synchronous fusing machine. Also known as high frequency fusing machine, fusing machine, high frequency synchronous cutting machine, high frequency cutting machine. Kai Austrian company production of automatic disc type high frequency fusing machine, take the product with mechanical automatic high frequency machine is mainly for mass production, the special needs of the provincial labor needs and the development of high-speed production, can effectively increase production to save resources.
Second, the automatic disc high frequency fusing machine, take the product with mechanical characteristics of automated high-frequency machines:
1, the machine automatically rotating disc continuous production, artificial discharge, the robot automatically remove the product.
2. This machine is high frequency synchronous fusing machine, synchronized cut after molding can be welded products.
2, the machine uses low-loss coaxial European standard high-frequency resonators, high frequency electrical power output, in the most rapid time to make welding products, and greatly increase production.
4, high frequency fusing machine with special needs tower of high frequency fusing molds, in order to achieve the effect of welding cutting, fusing mold are fundamentally different Kai Austrian company's high frequency fusing mold with other companies in general, that is fusing machine mold mold more than ordinary fuse is durable, no need to replace the bottom die, never worn. Fuse Die sustainable use of about tens of thousands of times.
5, automatic rotary high frequency fusing machine with precision divider device, using Taiwan's motor. Automatic rotation, 3-6 stations to choose from, work more efficiently. Four-native job rotation, precise positioning stations. Robot automatic dispensing, synchronous fusing function.
6, fusing machine cutting pressure 1--30 tons adjustable, QO-5557 High Frequency spark protection system, high sensitivity, high frequency mold to prevent burning. And a high-frequency frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum, to avoid radio interference. And will avoid improper operation by the frequency drift caused by the electrode and material damage to a minimum while warning lights are illuminated warning.
Third, automatic disc high frequency fusing machine, take the product with mechanical automatic High Frequency Usage:

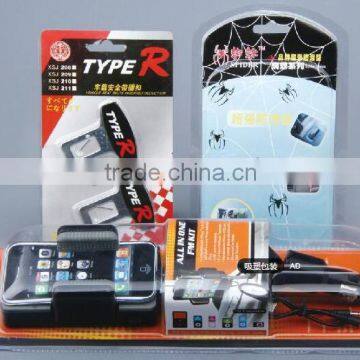

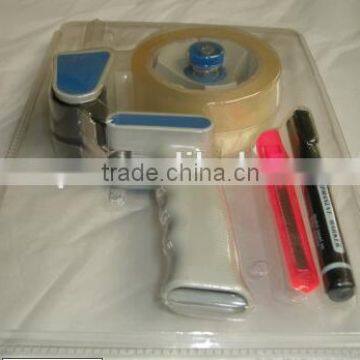

Mainly used for processing high-frequency welding needs to be synchronized at the same time cutting the working principle is the use of high-frequency machine high frequency welding through the first machine with some pressure device and cut off. Because it is at the same time to complete, so called high frequency synchronous fusing machine. Also known as high frequency fusing machine, fusing machine, high frequency synchronous cutting machine, high frequency cutting machine. Mainly applicable to APET, PETG, GAG environmentally friendly materials double-sided blister sealing packaging, blister card packaging paper, toothbrush sealed packaging, EVA cloth to leather, leather, OPP, PU material welding and fusing.
Fourth, automatic disc high frequency fusing machine, take the technical specifications of products with mechanical automatic High Frequency Machine:
Model |
QO-5KWDZY-J |
QO-8KWDZY-J |
QO-12KWDZY-J |
QO-15KWDZY-J |
QO-25KWDZY-J |
Output Power of Generator |
5000W |
8000W |
10000W |
15000W |
25000W |
Anti-Spark System |
NL-5557 High sensitive anti-spark system(Optional) |
||||
Voltage |
3P AC 380V/220V 50Hz-60HZ or customize |
||||
Frequency |
27.12MHz +/- 0,6 % |
13.56MHz +/- 0,6 % |
|||
Input power |
8KVA |
15KVA |
20KVA |
25KVA |
35KVA |
Rectifier |
SILICON DIODE |
|
|||
Oscillation tube |
7T85RB |
7T69RB |
E3130 |
8T85RB |
8T25RA |
Max pressure |
350KGS |
500kg |
800kg |
1000kg |
1500kg |
Operation mode |
Manual or motorized |
||||
Max gap of electrodes |
200mm |
||||
Activities size |
100mm |
||||
Upper Electrode (L*W) |
350*200mm |
500*300mm |
600*400mm |
700*500mm |
800*600mm |
Size of Work Table (L*W) |
450*300mm |
600*400mm |
700*500mm |
800*600mm |
900*700mm |
Welding time |
0.01~9.99s adjustable |
||||
Net weight |
5-10T |
10-15T |
15-20T |
20-25T |
25-30T |
Welcome to buy QIAO automatic disc type high frequency fusing machine, take the product with mechanical automatic high frequency machine, a variety of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice!Welcome to buy QIAO Austrian high frequency advertising cloth stitching machine, all kinds of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice! Welcome tent cloth hanging high frequency welding machine, all kinds of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice!Welcome to buyQIAO manual push reel high frequency synchronous fusing machine, a variety of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice!Welcome to buy QIAO automatic disc high frequency welding machines, automatic high frequency machine, a variety of equipment can also be customized according to customer requirements! Because improvement needs, specifications and price without notice
