Pure Silver Trimetal Contact Rivets With High Electrical Appoved SGS
- ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Saijin | |
| Model Number | Drawing |
Product Description

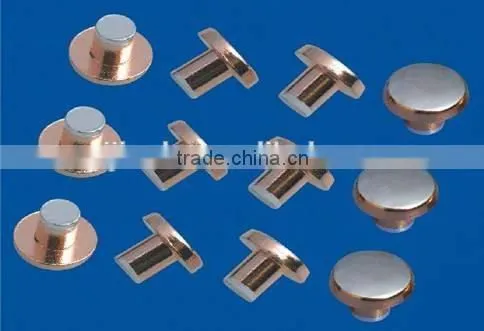

Pure silver trimetal contact rivets with high electrical appoved SGS
product description
Tree composite rivet is processed by cold heading,usd in solid rivet contact which is silver alloy and double-sided.
main materials
Ag,Agcdo,FAg,AgSnO2,AgCu,AgZnO,ect.
main application
relays,contactors,micro switches,button switches,wall switches,ect.
specifications of trimetal rivets
items | Basic Diameter/mm | Limit Deviation/mm | ||||
Head Diameter/mm | 2.0-3.5 | 3.5-4.0 | 4.0-5.0 | 5.0-6.0 | 6.0-9.0 | ±0.10 |
Head Thickness/mm | 0.4-1.0 | 0.9-1.2 | 0.9-1.2 | 1.0-1.5 | 1.5-2.0 | ±0.05 |
Head Layer/mm | 0.15-0.4 | 0.3-0.5 | 0.35-0.70 | 0.35-0.70 | 0.40-0.80 | ±0.05 |
Shank Diameter/mm | 1.5-2.0 | 2.0-2.5 | 2.5-3.0 | 3.0-4.0 | 4.0-7.0 | 0/-0.10 |
Shank Length/mm | 1.0-2.0 | 1.2-2.0 | 1.5-3.0 | 2.0-5.0 | 2.0-4.0 | +0.10/0 |
Shank Layer/mm | 0.3-0.5 | 0.4-0.6 | 0.5-1.0 | 0.8-2.0 | 1.0-2.0 | ±0.05 |
Spheric Radius/mm | 4-10 | 6-12 | 8-15 | 10-20 | 10-20 | ±2.0 |
Demoulding Angle | 9 | 9 | 11 | 11 | 11 | ±2.0 |
Packaging & Delivery
| Packaging Details: | Inner package: vaccum plastic bag; Outside package:carton 28cmx14cmx22cm |
| Delivery Detail: | within 25 days |

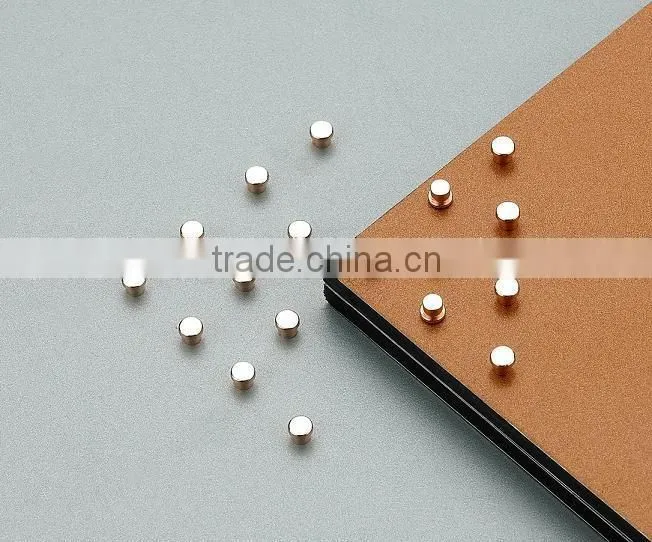

more picture details
Thank you for clicking our product, And if this product couldn’t meet your requirements or if you have any other needs, Please visit our website ( ), Also you can click the trademanage to contact us.
