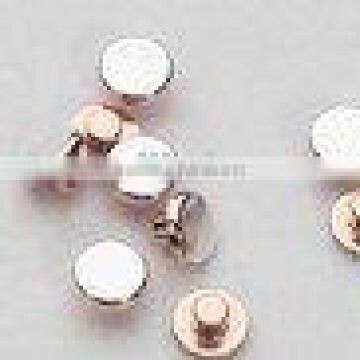

AgSnO2 Environment-protecting Contact
- 45 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Saijin |
Product Description
Specifications
1.Material: AgSnO2.High quality with competitive price
3.Certification:Rohs,SGS
4.MOQ:5000 pcs
AgSnO2 Contact:
Features:
(1) AgSnO2 is the ideal material of replacing AgCdO and has excellent properties of contacts
(2) AgSnO2 has higher thermal stability
(3) AgSnO2 has higher resistance against welding and erosion than AgCdO material
(4) Non-poisonous. So it is a new and environment-friendly material used in contact
(5) For AgSnO2 contact material, the contact resistance can be controlled within the limited range by putting in a small amount of additive of special metal-oxide
(6) Contact materials produced by powder metallurgy processing method have higher resistance against arc erosion and less arc bumming than those produced by oxidation processing method
Chinese National Standard of Bemetal Rivets
Item | Head Diameter D mm | Head Thickness T mm | Face composite layer Thickness S mm | Tail Diameter d mm | Tail Length L mm |
R mm | Demoulding Angle |
Limit Deviation | ±0.1 | ±0.05 | S≤0.4±0.060 S0.4±0.60 | -0.02 -0.10 | +0.150 | R≤6±1 R>6±2 | ±2 |
Basic Dimension | 2.5 | 0.6,0.8,1.0 | 0.3-0.4 | 1.2,1.5 |
1-2 | 4,6 | 9,10,11,12 |
3.0 | 0.8,1.0,1.2 |
0.35-0.50 | 1.5 | 6,8 | |||
3.5 | 1.5,2.0 |
1-3.0 | |||||
4.0 | 1.0,1.2,1.5 | 2.0 | 8,10 | ||||
4.5 | 2.0,2.5 | ||||||
10,15 | |||||||
5.0 | 1.0,1.2 1.5,2.0 |
0.40-0.60 | 2.5 | ||||
5.5 | 2.5,3.0 | 15,20 | |||||
6.0 | 3.0 | ||||||
6.5 |
1.2 1.5 2.0 |
0.50-0.70 | 3.0,3.5 | ||||
20,25 | |||||||
3.5,4.0 | |||||||
7.0 | |||||||
8.0 |
