engine cylinder head ultrasonic cleaners
cylinder head ultrasonic cleaners Dimension characteristics:
Tank dimensions: |
1450*720*730 mm |
Outline dimensions: |
1650*1190*1100mm |
Ultrasonic Power: |
7.2 kw |
Heating |
15 kw |
Voltage |
380v or 220v |
Ultrasonic direction: |
three sides |
Have dregs tank or not: |
have |
Have overflow device or not: |
have |
Approves: |
Heavy trucks and project machine |
Series of Ultrasonic cleaners
Model NO. |
Tank dimension (mm) |
Ultrasonic power(k w) |
Ultrasonic direction |
Heat power (k w ) |
Voltage |
Ultrasonic Frequencies(kHz) |
||
length |
width |
depth |
||||||
B k-1800 |
600 |
480 |
450 |
1.8 |
3 sides |
4 |
220v or 380v |
28/40 |
B k-2400 |
750 |
550 |
480 |
2.8 |
3 sides |
6 |
220v or 380v |
28/40 |
B K-3600 |
1000 |
550 |
560 |
3.6 |
3 sides |
9 |
220v or 380v |
28/40 |
B K-4800 |
1200 |
650 |
650 |
5.2 |
3 sides |
12 |
220v or 380v |
28/40 |
B K-6000 |
1450 |
720 |
730 |
7.2 |
3 sides |
15 |
220v or 380v |
28/40 |
B K-7200 |
1500 |
800 |
800 |
8 |
3 sides |
18 |
220V or 380v |
28/40 |
B K-10000 |
1700 |
900 |
800 |
10.8 |
3 sides |
20 |
220v or 380v |
28/40 |
B K-12000 |
2200 |
1200 |
1000 |
21.6 |
3 sides |
32 |
220v or 380v |
28/40 |
1.control of power
The industry is the first to use full-bridge IGBT using high-power integrated power control module,the module using Germany’s Siemens .The module can resist above 80°C and high pressure.
2.Transducer part
The original German CeramTec piezoelectric ceramic chip,high-precision CNC machine equipment.

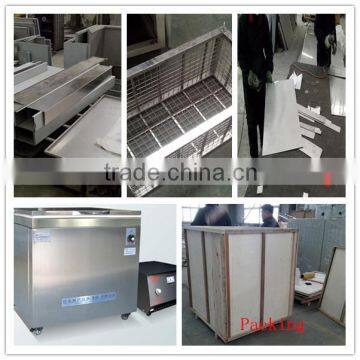

3.Sheet metal processing
Well equipped; advanced Sheet metal art,high-quality research and development team and scientific management tools.
4.feather
Environmental and future proof strategy environmentally friendly and cost effective cleaning designed to use a minimum amount of cleaning chemicals and energy to reduce wastes
Industry |
Cleaning objects |
jewelry |
Jewelry, diamond, gold, silver products, gemstones, Chains, Coins Intricate ,Settings etc |
machinery |
Moulds, precision parts, pressing parts, camera parts, bearing, hardware tools,Carburetor, Castings ,Fuel Injectors ,Machined Parts, Stamped Parts, Switche etc |
electronics |
PC board, electronic parts, TV parts, computer parts, Capacitors , Ceramic Substrates, Packaging Components, Quartz Crystals, SMDs |
Auto industry |
engine parts, gear box, shock absorber, auto nozzle, cylinder, valve, etc |
Dental&Medical |
dental tools, medical tools, injector, surgery tools, dropper, glass container, Syringe Parts ,etc |
Plating& painting |
polishing parts, SUS cutter, tableware, plating, etc |
Optical& watch maker |
optical lens, eyeglass, sunglass, metal, , watch band, watch cover, watch hand ,camera parts, etc |
others |
spinneret plate, rubber parts, plastic molds, toy, oven tray, boiler, bottles, bottle cap, filters etc |
1. For failure or damage occurring during the warranty period, the device under normal conditions of use. We are responsible for the repair or replacement.
2. We supply the service sending professionals installation and commissioning on customer site if customer need. The cost need to be discussed.
3. We supply the service training operators online or in our plant ( transportation and accommodation costs not included).
4. After the warranty, we only charge the damage components cost and freight cost, if need service on customer site, customer pay for the transportation and accommodation costs.
5. Fast response will be in 12 hours once receive customers' complain.
Packaging Detail: |
1.Outside package: standard export wooden cases 2.Inner package: stretch film |
Delivery Detail: |
7 days after prepayment |
We will try our best to provide you a competitive price and the best service . It is a great pleasure to establish a long-term ,
Win-Win business relationship with you .Please feel free to contact us by “Trade Manager ” or E-mail if you have any
question . We will respond you as soon as possible .
Wish you have a good time here !
