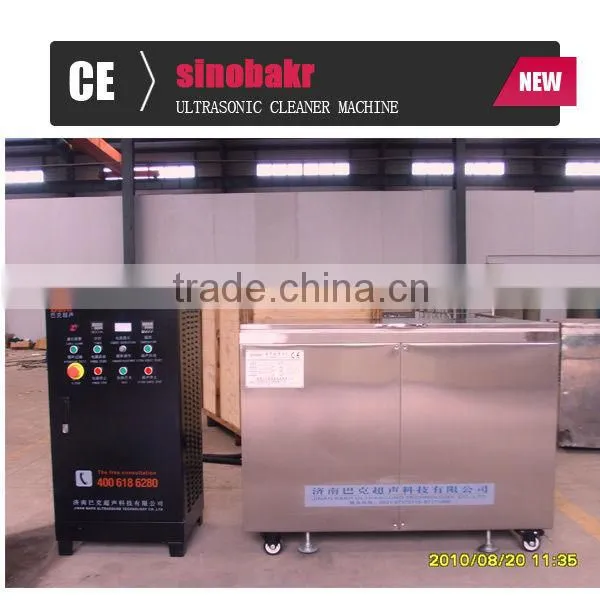

automatic wave box supersonic cleaning machine

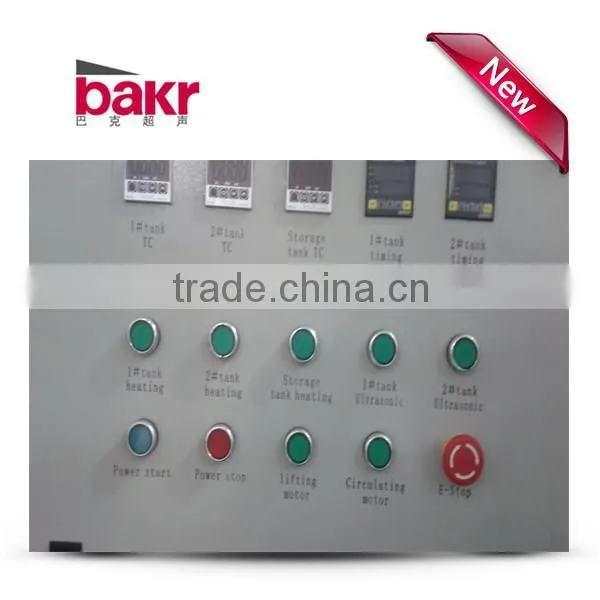

1.control of power
The industry is the first to use full-bridge IGBT using high-power integrated power control module,the module using Germany’s Siemens .The module can resist above 80°C and high pressure.
2.Transducer part
The original German CeramTec piezoelectric ceramic chip,high-precision CNC machine equipment.
3.Sheet metal processing
Well equipped; advanced Sheet metal art,high-quality research and development team and scientific management tools.
4.feather
Environmental and future proof strategy environmentally friendly and cost effective cleaning designed to use a minimum amount of cleaning chemicals and energy to reduce wastes
Model NO. |
Tank dimension (mm) |
Ultrasonic power(k w) |
Ultrasonic direction |
Heat power (k w ) |
Voltage |
Ultrasonic Frequencies(kHz) |
||
length |
width |
depth |
||||||
B k-1800 |
600 |
480 |
450 |
1.8 |
3 sides |
4 |
220v or 380v |
28/40 |
B k-2400 |
750 |
550 |
480 |
2.8 |
3 sides |
6 |
220v or 380v |
28/40 |
B K-3600 |
1000 |
550 |
560 |
3.6 |
3 sides |
9 |
220v or 380v |
28/40 |
B K-4800 |
1200 |
650 |
650 |
5.2 |
3 sides |
12 |
220v or 380v |
28/40 |
B K-6000 |
1450 |
720 |
730 |
7.2 |
3 sides |
15 |
220v or 380v |
28/40 |
B K-7200 |
1500 |
800 |
800 |
8 |
3 sides |
18 |
220V or 380v |
28/40 |
B K-10000 |
1700 |
900 |
800 |
10.8 |
3 sides |
20 |
220v or 380v |
28/40 |
B K-12000 |
2200 |
1200 |
1000 |
21.6 |
3 sides |
32 |
220v or 380v |
28/40 |
1) Use tap water, alcohol or other solvent as cleaning fluid.
2) Powerful transducer with significant effect.
3) Products are very shine after clean.
4) Mechanical timer to control the cleaning time.
5) All stainless steel body, tank, cover.
6) Water proof, safe and long useful life.
7) Heating function with constant temperature system.
8) Stainless steel basket is optional.
9) Other models are available.
10) Warranty : 1 year, supply free parts, lifelong repair
1. For failure or damage occurring during the warranty period, the device under normal conditions of use. We are responsible for the repair or replacement.
2. We supply the service sending professionals installation and commissioning on customer site if customer need. The cost need to be discussed.
3. We supply the service training operators online or in our plant ( transportation and accommodation costs not included).
4. After the warranty, we only charge the damage components cost and freight cost, if need service on customer site, customer pay for the transportation and accommodation costs.
5. Fast response will be in 12 hours once receive customers' complain.
Specifications
Type |
Working frequency |
Ultrasonic power |
Size of internal tank |
Capacity
|
B k-80 |
40/60 |
80 |
150*140*100 |
2 |
B k-120 |
40/60 |
120 |
240*140*100 |
3 |
B k-240 |
40/60 |
240 |
300*150*150 |
6 |
B k-360 |
40/60 |
360 |
300*240*150 |
10 |
B k-600 |
40/60 |
600 |
500*300*150 |
22.5 |
B k-900 |
40/60 |
900 |
500*300*200 |
28 |
B k-1000 |
40/60 |
1000 |
600*400*200 |
48 |
