lasercut software high speed laser cutter machine
Specifications:
Model |
ST90120 |
||
Laser power |
80w |
100w |
130w |
Laser tube |
Sealed CO2 glass laser tube |
||
Working Area |
900×1200mm |
||
Lifting table space |
550mm Up and Down adjustable by Motor |
||
Gross Power |
1000w |
1100w |
1300w |
Software supported |
Indirect output : ArtCut, Photoshop |
||
Direct output : CorelDraw, AutoCAD, Lasercut | |||
Main Graphic format |
PLT/DXF/BMP/AI |
||
Machine Dimension |
1780×1280×1180mm |
||
Packing Dimension |
1900×1480×1360mm |
||
Gross Weight |
410 kgs |
||
Cutting Ability |
(80w Laser Tube) Acrylic Max 20mm |
||
Engraving Speed |
Max 1200mm/s |
||
Power Supply |
220V±10% 50HZ 110V±10% 50HZ |
||
Cooling System |
Water Cooling and protection system |
||
Optional Spare Parts |
Rotary Clamp : used to engrave on curve surface |
||
Water Chiller for cooling | |||
Standard Accessories: Air Blower and Exhausting pipe, Power cable, USB cable, LED belt, Water pump, Air pump, Electric up and down worktable, Dual red dot posioner, Software and Dongle, Keys,
Spare Parts Recommended: Laser tube, Reflection mirrors and Focus lens
Warranty: 24 Months for machine (3 months for laser tube and mirrors and lens)
Optional: Rotary clamp, Water chiller
laser cutting machine can work well on following materials:
1.There is no touch on the surface of products in processing in order to keep the best quality and non-polluting.
2. Applied to cutting, carving and punching for label, garment leather, cloth toy, computer embroidery, template cutting ,wood, crystal,acrylic and paper, etc.
Features:
1.support offline work by U-disk
2.Water cooling and protection system

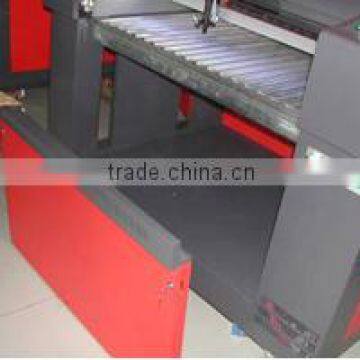

3. Motorized up and down worktable
4. Dual red dot pointer
5.Sealed CO2 glass laser tube
6.Continuous work after breakpoints or power-off
7. Professional machine design
.
CE certificate:
Our Raylaser products are tested, checked and approved by the ECM institution from Italy, with high quality and stable performance.
About the machine quality, please rest assured and trust us.
Warranty
(1) .The warranty of machine is 12 months
(2).The warranty is dated from EX factory date
(3) .During warranty, we will send the parts to you for repairing or replacing
(4) .If there's any problem in the future, we will give you tech support by mail, MSN, or Skype to fix the problems
After-sales service
No matter what kind of product problems, our customer service staff will deal with it as soon as possible.We offer
online service 24 hours all day trademanager, Email and so on.You can contact us any time,if urgently,pls call uS
