Specifications
solar power1.LED display
2,inverter,controller,battery three in one
3,minio size protable solar system
4,solar system
1000w protable solar system 1000w solar power
Characteristics:
1. Modified sine wave output
2. Different choice of input voltage range
3. High-frequency digital technology, MCU control, more stable capablity
4. High efficiency rate of DC - AC conversion, minimize energy loss
5.Tower design, can both stand up and lay down, can be placed flexibly
6. Equiped with super-charger, the maximum electricity can reach 8 A, and can charge for batteries with electricity over 100 AH
7.Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
8. Restoration of electricity, automatically activated
9. Offline-charging functions (when the utility comes to normal, even if it is not turned on, the machine can still charge the battery)
10. Multi-functional LED indicator light and alarm device
2.Specification of solar power system
MODEL |
115V Models |
230V Models |
OUTPUT | ||
Power Levels crated at nominal inputs |
500VA/300W;1000VA/600W;2000VA/1200W |
500VA/300W;1000VA/600W;2000VA/1200W |
Output Voltage |
120V |
230V |
Phase |
Singthree phase |
|
Voltage Waveform |
Pure Sine Wave |
|
Power Factor |
0.6 |
|
Output Frequency(Synchronized to Mains) |
Auto Select for 50/60Hz |
|
Regulation (Nominal) |
10%-18% |
|
Regulation(Battery mode) |
±0.1HZ |
|
Transfer time |
8ms Typical |
|
INPUT | ||
Nominal Voltage |
110V/120V Selectable |
220V/230V/240V Selectable |
Phase |
Single |
|
Voltage range |
90 - 145VAC or 170-280VAC ( Narrow Range ) |
|
50-145VAC / 90-280VAC (Wide Range) | ||
BATTERY | ||
Charger Current |
500VA/300W/12VDC:10 Amp + / -
1Amp;1000VA/600W/12VDC/:10Amp + / -
1Amp; 2000VA/1200W/24VDC:10 Amp + / - 1Amp |
|
Overcharge Protection |
500VA/300W: 15V +/- 0.3V charger stops and fault |
|
1000VA/600W:15V +/- 0.6V charger stops and fault | ||
2000VA/1200W: 30V +/- 0.6V charger stops and fault | ||
EFFICIENCY | ||
AC to AC |
>95% |
|
DC to AC |
>80% |
|
INDICATOR | ||
AC Mode |
Green LED lighting |
|
Battery Mode |
Yellow LED lighting |
|
Battery Charging Mode |
Green LED flashing every 2 seconds |
|
Overload |
Red LED flashing every 0.5 second |
|
Fault |
Red LED lighting |
|
AUDIBLE ALARM | ||
Low Battery at Battery Mode |
Sounding every 2 seconds |
|
Overload |
Sounding every 0.5 second |
|
Fault |
Continously sounding |
|
Protection | ||
Full Rrotection |
Deep Discharge, Overcharge, and Overload protection |
|
ENVIRONMENTAL AND SAFETY | ||
Operating Temperature |
Up to 1500 meters:0 °C to 40°C (32°F to 104°F) |
|
Transit/storage Temp. |
15°C below zero to 50°C (5°F to 131°F) |
|
Relative Humidity |
0 - 90% non condensing |
|
Quality control system |
ISO 9001:2000, ISO 14002-2004 |
|
PHYSICAL | ||
Appearance |
224 x 255 x 80 |
|
500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg | ||
414*311*560(3pcs) | ||
500VA / 300W:7.4kg ; | ||

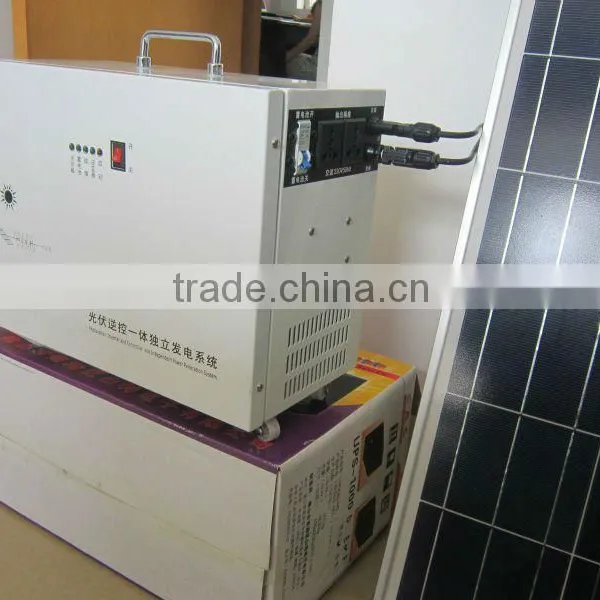

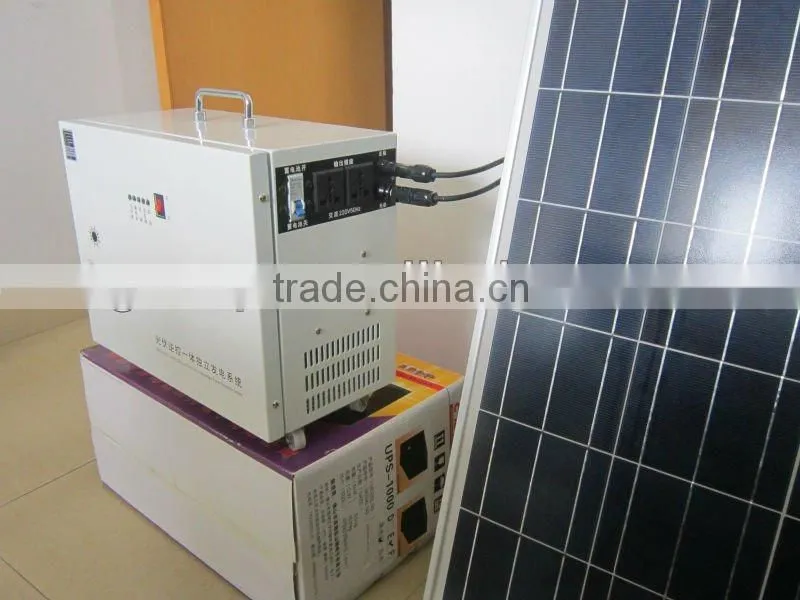

Energy Saving solar power System to bring the green energy in your house,u can use
the system in the island,in the outside,in the place where is no eletric:

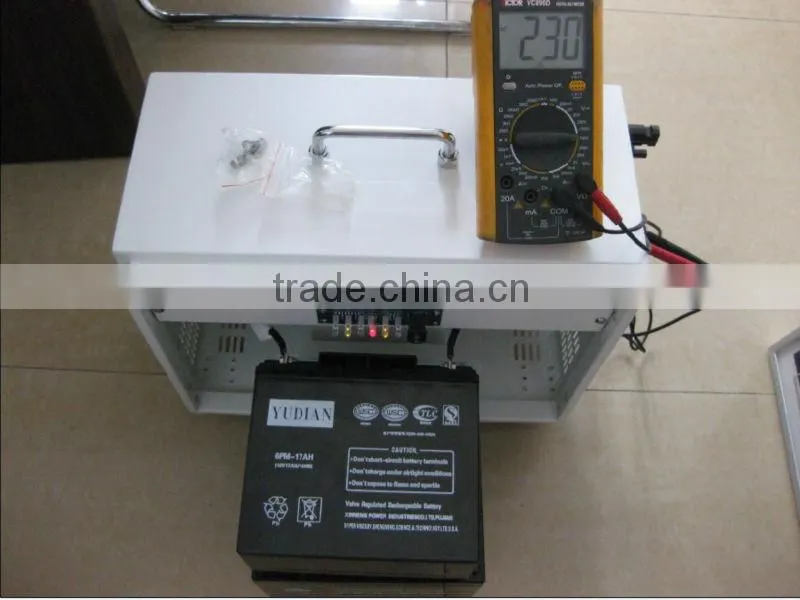

Maybe u ask where is the battery ,controller and the inverter,u can see inside ,the black is battery ,above is is the controller and the inverter inbuilt

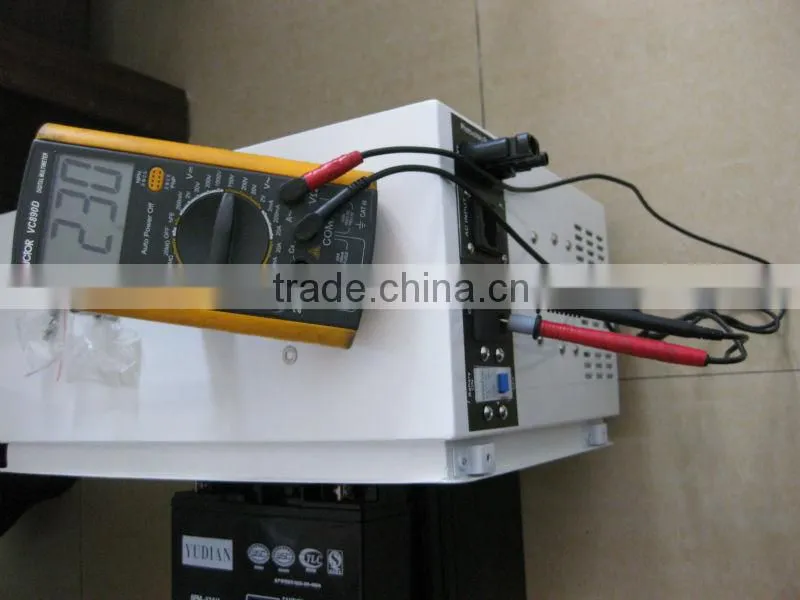

we have the good quality,how can we promise that?? u can see we will test it again and again during production.
and the certificate of it:
any questions pls feel free to contact me
Skype:capsolar4
Mob:+86 136 9741 3612
