Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Cell > 300w Poly Solar Panel System for Home Use

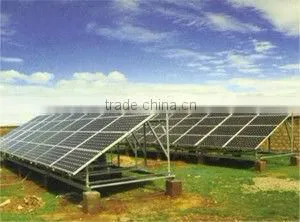

300w Poly Solar Panel System for Home Use

US$ 10 - 165 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

CAP

Model Number:

HL serise

Contact Supplier Request Quote Chat Now

Guangzhou CAP Solar New Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CAP

Model Number HL serise

Material Polycrystalline Silicon

Size 1194*534*35/30-1640*992*50mm

Number of Cells 4*9-6*12

Max. Power 300W

Specifications

1.Efficiency is above 17%
2.OEM Service
3.Customized type 5 to 300W
4.Long lifespan
5.Tempered glass

300w poly solar panel system for home use

Characteristics:

High and stable conversion efficiency based on over 4 years professional experience

High reliability with guaranteed +/-10% output power tolerance

Proven materials, tempered front glass, and a sturdy anodized aluminum frame allow modules to operate reliably in multiple mountily configurations

Combination of high efficiency and attractive appearance

Quality and Safety:

1. With advanced materials and equipments, our modules are designed and manufactured in consistency with the IEC 61215:1993 standards which can guarantee excellent electrical performance and the product life span of 25 years.

2. A film of PECVD is coated on the upper surface as antireflection measure which the characteristic of deep blue color.

3. The modules are embedded with a sheet of imported strong transparent glass, two sheets of long endurance EVA, a high efficiency poly-crystalline cells sheet and a sheet of antihumidity TPT for different weather conditions.

4. High quality anodized aluminum frame which is the choice for strong wind resistance and mountain terrain.

5. A multifunction box can safeguard safe connection.

6. The exterior design and electrical performance of each every module are fully tasted to guarantee superior quality.

applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications

specification:

Module Type	100w	150w	200w	250w	300w
Maximum Power at ST(Pmax)W	100wp	150wp	200wp	250wp	300wp
Maximum Power Voltage(Vmp)V	36/18	36/18	36/18	30.8v	36/18
Maximum Power Current(Imp)A	2.77/5.55	4.16/8.33	5.55/11.1	8.11A	8.33/16.66
Open Circuit Voltage(Voc)V	39.5/19.05	39.3/19.4	39.6/19.5	36.2V	39.6/19.8
Short Circuit Current(Isc)A	3.04/6.09	4.58/9.16	6.1/12.2	8.7A	9.16/18.33
Cell Efficiency(%)	18.60%	18.10%	18.60%	17.80%	18.10%
Module Efficiency(%)	17.70%	17.20%	17.70%	17.10%	17.20%
Operating Temperature°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C	-40°C to +85°C
Maximum system voltage	1000V(IEC)DC	1000V(IEC)DC	1000V(IEC)DC	1000V(IEC)DC	1000V(IEC)DC
Power tolerance	+-3%	+-3%	+-3%	+-3%	+-3%
Temperature coefficients of Pmax	-0.45%/°C	-0.45%/°C	-0.45%/°C	-0.45%/°C	-0.45%/°C
Temperature coefficients of Voc	-0.27%/°C	-0.27%/°C	-0.27%/°C	-0.27%/°C	-0.27%/°C
Temperature coefficients of Isc	0.05%/°C	0.05%/°C	0.05%/°C	0.05%/°C	0.05%/°C
Weight(kg)	8	11	14	20	25.5
Number of cell(pcs)	4*9	4*9	6*10	6*12	6*12
Dimensions(mm)	119453435/30	158080850/35	147167040/35	164099250	192010050
