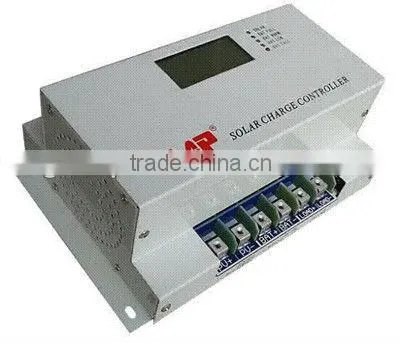

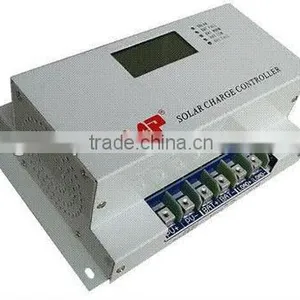

Help CenterLCD Solar Charge Controller
Related Products
-
Wind Solar Hybrid Charge Controller 24v 50AUS$ 90 - 399MOQ: 1 Set -
Hybrid Solar Charge Controller Lcd+mppt Controller 90AUS$ 7.5 - 399MOQ: 1 Set
-
LCD+MPPT LED Solar Charge ControllerUS$ 70 - 280MOQ: 1 Piece
-
Pwm Solar Charge Controller 10A 20A 30AUS$ 7 - 11MOQ: 1 Set
-
Pwm Solar Charge Controller 20A 12V 24VUS$ 7 - 11MOQ: 1 Set
Specifications
solar charge controller1,mppt solar charge controller
2,LCD&LED diaplay
3,auto change system volt
4,12v24v 36v48v 72v96v
MPPT Solar Charge Controller
Range: 40amp 50amp 60amp 70amp 80amp 90amp 100amp
DC input: 12v/24v 48v/96v
1. The solar charge controller protects the battery from being overcharged by the solar array and from beingdeep discharged by the Loads. The charging characteristics include several stages which include automatic adaptation to the ambient temperature.
2. The charge controller adjusts itself automatically to 12v/24v. It has 48v, 72v and96V system voltage.
3. The solar controller has a number of safety and LED & LCD display functions.
Technical Data:
Model series |
LM series ALM01A/LM02A/LM03A/LM04A |
LM series BLM01B/LM02B/LM03B/LM04B |
Nominal voltage |
12/24 V, automatic recognition |
48/96 V, automatic recognition |
Boost voltage |
14.5/ 29.0 V (25'C),2 hours |
58/116V (25'C),2 hours |
Equalizationvoltage |
14.8/29.6 V (25'C),2 hours |
59.2/118.4V (25'C),2 hours |
Float voltage |
13.7/ 27.4 V (25'C) |
54.8109.6/ 27.4 V (25'C) |
Low VoltageDisconnectFunction |
11.4- 11.9/22.8-23.8 V controlledby state of charge 11.0/ 22.0 Vcontrolled by voltage |
45.64- 47.6/91.2-95.2V controlledby state of charge 11.0/ 22.0 Vcontrolled by voltage |
Load reconnectvoltage |
12.8/25.6V |
51.2/102.4V |
Temperaturecompensation |
-4 mV/cell*K |
|
Max. solar panelcurrent |
40A/50A/60A according to model number @ 50'C |
|
Max. loadcurrent |
40A/50A/60A according to model number @ 50'C |
|
Dimension |
230 x 150 x 85 mm |
|
Weight |
1.2kg |
1.3kg |
Max wire size |
20 mm2 |
|
Self consumption |
16mA |
30mA |
Ambienttemperature range |
-40 to+ 50°C |
|
Case protection |
IP 22 |
|
with LCD and LED dispaly solar charge controller
