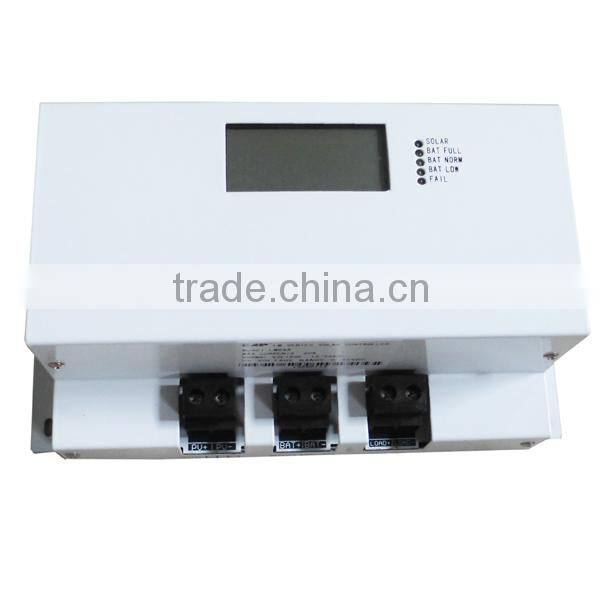

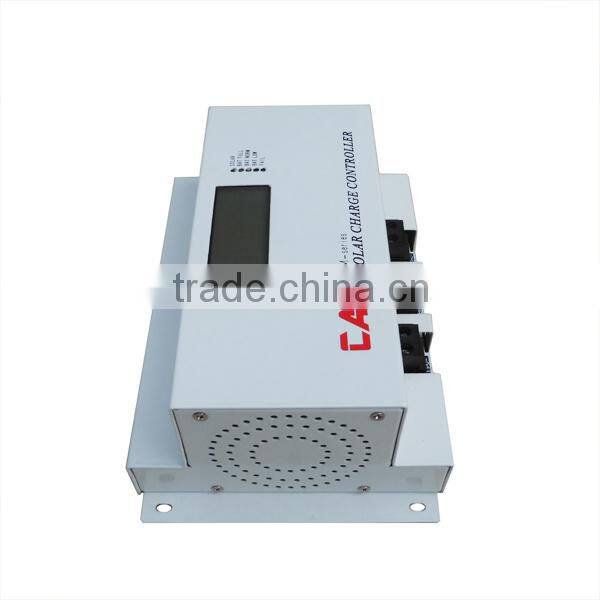

Hybrid Solar Charge Controller Lcd+mppt Controller 90A

Name: Hybrid Solar Charge Controller Lcd+mppt Controller 90A
Brand: cap, cap
SKU: 109439287
Availability: InStock

US$ 7.5 - 399 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

cap, cap

Model Number:

48v 50A

Guangzhou CAP Solar New Energy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name cap, cap

Model Number 48v 50A

Application Charger Controller

Rated Voltage 48V

Maximum Current 100A

hybrid solar charge controller lcd+mppt controller 90A

Technical Data:

Model series	LM series A LM01A/LM02A/LM03A/LM04A	LM series B LM01B/LM02B/LM03B/LM04B
Nominal voltage	12/24 V, automatic recognition	48/96 V, automatic recognition
Boost voltage	14.5/ 29.0 V (25'C),2 hours	58/116V (25'C),2 hours
Equalization voltage	14.8/29.6 V (25'C),2 hours	59.2/118.4V (25'C),2 hours
Float voltage	13.7/ 27.4 V (25'C)	54.8109.6/ 27.4 V (25'C)
Low Voltage Disconnect Function	11.4- 11.9/22.8-23.8 V controlled by state of charge 11.0/ 22.0 V controlled by voltage	45.64- 47.6/91.2-95.2V controlled by state of charge 11.0/ 22.0 V controlled by voltage
Load reconnect voltage	12.8/25.6V	51.2/102.4V
Temperature compensation	-4 mV/cell*K
Max. solar panel current	40A/50A/60A according to model number @ 50'C
Max. load current	40A/50A/60A according to model number @ 50'C
Dimension	230 x 150 x 85 mm
Weight	1.2kg	1.3kg
Max wire size	20 mm2
Self consumption	16mA	30mA
Ambient temperature range	-40 to+ 50°C
Case protection	IP 22
