Long Battery Life Gps Tracker Motorcycle Waterproof

Specifications

low cost gps tracker motorcycle waterproof
-Waterproof IPX6
-free software
-motorcycle gps tracker
-real time tracking



Long battery life gps tracker motorcycle waterproof

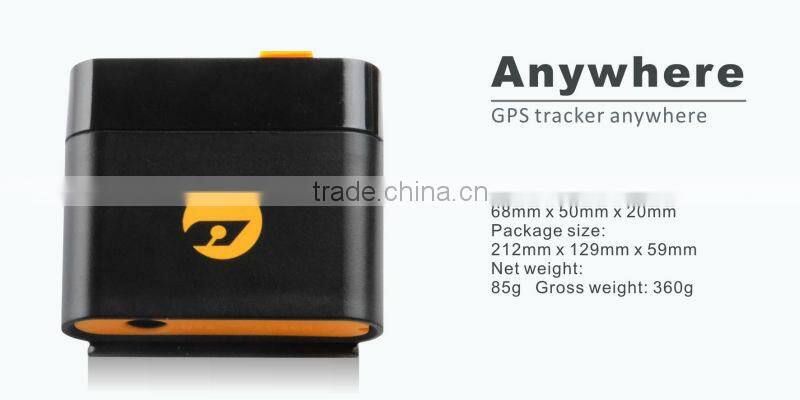

Size: 68mm x 50mm x 20mm



 Package size: 212mm x 129mm x 59mm



 Net weight: 85g   Gross weight: 360g







GPS and Location Based Service







 Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location by ACPS.







Real time tracking







Real time tracking it by cell phone and platform . Also can support get location every 5 seconds, and the GPS accuracy is 5m .







Check the history of route



 Can check and replay within one year history of route of device ,by web monitor center.







 Monitoring and communication



 Can hear the voice around the tracker by cell phone







SOS button







SOS button ,when user have emergency , press the SOS button ,the tracker will send “help me “ SMS to all authorized phone number and monitoring web platform .







Mileage calculate



Check the mileage data by mobile and platform anytime and anywhere.







Google map on mobile



 Check the location with google map on mobile.







Monitoring and communication



 Can hear the voice around the tracker by cell phone







Sleeping model



 When device don’t receive any task ,it will go to sleep ,When sleep the consumption is only 1-3mAh. If the device receive the SMS and calling during sleeping, it will wake up and go to work automatically.







High waterproof IPX6



 The unit configurate the powerful magnets, belt buckle that can be removed. Powerful magnets has quite strong adsorption force can be adsorption on vehicles,after installation buckle,It can be used for persons and pet







Description











• view Google map on mobile screen
• Movement alert .Over speed alert .shake senser, Geofence
• Traffic  mode
• Support  2GB SD Card
• Sleeping  mode
• Waterproof IPX-6
• Powerful dismountable magnet cover +dismountable Belt gusset plate.







 Product parameter







• GSM/GPRS module:Quectel -M35
• Band:850/900/1800/1900Mhz
• Communication protocol:TCP
• CPU:ARM7
• GPS chip :Newstart NS-1513
• GPS sensitivity:-159dBm
• GPS accuracy:5m
• Time To First Fix:Cold status  45s  Hot status  1s
• Car charger:12—24V  input   5V   output
• Wall charger:110-220V  input    5V   output
• Battery:3.7V 1460mAh Li-ion battery
• Standby:250hours
• Storage Temp:-40°C to +85°C
• Operation Temp:-20°C to +55°C
• Humidity:IPX-6
