Specifications
gps sms gprs tracker vehicle tracking system- ARM 7 CPU ,2M SD card save Gprs data
-Waterproof IPX-6
-real time traker
Long battery life gps sms gprs tracker vehicle tracking system
- GPS and Location Based Service
Location Based service also named A-GPS, when tracker in underground or tunnel ,can get location by ACPS.
- Real time tracking
Real time tracking it by cell phone and platform . Also can support get location every 5 seconds, and the GPS accuracy is 5m .
- Check the history of route
Can check and replay within one year history of route of device ,by web monitor center.
- Monitoring and communication
Can hear the voice around the tracker by cell phone
- SOS button
SOS button ,when user have emergency , press the SOS button ,the tracker will send “help me “ SMS to all authorized phone number and monitoring web platform .
- Mileage calculate
Check the mileage data by mobile and platform anytime and anywhere.
- Google map on mobile
Check the location with google map on mobile.
Geofence and movement alert
Set up a geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized numberwhen it breaches the district.
- Shake and overspeed alert
Set shake and overspeed alert,unit will send message when shaked and overspeed.
- Traffic model
When in traffic model the device will save power and GPRS. When car don’t mover,the device will got to sleeping automatically. When sleep the consumption is only 1-3mAh can save power 80%. When t car move, the device will be wake up to tracking the car, and send the data to cell phone or monitor center.
- SD card and over the air update
Importand with SD card:1:when no gsm and gps signal all the data will be saved at SD card and will be send again after get gsm gps signal.2: Many function and updating will be add in the future like over the air update: user can send a update message to the unit, updating will be finished within 3-5 minuts and SD card is the necessary in this.
- Sleeping model
When device don’t receive any task ,it will go to sleep ,When sleep the consumption is only 1-3mAh. If the device receive the SMS and calling during sleeping, it will wake up and go to work automatically.
High waterproof IPx 6

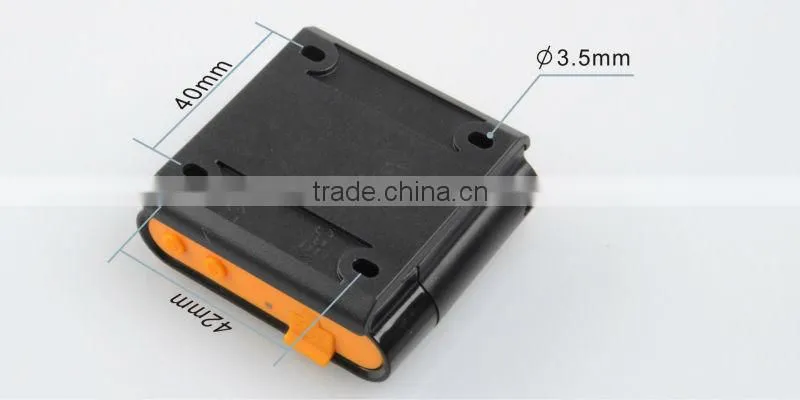

The unit configurate the powerful magnets, belt buckle that can be removed. Powerful magnets has quite strong adsorption force can be adsorption on vehicles,after installation buckle,It can be used for persons and pet
Product parameter
- GSM/GPRS module:Quectel -M35
- Band:850/900/1800/1900Mhz
- Communication protocol:TCP
- CPU:ARM7
- GPS chip :Newstart NS-1513
- GPS sensitivity:-159dBm
- GPS accuracy:5m
- Time To First Fix:Cold status 45s Hot status 1s
- Car charger:12—24V input 5V output
- Wall charger:110-220V input 5V output
- Battery:3.7V 1460mAh Li-ion battery
- Standby:250hours
- Storage Temp:-40°C to +85°C
- Operation Temp:-20°C to +55°C
- Humidity:IPX-6
