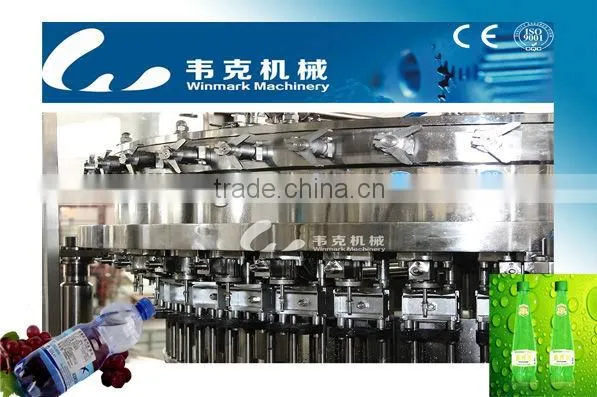

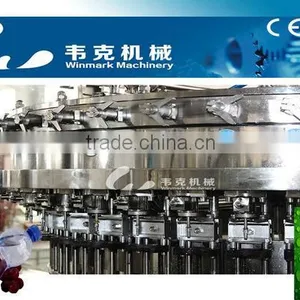

Carbonated Beverage Bottle Filling Machine

Carbonated Beverage Bottle Filling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WINMARK
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name WINMARK
Model Number DCGF
Type Other, Filling Machine, Filling Machine
Power(W) up to the capacity
Certification ISO9001;CE
Warranty ONE YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Bottle filling Machine
1. carbonated drink production line
2. CSD bottling factory
3. full-auto 3 in 1 monoblock

carbonated drink production line, bottle filling machine, CSD bottling factory



it is used for filling carbonated drink in PET bottles or glass bottles. we can supply the whole line.



Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change diverse sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine.



4. Working speed can be adjustedby frequency conversion device.

5. Main electronic components are all from famousinternational enterprises, like Siemens and Mitsubishi.

    Main Technical Specifications

Model:
DCGF18-18-6
DCGF24-24-8
DCGF32-32-10
DCGF40-40-12
Production Capacity:500ml
5000
8000
12000
15000
Suitable Bottle Standard:
round or square shaped bottle.
Polyester Bottle Standard: (mm)
Bottle Diameter:50-110   (Height):150-340mm
Suitable Cap Standard:
Plastic Screw Cap
Filling Precision:
≤±5mm
Filling Pressure:(Mpa)
0.15-0.35
0.15-0.35
0.15-0.35
0.15-0.35
Filling Pressure:(Mpa)
0.2-0.25
0.2-0.25
0.2-0.25
0.2-0.25
Installed Capacity:(L)
4
4.8
7.6
8.3
Overall Size:(mm)
2650×1900 ×2400
2900×2100
×2400
4100×2400
×2400
4550×2650
×2400
Total Weight: (kg)
3500
4500
5500
6500

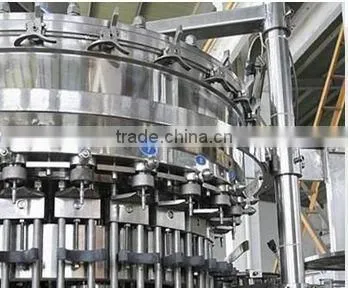

Carbonated Beverage Bottle filling Machine

Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
