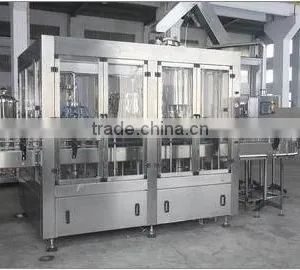

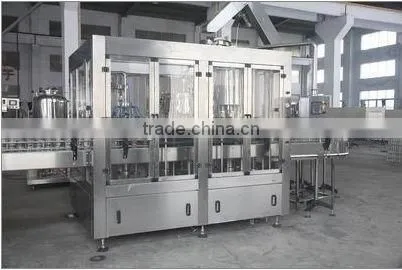

Full Automatic Carbonated Drink Filling Machine

Name: Full Automatic Carbonated Drink Filling Machine
Brand: WINMARK
SKU: 109367831
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

WINMARK

Zhangjiagang Winmark Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name WINMARK

Model Number DCGF

Type Other, Filling Machine, Filling Machine

Power(W) up to the capacity

Certification ISO9001;CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. carbonated water filling line
2. carbonated drink machine
3. full-auto 3 in 1 monoblock
4. PET bottle or glass bottle

carbonated water filling line, soda water filling line, carbonated drink machine

it is used for packing carbonated water with PET bottles. we can supply the whole line.

Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this onemachine.

2. It is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed

can be adjustedby frequency conversion device.

4. Main electronic components are all from famous international enterprises.

Technical parameters:

Model	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Production Capacity:500ml(B/h)	5000	8000	12000	15000
Suitable Bottle Types(mm):	Round or square square shaped bottle
Polyester Bottle Dimension: (mm)	Bottle diameter:φ50-φ110 Height :150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision	≤±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	4	4.8	7.6	8.3
Overall Size(mm)(L×W×H)	2650×1900×2400	2900×2100×2400	4100×2400×2400	4550×2650×2400
Total Weight: (kg)	3500	4500	5500	6500
