Carbonated Can Machine

FOB Price

US$ 2,000 - 40,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage, Food
Packaging Type	Bottles	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380/220	Power	subject to model
Place of Origin	Jiangsu, China	Brand Name	Winmark
Model Number	filling machine	Dimension(LWH)	subject to model
Weight	subject to model	Certification	CE ISO
After-sales Service Provided	Engineers available to service machinery overseas

can machine

Characteristics:

1. it can carry out washing filling and capping in one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.

4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.

Technical parameters:

Model	DCGF18-18-6	DCGF24-24-8	DCGF32-32-12	DCGF40-40-12
Production Capacity:500ml(B/h)	5000	8000	12000	16000
Suitable Bottle Types(mm):	Round or square square shaped bottle
Polyester Bottle Dimension: (mm)	Bottle diameter:50-110 Height :150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision	≤±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	3.5	4	6	8
Overall Size(mm)(L×W×H)	2450×1800×2350	2780×2200×2350	3600×2650×2350	3800×2950×2400
Total Weight: (kg)	3500	4500	5500	6500

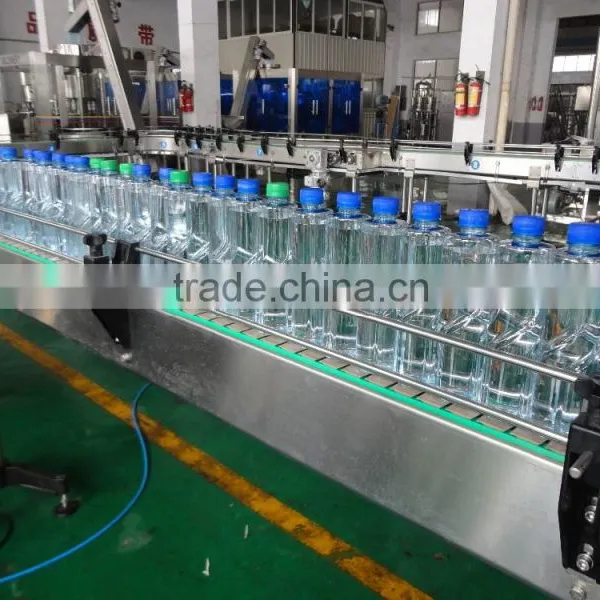

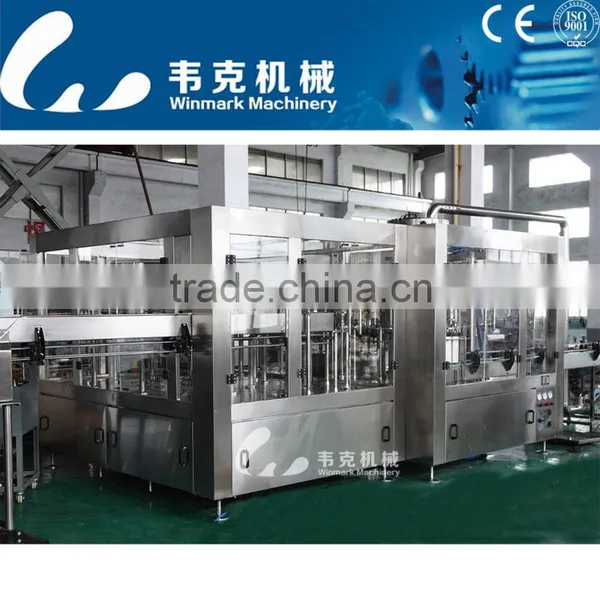

Complete line photo:

can machine can machine can machine can machine can machine can machine can machine can machine
