Auto Carbonated Drink Filling Machine

Name: Auto Carbonated Drink Filling Machine
Brand: WINMARK
SKU: 109367793
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New, New

Place of Origin:

Jiangsu, China

Brand Name:

WINMARK

Zhangjiagang Winmark Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name WINMARK

Model Number DCGF

Type Other, Carbonated Beverage, Filling Machine

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. carbonated drink filling machine
2. CSD bottling factory
3. full-auto 3 in 1 monoblock
4. PET bottle, glass.

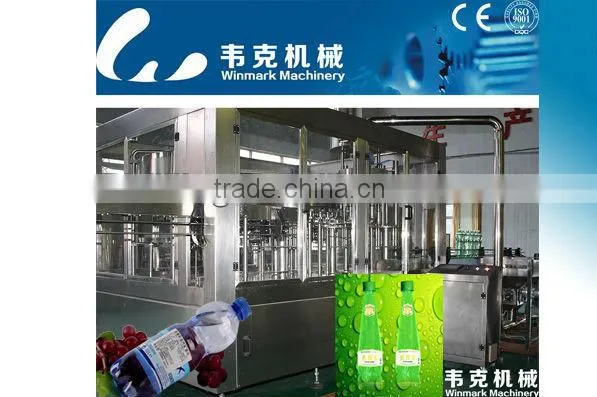

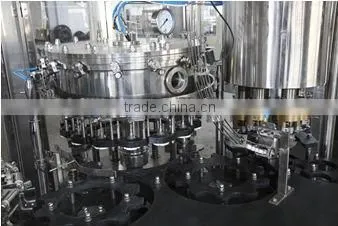

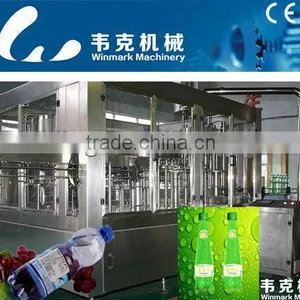

Carbonated drink filling machine

bottle filling machine

CSD bottling factory

It is used for filling carbonated drink in PET bottles or glass bottles. We can supply the whole line.

Characteristics:

1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.

2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology

3. Advanced programmable PLC is equipped to control the main machine.

4. Working speed can be adjusted by frequency conversion device.

5. Main electronic components are all from famous international enterprises, like Siemens or Mitsubishi.

Main Technical Specifications:

Model:	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Production Capacity:500ml	5000	8000	12000	15000
Suitable Bottle Standard:	round or square shaped bottle.
Polyester Bottle Standard: (mm)	Bottle Diameter:50-110 (Height):150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision:	≤±5mm
Filling Pressure:(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Filling Pressure:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	4	4.8	7.6	8.3
Overall Size:(mm)	2650×1900 ×2400	2900×2100 ×2400	4100×2400 ×2400	4550×2650 ×240
