Carbonated Beverage Filling Machine

FOB Price

US$ 10,000 - 30,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	Beverage
Packaging Type	Bottles	Packaging Material	Wood
Automatic Grade	Automatic	Driven Type	Electric
Voltage	380V,50HZ	Power	6KW
Place of Origin	Jiangsu, China	Brand Name	WINMARK
Model Number	DCGF	Dimension(LWH)	290021002400mm
Weight	5500KG	Certification	ISO,CE,SGS
After-sales Service Provided	Engineers available to service machinery overseas

Carbonated Beverage Filling Machine1. 2000-36000BPH
1.Carbonated Drink
2.Full-auto 3 In 1 Unit
3.Bottle:PET, Glass

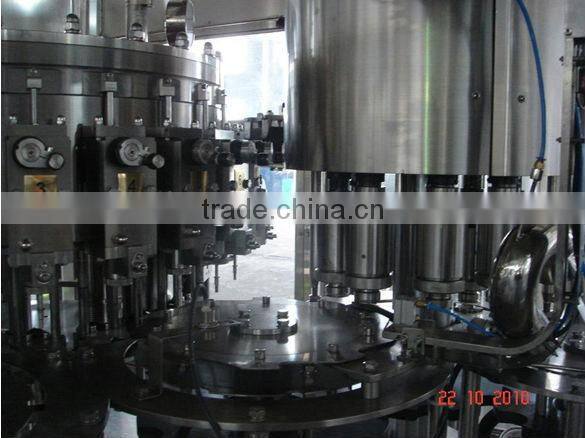

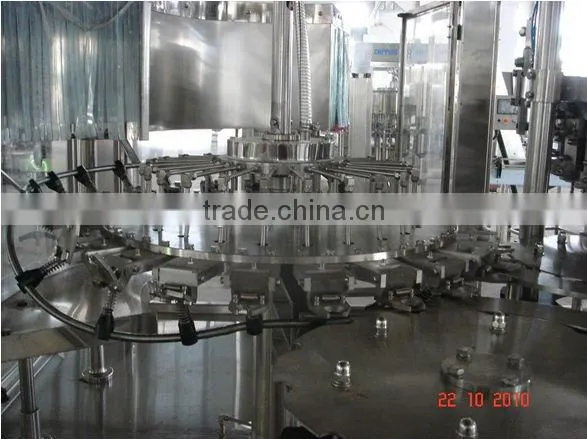

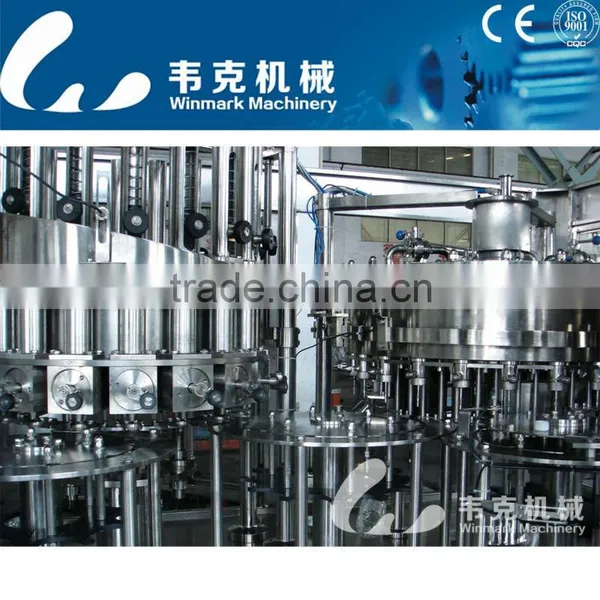

Carbonated Beverage Filling Machine

It is used for filling carbonated drink in PET bottle or glass bottle. we can supply the whole line.

Characteristics:

1. it can carry out washing filling and capping in one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.

4. Main electronic components are all from famous international enterprises, such as OMRON, Mitsubishi.

Technical parameters:

Model	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Production Capacity:500ml(B/h)	5000	8000	12000	15000
Suitable Bottle Types(mm):	Round or square square shaped bottle
Polyester Bottle Dimension: (mm)	Bottle diameter:φ50-φ110 Height :150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision	≤±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	3.5	4	6	8
Overall Size(mm)(L×W×H)	2650×1900×2400	2900×2100×2400	4100×2400×2400	4550×2650×2400
Total Weight: (kg)	3500	4500	5500	6500
