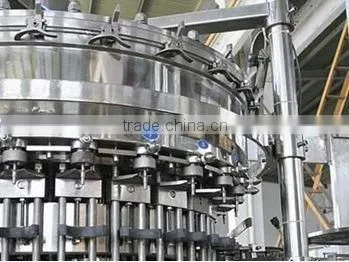

PET Bottle Carbonated Beverage Filling Machine

Name: PET Bottle Carbonated Beverage Filling Machine
Brand: WINMARK
SKU: 109367019
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Driven Type:

Electric

Place of Origin:

Jiangsu, China

Brand Name:

WINMARK

Zhangjiagang Winmark Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Driven Type Electric

Place of Origin Jiangsu, China

Brand Name WINMARK

Model Number DCGF

After-sales Service Provided Engineers available to service machinery overseas

Condition New

Specifications

1. DCGF24-24-8 carbonated beverage filling machine
2. capacity: 8000bph
3. bottle dia:50-110mm
4. bottle height: 150-340mm

carbonated beverage filling machine

beverage machine

it is used for filling carbonated drink in PET bottle or glass bottle. we can supply the whole line.

Characteristics:

1. it can carry out washing filling and capping in one machine.

2. it is very convenient to change diverse sizes of bottles by means of advanced bottle neck clamping & bottle suspending technology.

3. Advanced programmable PLC is equipped to control the main machine. Working speed can be adjusted by frequency conversion device.

4. Main electronic components are all from famous international enterprises, such as Siemens, Mitsubishi.

Technical parameters:

Model	DCGF18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF40-40-12
Production Capacity:500ml(B/h)	5000	8000	12000	15000
Suitable Bottle Types(mm):	Round or square square shaped bottle
Polyester Bottle Dimension: (mm)	Bottle diameter:φ50-φ110 Height :150-340mm
Suitable Cap Standard:	Plastic Screw Cap
Filling Precision	≤±5mm
Filling Pressure(Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
Rinsing Precision:(Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
Installed Capacity:(L)	4	4.8	7.6	8.3
Overall Size(mm)(L×W×H)	2650×1900 ×2400	2900×2100 ×2350	4100×2400 ×2400	4550×2650 ×2400
Total Weight: (kg)	3500	4500	5500	6500
