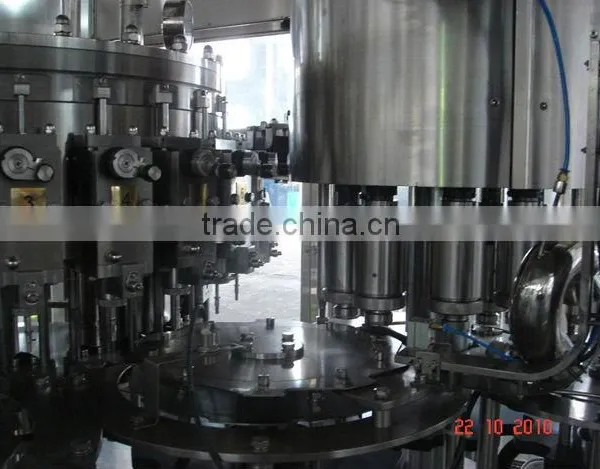

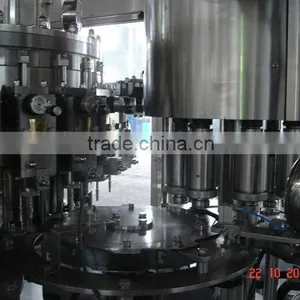

Help CenterCarbonated Drink Production Line
Related Products
Specifications
1. carbonated drink production line2. carbonated drink machine
3. PET bottle
4. full-auto 3 in 1 monoblock
Bottle Cooling Machine/Bottle Warming Machine
Usage:
The machine adopts advanced technology domestic and abroad to be manufactured.It heats filled soda drink bottles and cool filled fruice juice,fruit tea bottles, make both bottles reach room temperature within the specificed time.At the same time,clean up other matters on the surface of bottles.Then make it suitable for the next packaging conditions.
Main Technical Paramenters
| Model | DR-WP4000 | DR-WP6000 | DR-WP12000 | DR-WP36000 |
| Production capacity(b/h) |
3000~5000 | 6000~9000 | 10000~15000 | 24000~36000 |
| Heating temperature(degree) |
37~45 | 37~45 | 37~45 | 37~45 |
| Cooling time(min. ) |
12~15 | 12~15 | 12~15 | 12~15 |
| Conveying belt speed |
100~550 | 100~550 | 100~550 | 100~550 |
| Width of the chain(m) |
1.22 | 1.22 | 1.22 | 1.22 |
| Steam main pipe pressure(Mpa) | lower than0.4 | lower than0.4 | lower than0.4 | lower than0.4 |
| Water consumption(m³ /h) |
6 | 9 | 15 | 28 |
| Steam consumption(kg/h) |
80 | 120 | 250 | 280 |
| Motor power(KW) | 6 | 7.55 | 8.6 | 18 |
| Overall size(LxWxH mm) |
6200x1500 x1700 |
15800x1500 x1700 |
15800x1800 x1700 |
22000x1800 x1700 |
| Weight(kg) | 2500 | 3200 | 4300 | 5600 |
About Factory
15years’ experience in filling line machinery.
About Quality
brand-new equipments with latest design and suitable material made,
About After Sale Service
1 year's warranty period and life time technical support.
Our technology from Taiwan and Germany,Our machine have good quality and competitive price,Hope cooperate with you!
