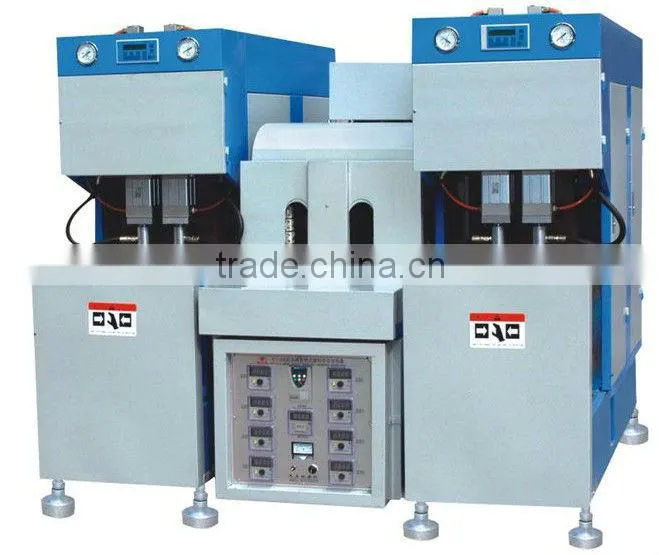

Semi automatic PET BOTTLE BLOWING MACHINE
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
- High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
- Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
- Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
- custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
- Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
- Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
Condition: | New | Application: | Bottle | Plastic Processed: | PET |
Blow Moulding Type: | Other, Injection Blow Moulding, Stretch Blow Moulding | Automatic: | Yes | Place of Origin: | Jiangsu, China |
Brand Name: | WINMARK | Model Number: | CM-8Y | Voltage: | 220v-415v |
Power(W): | By Order | Dimension(L*W*H): | By Order | Weight: | By Order |
Certification: | ISO,CE,BV | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Semi Automatic Blowing Machine1)Max2L,1600pbh,
2)Low Maintenance Rate
3)ISO 2001,CE,SGS
Semi automatic PET BOTTLE BLOWING MACHINE
The manufacturing process is divided into three parts:first.heating the extrusion of plastic;second,automatic control technology,mold shift;third step is to blow molding in the mold cavity.Mold design can be diversified according to different products with different design,mold perfect design,advanced technology will allow you to get the perfect plastic bottles and plastci straws and other products.
Features
1) pet bottle machine manufacturers is mainly used for the production for PET,PP,PE,PVE,PA,PS,and other plastic containers,can produce various shape of container.
2)a fully automated system design.Can greatly save you labor costs.
3) pet bottle machine manufacturers automatic production,low investment,high efficiency,safe,fast,easy to operate,,and is conductive to troubleshooting and maintenance.
1.Utilization of automatic central lubrication.
2.Compact space design for convenience of mold-conversion, repairing, and maintenance.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.
7.Intact rotating robot grip with linear guider for right access, rapid motion; reducing adjustment and maintenance time.
8.Electronic inspector for ejecting faulty preform and bottles.
9.Fast,safe,and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Smart design for quick conversion of blow mold.
12.Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Operating machine through touch panel; program protected by code lock.
Technique Parameter of blow molding machine
PET bottle blowing machine
Main parameter: | ||
Model | CM-8Y | |
Container | Product material | PET |
Volume | 0.1L-2L | |
Theoretical output | 1200-1600PCS/H | |
Preform length | 15mm-350mm | |
Preform inner diameter | φ5mm-38mm | |
Moulding | Max.mould plate Dimenstion (L x W) | 350x380mm |
Max.mould thickness | 180mm | |
Clamping force | 45KN | |
Mould opening stroke | 160mm | |
Machine size and weight | Main machine (L x W x H) | 160x60x161cm |
Main machine weight | 500Kg | |
Heater (L x W x H) | 187x63x145cm | |
Heater weight | 250Kg | |
Power | 17.5kw |
CM-8Y heat resistant semiautomatic bottle blowing moulding machine is suitable for producing any shapes of PET containers and volume is from 10ml to 2000ml , it is widely used to produce mineral water bottles ,carbonated beverage bottles ,cosmetic bottles ,oil bottles etc.
Adopting double carnk connecting bar clamping and clamping mould is stable and fast
Adopt for infra-red rotary oven and heated equally.PET bottle blowing machine
1.The air system has been divided into two parts , pneumatic action part and bottle blow part to meet the different requirements for the pressure of action and blow , it can provide sufficient and steady high pressure for blowing large irregular shaped bottles
2.The machine is also equipped with muffler and different parts of refueling system
3.The machine can be operated in step by step mode and the semi-auto mode
4.The machine is small with low investment ,it is easy and safe to be operated by one person.

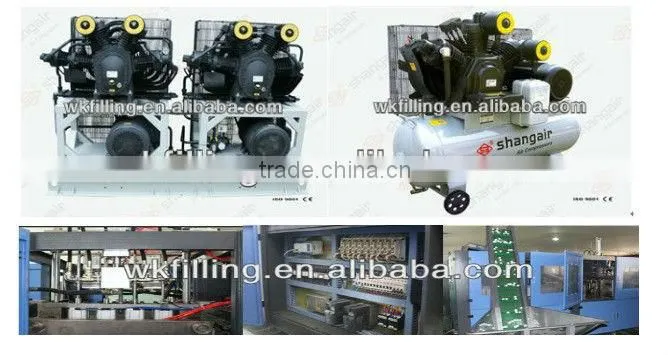

Factory Shows
