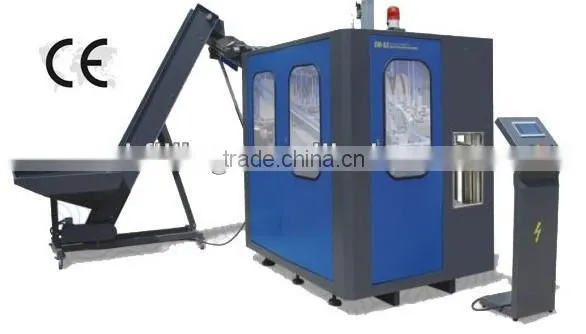

1500bph pet bottle making machine blow moulding machine
- 100 Unit / Units per Month
- shanghai
- T/T D/P D/A
-
High speed Plastic bottle making 0.5L- 2L 6000BPH Automatic PET bottle blow blowing mold molding machine prices
-
Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine
-
Semi Automatic PET Plastic Bottle 5 Gallon 20 Liter Blow Molding Machine Price
-
custom design semi-automatic preform pet plastic bottle blowing blow molding machine high speed
-
Semi-automatic Two Cavity Bottle Making Machine Blow Molding Equipment
-
Plastic bottle blowing machine Beverage bottle blowing machine Medicine bottle blowing machine
Product Details
| Condition: | New | Application: | Bottle | Plastic Processed: | PET |
| Blow Moulding Type: | Stretch Blow Moulding | Automatic: | Yes | Place of Origin: | Zhejiang, China |
| Brand Name: | winmark | Model Number: | WM-L | Voltage: | according to user |
| Power(W): | subject to model | Dimension(L*W*H): | subject to model | Weight: | subject to model |
| Certification: | CE ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
pet bottle making machine blow moulding machine
WORKING PRINCIPLE:
First, put the performs in the hopper; Second, the performs are carried into the machine automatically by the conveyer; third, the performs are carried through the preheater and then into the mould and are blowed ; fourth, the finished bottles come out from the machine directly.
Technical Parameters:
Model Information |
| WM-1800B | WM-3500B | WM-5500B |
Clamping Force |
| 180KN | 370KN | 565KN |
Clamping Stroke |
| 120-175MM | 120-175MM | 80-130mm |
Max. Stretching Stroke |
| 370MM | 370MM | 370mm |
Bottom Moving Stroke |
| 70MM | 70MM | 0-70mm |
Number of Cavities |
| 2 Cavity | 4 Cavity | 6Cavity |
Theoretical Output |
| 2000 BPH | 4000 BPH | 5500BPH |
Max. Mould Thickness |
| 250MM | 250MM | 300mm |
Space Between Tie Bars |
| 400*380MM | 640*380MM | 780x380mm |
| ||||
Voltage Standard | 380v/3PH/50Hz or special order | |||
Number of Heating Zone |
| 2 Sections | 4 Sections | 4 Sections |
Total Power (Full Loaded) |
| 28KW | 60KW | 75KW |
| ||||
Max. Container Volume |
| 1.5L | 1.5L | 1.5L |
Neck Diameter Range |
| 16-38mm | 16-38mm | 16-38mm |
Max. Container Diameter |
| 110mm | 110mm | 110mm |
Max. Container Height |
| 380mm | 380mm | 360mm |
| ||||
Low Air compressor |
| 10Bar | 10Bar | 10Bar |
High Air compressor |
| 30-40Bar | 30-40Bar | 30-40Bar |
| ||||
Blow molding machine |
| 2.1*1.5*2.0m | 3.55*1.5*2.0m | 4.25*1.5*2.0m |
Preform Autoloader |
| 1.1*1.2*2.2m | 1.1*1.2*2.2m | 1.1*1.2*2.2m |
Net Weight |
| 2T | 3.5 T | 4T |
