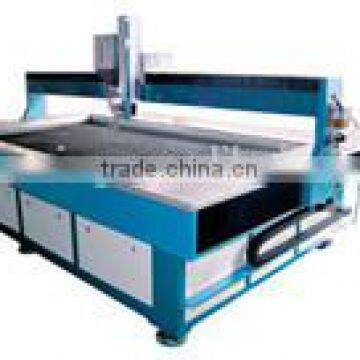

300mpa/380mpa/400mpa/420mpa water jet cutting machine

The technical parameters of water jet cutting machine:

PICTURES	DESCRIPTION	FOB PRICE/PC USD	WOOD PACKAGE
	High precission, High quality, Long life, Friendly Environmental working, no pollution, No material waste		Extra cost added
Range of work	3000×8000mm
Z Lifting stroke	150mm
Repositioning Accuracy	±0.02mm
Lead screw	From Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts.
Lead rail	From Taiwan to ensure high-precision, stable drive and durable in use for fabrication of parts.
shield	Stainless Steel
Discretionary security protection	Super travel limit protection function
	Special design of the shield for better waterproof and sandproof, which makes the machine durable in use and graceful in appearance.
system	windows W7, professional water cutting software: NC studio V9.30
NC computer configuration	True colour LCD 17 inch(cpu: yonah 2.6GHz, RAM: 2G, mainboard: GUANMING 945, HDD: 320G, DVD, USB...)
Motor	AC servo motor  from Taiwan
Drive	AC servo drive from Taiwan(TECO)
Others	Simply and convenient in operation
Max discharging capacity	3.7L/MIN
Pressure control	The operating pressure can be adjusted manually at will and the cutting speed can be adjusted at will.
Filter system	Fine three-layer filter system makes higher degree of purity of the water for cutting: 5μ m/1μ m/0.45μ m, which highly prolong the service life of all parts of the high-pressure system.
Discretionary security protection system	OP Power-off protection for low-pressure system
	High-pressure safety vavle equipped on high-pressure system, which has self-destruction safety  for over pressurization
	Electronic display and OP safety
	The hydraulic system is equipped with oil temperature detecting PD, which will auto alarm when the oil temperature exceeds 60℃
	Thorough filter system and discretionary security protection system: double filter of the hydraulic system guarantees safety
	The system has multiple alarm and safeguard, which will auto stop once there comes alarm.
	The high-pressure pipe lines are solid cone seal, which is good in sealing and safe and reliable
	Dynamic packing is equipped with high-pressure sealing ring made of imported high-strength nylon, which has service life of 400 hours.
Main motor power	37KW
Hydraulic oils	Antiwear hydraulic oils 46#(ambient temperature 15-40℃)   (Excluded)
High pressure water switch	Pneumatic valve, which makes moment open and moment(delayed) shut of the high pressure water
	CNC miscellaneous functions makes autocontrol of the high pressure water
	Blockage pressure can be adjusted at will and realizes drilling in low pressure
	The quick-wear parts are easy to be replaced
Sand control valve	Self-absorption type sand handling
	Pneumatic vavle overcomes sand blocking and breaking caused by magnetism of the solenoid vavle
	Manual adjustment for sand flow
	CNC miscellaneous functions makes autocontrol of ABRA
Sand hopper	Side-attached sand hopper
	Side mounted window to watch consumption of ABRA, prompting the operation staff when to replenish sand
Max peassure	380MPA
Cutting materials	Glass,Tile,Marble,Granite,Aluminum,Stainless Steel, etc
Cutting thickness	Max 100mm
Cutting speed	Accordingly

The company starts from 20 years before, and his initial major is MOULD MARKING,And after that the company start production of  engraving machine parts and whole machines, plastic parts injection, and etc.

Please be kindly noted that the company is one MANUFACTURER and not only a assembly place, as the company has workshop and Machinery equipments to produce small and big parts of engraving machine, and the company also supply the self-produced parts to MORE COPANIES that assemble ENGRAVING MACHINE from China and World.

And now the company mainly produce and supply the following products and service:

1. Mould making

2. Engraving machines (include Woodworking engraving machine, stone engraving machine, advertising engraving machine, laser engraving machine, metal engraving machine, waterjet cutting machine, etc.)

3. Engraving machine parts production and supplying

4. Plastic parts injection

With more years experience, techincal, and quality assurance, and based on more years production basis, the company welcome and glad to cooperate with customers all over the world. Mutual benefits based on friendly cooperation is the company's aim.

REMAKRS

NOTE:

1. All prices are based on FOB QINGDAO basis.

2. MOQ  is 1pc

3. Payment: 40%-100% tt deposit, and if have balance should be paid before shipment.

4. Delivery: Around 25-35 days.

5. All prices are subject to final confirmations.

6. Main specs change without further notice.
