Pulp and Paper Equipment/ Pulp agitator

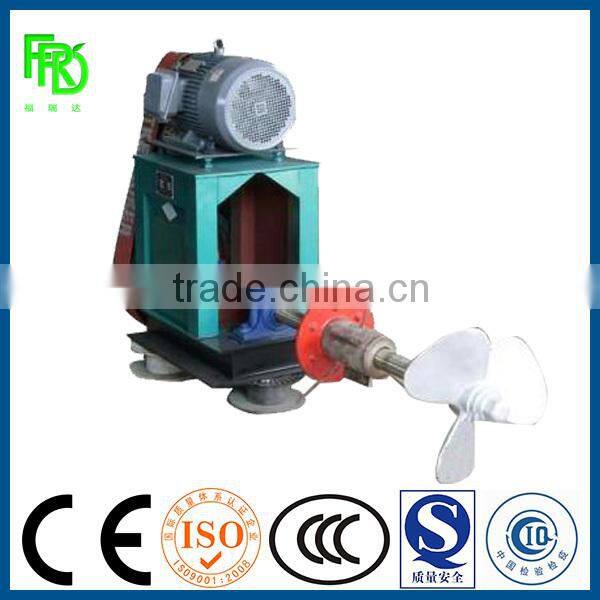

The side entry mixer comprises the impeller, mixer body, main shaft, connecting ring and bearing. It is driven using a V-belt and lubricated using a pressure washer.
This side entry agitator, known as a horizontal agitator or mixer, features a reasonable design, and is easy to maintain. It also ensures a 20-30% increase of the mixing efficiency
over traditional pulp mixing machines.
Technical Parameters of Side Entry Mixer
Model | FRD500 | FRD700 | FRD750 | FRD1000 | FRD1250 |
Square chest volume (m3) | 12-15 | 40-60 | 60-70 | 70-80 | 100-120 |
Washing chest volume (m3) | 15-25 | 35-40 | 40-50 | 50-60 | 70-80 |
Pulp consistency (%) | 4-7 | 4-7 | 4-7 | 4-7 | 4-7 |
Impeller diameter (mm) | 500 | 700 | 750 | 1000 | 1250 |
Speed (r/min) | 346 | 302 | 302 | 200 | 200 |
Motor (Kw) | 7.5 (5.5) | 11 (5.5) | 15 (7.5) | 22 (15) | 30 (18.5) |
Weight (Kg) | 540 | 620 | 680 | 1300 | 1600 |
Turn-key Projects
We can integrate the Paper Machine with a very deep experience in stock preparation supplying projects on the Turn-Key basis.
Paper Machine including:
Fine Paper Machine
Testliner Paper Machine
Kraft & Fluting Paper Machine
Coated/Uncoated Board Machine
Crescent Former Tissue Machine
Suction Former Tissue Machine
Fourdrinier Tissue Machine
Cylinder Former Tissue Machine
Stock Preparation including:
OCC Line
Deinking Line
Virgin Pulp Line
Broke Line
Q1: What is guarantee terms ?
A1: According to the international practice, performance and mechanical guarantee shall be for 1 year from the successful commissioning or 1.5 years from the date of bill of lading.
Q2: What is the production time ?
A2: Normally 2- 3 months, it depends on the machine type and scope of supply. But we can arrange the partial shipment according to customer’s foundation construction schedule.
Q3: Do you provide the inspection report of equipments ?
A3: Yes, we shall inspect the equipment and issue the Exworks Quality Certificate as well as the Product Inspection Report.
Q4: What is the standard packing for the machine?
A4: Normally wooden cases with fumigation. Unless otherwise specified, the equipment shall be packed in new and strong wooden cases and necessary measures shall be taken to protect the equipment from moisture, rain, rust, corrosion, shock and damages so as to make the equipment withstand repetitious handling, loading and unloading as well as long distance ocean and inland transportation.
Q5: If OEM services available ?
A5: Yes. We can make the machines under customer’s brand and logo.
Q6: What data/specification I shall provide for getting the quotation?
A6: Please provide the following main data of your required machine, we can make an offer to you accordingly.
Impeller Diameter (mm) |
|
Paper grade |
|
Pulp Chest Volume (m3) |
|
Motor Power (kW) |
|
Stock Consistency (%) |
|
Impeller Revolution (RPM) |
|
Raw Materials |
|
Application |
|
