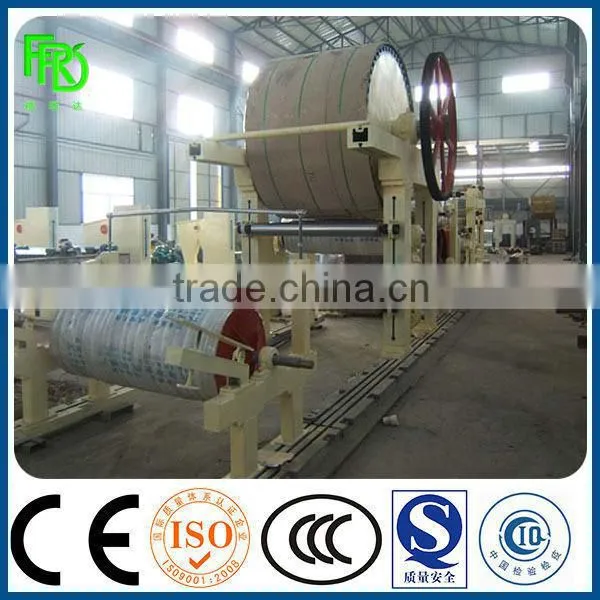

Small Scale Paper Machine Production Base Paper of Toilet Paper/Small Toilet Paper Plant

Small scale paper machine production base paper of toilet paper/Small toilet paper plant

Descriptions of Machine To Make Toilet Paper
1.Wohle line is cheap.
2.Products: toilet paper and tissue paper, napkin, a handkerchief
3.Driver type: frequency control and sub step transmission

Specifications of Machine To Make Toilet Paper
1.Output paper :tissue paper
2.Raw material: waste paper
3.Capacity: 0.8-1ton per day
4.Net paper width:787mm
5.Output paper weight: 13-40g/m2
6.Rail gauge:1300mm
7.Working speed: 40-100m/min
8.Drive way: Alternating current, speed control, section driver
9.Cylinder section:Φ1000mm×1100mm stainless steel cylinder mould 1set,
   Φ260mm×1100mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.
10.Dryer section:Φ1250mm×1100mm cast iron alloy dyer can 1 set, Φ300mm×1100mm
     touch roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.
11.Paper cutting section: 787mm slitting machine1set .
12.Drive and control section: Alternating current , speed control , section drive

Features of Machine To Make Toilet Paper
v This machine adopts PLC computer programming technology, stepless variable
   speed pneumatic hydraulic brake, man-machine interface operation
v Easy operation, superior performance, can work continuously don't ask, don't break
v Spiral floating punch, low noise, the use of harmless broken paper, is a production and
   processing all kinds of cheap health ,Rewinding paper ideal equipment
v This paper simple operation on board.Paper automatic positioning, the paper transport
   mechanism are equipped with elastic adjusting device.
v Rewinding process evenly.Through compaction and adjusting device effectively solves
   the tightness of rewinding uneven phenomenon.
v automatic roll, synchronous cutting paper, make continuous work
v spiral perforated knife adopt pneumatic floating control, cutting tool adjusting time, improve
   efficiency, prolong the service life of blade.
v finished product number, diameter, weight, random adjustment, easy to operate.

All equipments

Package: Carton,standard export box ,also can be adjusted at your demand
MOQ: 1 set
Shipment: By seaPort: Main ports of China
Delivery time: 20 days after formal order,according to your quantity
