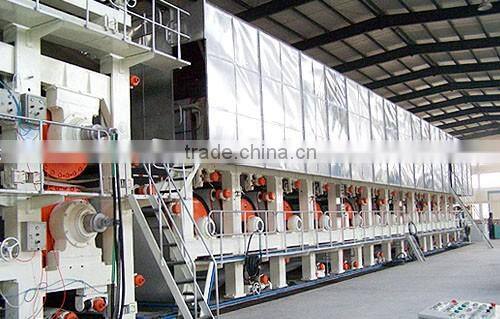

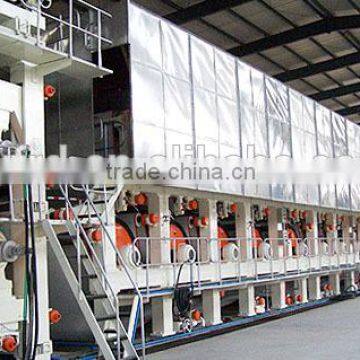

3600mm Kraft Liner Paper Making Machine With 120T/D
I.Technical parameter
1.Raw material:Recycled paper
2.Output paper:Kraft liner paper
3.Output paper weight:110-180g/m2
4.Capacity:120-140T/D
5.Wire width:4000mm
6.Net paper width:3600mm
7.Working speed:200-240m/min
8.Designing speed:300m/min
9.Rail gauge:4600mm
10.Drive way:A/C inverter speed control, sectional drive.
II.The main structure with spec
1.Wire part
20 m fourdrinier table covered with stainless steel board, head box made of (304)stainless steel.Vacuum couch roll 900mm×4000mm×4600mm,made by stainless steel .
2.Press part
2 sets of press rolls in large diameter.Top roll:2 pcs of natural marble roll at 1350mm×4000mm×4600mm.Bottom roll:2 pcs of rubber roll at 1350mm×4000mm×4600mm, rubber shore hardness 95ºC±2, with pneumatic pressure device, 8 sets pneumatic felt adjusting device, and 8 sets electric felt tightening device.
3.Dryer part
26 pcs of 1800mm×4000mm×4600mm alloy dryer cylinder with 26pcs of blade.
1 set 3600mm sizing machine,the sizing roll.
III.Main machine structure
| No. | Item | Qty(set) |
| 1 | 3600mmFourdrinier and multi-cylinder paper making machine | 1 |
| 2 | Semi-closed dryer hood | 2 |
| 3 | Axial-flow ventilator | 6 |
| 4 | 16 type roots vacuum pump | 3 |
| 5 | Vacuum suction box | 9 |
| 6 | Sizing machine | 1 |
| 6 | Paper scanning machine | 1 |
| 7 | 3600mm Horizontal pneumatic winding machine | 1 |
| 8 | 3600mm Frame type underfeed rewinder | 1 |
| 9 | Air pump | 4 |
| 10 | Air tank | 2 |
| 11 | Frequency conversion controlling cabinet | 1 |
| 12 | The whole set of working platform | 1 |
| 13 | 10 T Boiler | 1 |
| 1 | 10 m Slat conveyor | 1 |
| 2 | 15m3 D type hydra-pulper | 1 |
| 3 | High density sand cleaner | 2 |
| 4 | Dishing seperator | 2 |
| 5 | Fiber separator | 1 |
| 6 | 20m2 decker thickener | 2 |
| 7 | 1.6m2 pressure screen | 2 |
| 8 | Medium density sand cleaner | 6 |
| 9 | 1m propeller | 8 |
| 10 | 380 double disc pulp refiner | 4 |
| 11 | 1.6m2 Pressure screen | 1 |
| 12 | -150 pulp pump | 12 |
| 13 | -200 pulp pump | 6 |
| 14 | -300 pulp pump | 4 |
| 15 | -350 water pump | 2 |
| 16 | Electric operating cabinet | 12 |
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments;
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;
Henan Qinyang Friends machinery manufacturing co.,ltd has developed into a much more competitive company since establishment in 1983.mainly manufactures all kinds of paper machines,toilet paper production line,kraft paper
production line,copy/writing paper production line.We have 4 paper machine producing workshops and more than
110 workers.our factory total area is 20,000 square meters.
Our company superiority: 1.more than 30 years producing experience. 2.alibaba1year of gold supplier. 3.25 engineers with rich experience. 4.have passed CE,SGS,ISO quality system certification and all manufacure processes are conducted by the standard strictly.
Technical support: 1.Free consulting services, help the user to do project feasibility analysis.2.Series of products related information for customer reference. 3.According to customer's actual situation, to provide equipment design and installation drawings and production of the required information. 4.Production of various materials used for grades, technical performance indicators, requirements, suppliers, and reference price and related information. 5.Common faults and trouble shooting in the use of production. 6.Can send technicians to install test equipment and design.
