Product Application
3200 mm fourdrinier paper kraft paper making corrugated paper machine
Technical Data of the Kraft Paper Machine
1.Raw material: recycled paper2.Output paper: fluting paper
3.Output paper weight: 90-150g/m2
4.Net paper width: 3200mm
5.Capacity: 150 tons /day
6.Drive way: A/C inverter speed control, sectional drive
Main equipment structure
1.Wire part:fourdrinier table covered with stainless steel board, air loaded head
box made of stainless steel.

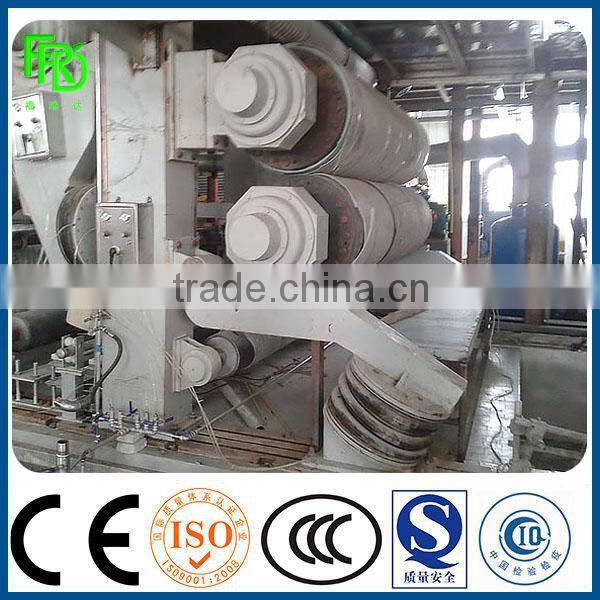

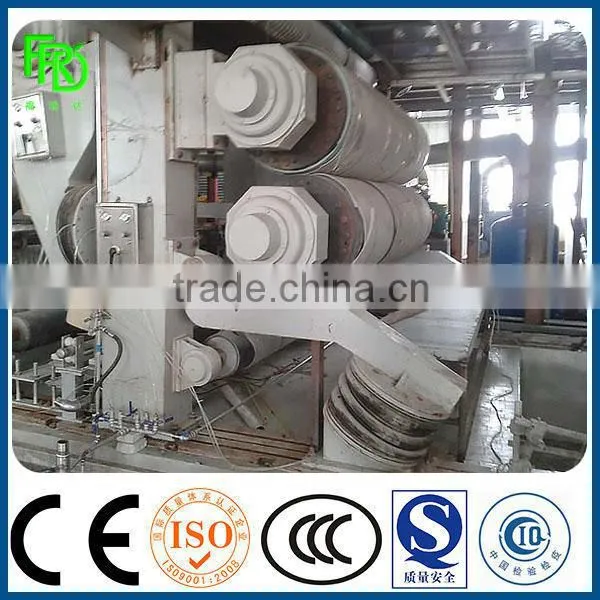

2.Press part:2 sets of press rolls in large diameter.

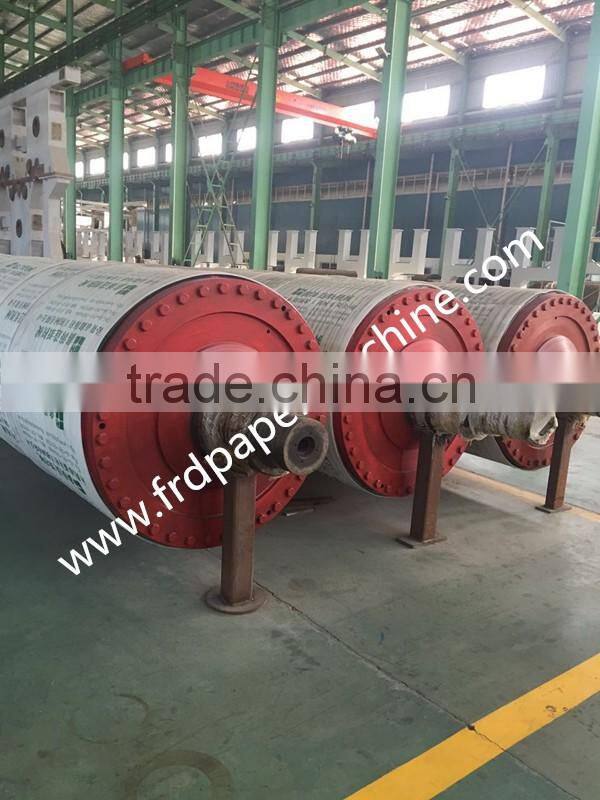

3.Dryer part:30 pcs of 1800mm×3750mm×4300mm alloy dryer cylinder
4.Winding part :1 set of 3200m horizontal pneumatic winding machine
Main equipments of the Kraft Paper Machine
The Process Flows of Kraft Paper
Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump—bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve
——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanke
——paper making machine——drying——roll paper——the big finished jumbo paper ——
process machine kraft paper (plate paper slitting machine ——kraft paper machine —— kraft paper)
1.Detailed design of factory or workshop
2.Technical consultation
3.Installing and testing the whole production line
4.Project evaluation
5.Training engineers and workers
6.Supplying spare parts for long time
