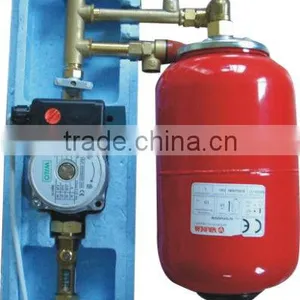

Working Station for Split Solar Collector System Include Circulation Pump,intelligent Controller,expansion Vessel
US$ 100 - 1,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Application:
Solar Working Station
Rated Voltage:
Other, 220V
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Intelligent Controller for Solar Water HeaterUS$ 100 - 200MOQ: 1 Piece -
58*1800mm Heat Pipe Solar Vacuum Tubes Solar CollectorUS$ 1.5 - 2MOQ: 1 Set
-

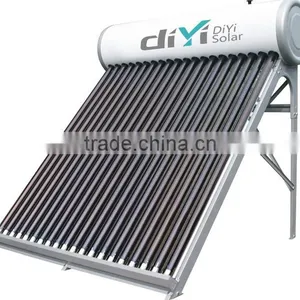

DIYI Non Pressure Solar Water HeaterUS$ 105 - 255MOQ: 1 Unit
-
Imetro Low Pressure Vacuum Tube Solar HeaterUS$ 300 - 1,000MOQ: 1 Set
-
Integrative Pressurized Solar Water Heating With Copper Heat PipeUS$ 300 - 1,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Application
Solar Working Station
Rated Voltage
Other, 220V
Working station
Specifications
Our products have obtained the national invention patents, and passed the European CE certification.

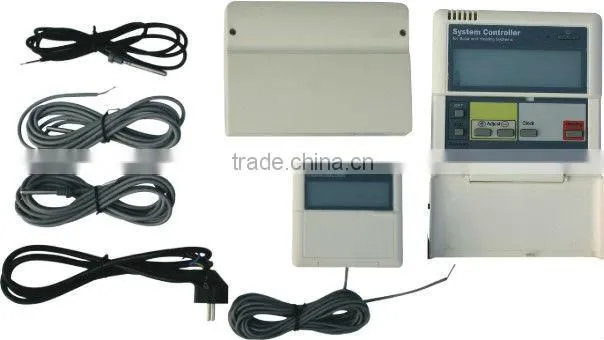

Main technical data:
1. Dimension: 380×220×140mm
2. Input voltage: 200V~240V AC or 100V~120V AC
3. Power: ≤3W
4. Accuracy of temperature measuring: ±1°C
5. Range of temperature measuring: PT1000 : 0~199°C NTC10K: 0~99°C
6. Input signals:
1 x PT1000 sensor temperature probe ≤500°C, silicon cable ≤280°C;
2 x NTC10K sensor temperature probe≤135°C, PVC cable ≤105°C
7. Output signals:
1 x Auxiliary heating output (Max. load current: 12A)
2 x Relay output (Max. load current: 3A)
8. System design pressure: 1 MPa
9. Safety valve respond pressure: 0.6 MPa

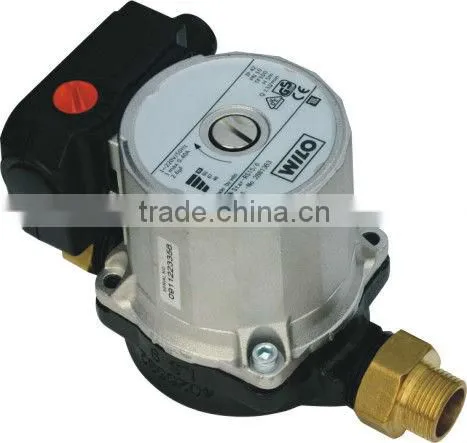

10. WILO pump model: RS15/6
11. Screw coupling: 1/2
12. Pipeline Material: Brass
13. Secondary display screen (For selection)
14. LCD-display
15. Range of environment temperature: -10~50°C
16. Water protection grade: IP40
Main functions:
1. Time display
2. Temperature difference circulation
3. Storage tank overheating protection
4. Emergent stop of system overheating
5. Frost protection of pipeline and collector
6. Three periods of time adjustable on pipeline circulation
7. Three periods of time adjustable on auxiliary heating
8. Holiday function
9. Anti-bacteria function
10. Three speed levels on circulation pump
11. Display flow rate
12. Display system pressure
