integrative pressurized solar water heating with copper heat pipe

Specifications

pressurized solar water heating
1,pressurized solar water heating has high efficiency
2,pressurized solar water heating

pressurized solar water heating

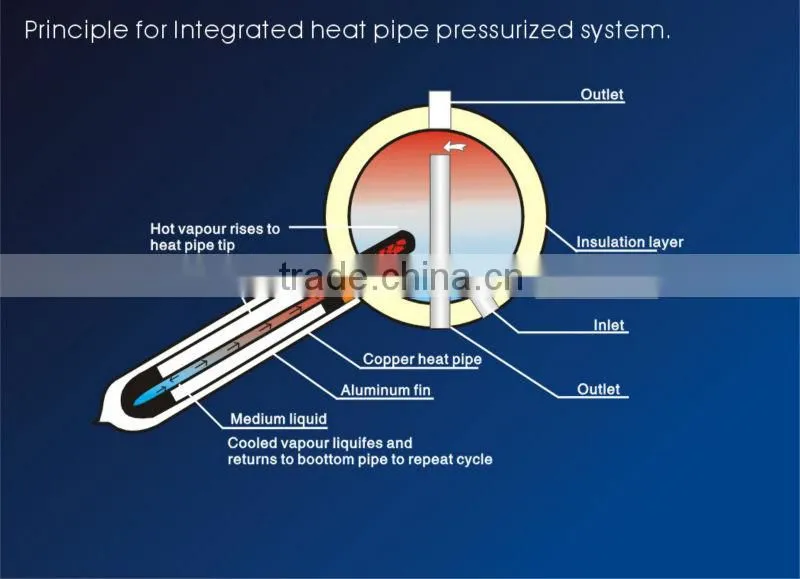

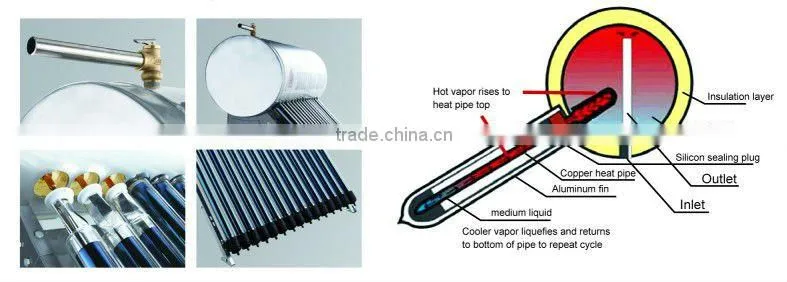

Work Principle of  pressurized solar water heating :

1) The operation of the solar collector is very simple.

2) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.

3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe

4) Solar energy storage: water is circulated through the header, via intermittent pump cycling.Each time the water circulates through the header, the temperatures is raised by 5-10C. Throughout the day, the water in the tank is gradually heated.



pressurized solar water heating Specification:



1) Reliable and efficient twin-glass solar tubes;

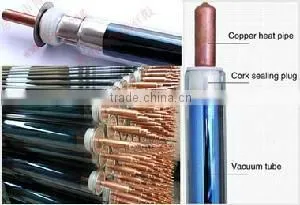

2) Copper heat pipes for rapid heat transfer;

3) Easy plug-in installation;

4) Free maintenance;

5) Suitable for mains pressure water (up to 1.0 bar);

6) Corrosion resistant silver brazed copper header;

7) Aluminum frame;

 8) Powder coated (black, brown or silver) aluminum casing;

9) Stable solar conversion during the day;

10) The perfect solar collector for domestic solar water heater systems;

11) Ideal for commercial solar water heating applications.



pressurized solar water heating Load quantity





	Model	Solar vacuum tube		Absorber Area(M2)	Tank Capacity	Loading Qty/sets
		Qty/Pcs	Size/mm			20GP	40GP	40HQ
	DIYI-IP01-15	15	Ø58*1800	2.04	150L	41	90	112
	DIYI -IP01-18	18	Ø58*1800	2.26	180L	34	75	93
	DIYI -IP01-20	20	Ø58*1800	2.72	200L	31	68	84
	DIYI -IP01-24	24	Ø58*1800	3.27	240L	26	57	70
	DIYI -IP01-30	30	Ø58*1800	3.91	300L	20	45	56
