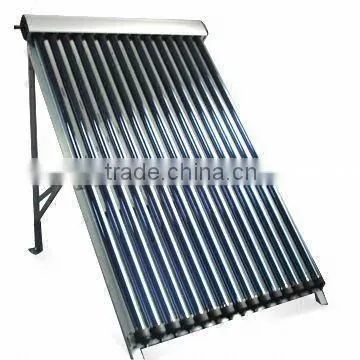

Heat Pipe Solar Collector System With Expansion Tank,intelligent Controller and Circulation Pump

Specifications

heat pipe solar collector system

Heat Pipe Solar Collector  System Work Principle:                                                                  1) The operation of the solar collector is very simple.

 2) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.

 3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe

4) Solar energy storage: water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header, the temperature is raised by 5-10C. Throughout the day, the water in the tank is gradually heated.

heat pipe solar collector system  Specification:

a. Module design, arbitrary combination, harmonizes with the building perfectly

b. Intelligent control and automatic operation

c. Anti-freeze: Using the anti-freezing liquid as the medium and the controller has the anti-freezing function

d. Multifunction: bathing, washing, domestic heating etc

e. Work at anytime and enjoyable.

f. Material of Model

heat pipe solar collector system  Detailed introduction:

1)  The pipeline is made of red copper and conducted by heat transfer medium liquid

2) Temperature preservation is equipped with standard electric water heater setting, automatic temperature control exchanger, and increased anode magnesium bars sticking to prevent furring

3) The insulating layer uses polyurethane bulk bubble and has a good effect of temperature preservation

4) Water tank (interior): Stainless steel inner tank

5) Manifold : aluminum alloy out casing & red copper flow passage

6) Glass tube: new trivalent element heat tube, borosilicate glass 3.3

7) Solar working station

8) With heat pipe: anti-freezing > -35 degrees centigrade

9) Water capacity: 150L, 200L, 250L, 300L, 500L

10) Pressure: 6 Bars

11) Daily efficiency: >= 55%(>=42% in winter)

12) Heat preservation: 72h to 80h

13) Electric heater: 1.5Kw to 3Kw

heat pipe solar collector system  Measure and load quantity

Solar Collector System Installation pictures:

 Our solar thermal collector System export to many nations,such as UK,Spain,Italy,Ireland,Germany,USA and so on,

 And our factory engaged in this item for 15 years.
