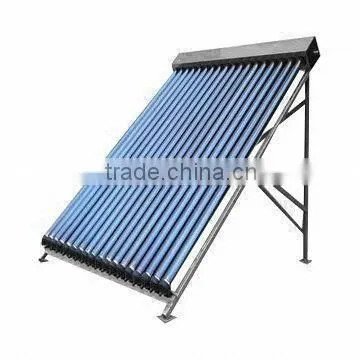

Split Solar Collector With Solar Keymark

Specifications

Solar Collector Description

3D Product Display:

Solar Collector Characteristics:

1. All the solar collector pipeline is made of red copper and conducted by heat transfer medium liquid. With the heat pipe in the vacuum tube, so no water will flow in the vacuum tube 2. The solar collector manifold uses aluminum alloy for exterior, red copper for interior, also with fashion design. 3. Withstand high pressure when it is working 4. It can be combined arbitrarily to meet the demand of large water consumption, and also could be combined with existing pipeline 5. Each tube can work alone, so the solar colletcor can work even one tube is broken and easy to change if necessary

Solar Collector Technical Parameters:

Manifold(interior):

Red copper Manifold(exterior): Aluminum alloy

Aluminium fin: 1600 mm full length

Heat Pipe: Red copper

Heat insulation layer: Eco-friendly rockwool 50mm

Vacuum tube: 58*1800mm SS-CU-AIN/ALN coating

Bracket: Aluminum alloy 1800mm 0-50 degree

Hail resistance: 25mm

Max pressure: 6 bar

Anti-freezing: > -35 degree

Daily efficiency: ≥ 55%
