Solar Keymark and SRCC approved heat pipe solar thermal collector
Solar Collector Feature:
|

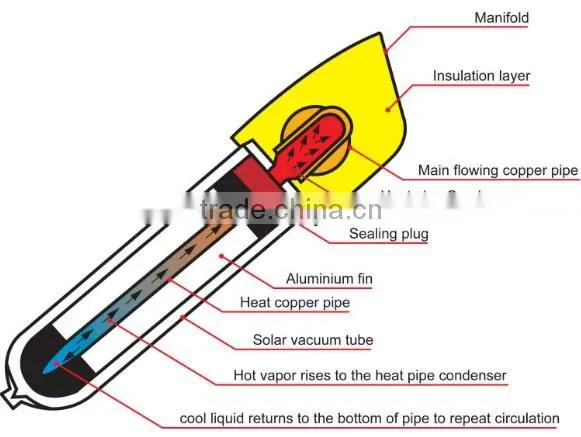

1) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat. 2) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe. 3) Solar energy storage: water is circulated through the header, via intermittent pump cycling.Each time the water circulates through the header, the temperature is raised by 5-10C.Throughout the day, the water in the tank is gradually heated. |
| Item No. | Solar Vacuum Tube | Absorber Area(m2) | Loading Qty / sets | |||
| qty / pcs | size / mm | 20GP | 40GP | 40HQ | ||
| DIYI-C01-10 | 10 | Φ58X1800 | 1.7X1.12 | 140 | 262 | 323 |
| DIYI-C01-12 | 12 | Φ58X1800 | 1.7X1.16 | 134 | 254 | 313 |
| DIYI-C01-15 | 15 | Φ58X1800 | 1.7X1.26 | 120 | 245 | 291 |
| DIYI-C01-20 | 20 | Φ58X1800 | 1.7X1.64 | 92 | 187 | 222 |
| DIYI-C01-24 | 24 | Φ58X1800 | 1.7X2.10 | 82 | 165 | 195 |
| DIYI-C01-25 | 25 | Φ58X1800 | 1.7X2.12 | 80 | 163 | 193 |
| DIYI-C01-30 | 30 | Φ58X1800 | 1.7X2.38 | 69 | 140 | 166 |
Technical Parameters:
Manifold(interior) |
red copper |
Manifold(exterior) |
aluminum alloy |
Flow channel size |
3/4 |
Heat insulation layer |
Rockwool 50mm |
Aluminum fin |
1600 mm full length |
Condensor diameter |
14mm |
Vacuum tube |
58*1800mm, SS-CU-AIN/ALN coating |
Bracket |
Aluminum alloy ,20/25/38/45/50 degree |
Hail resistance |
25mm |
Max pressure |
6 bar |
Heat pipe |
Anti-freezing > -35 °C |
Daily efficiency |
≥55% |
1)Experienced Staff
2)Competitive Price
3)Prompt Delivery
4)Small orders acceptable
5)Superior Service
We hope to cooperate with more customers for mutual development and benefits.
