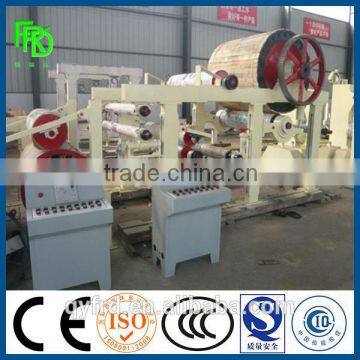

Machines for Making Toilet Paper / Toilet Paper Making Production Line

Process Flow Diagram

Raw materials (waste paper)——pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper —— process machine

1. Toilet paper machine (rewinder machine——cutting paper machine——small roll paper)

2. Napkin paper machine(plate paper slitting machine —— napkin paper machine —— napkin   paper

3. Facial tissue paper (plate paper slitting machine —— facial tissue paper machine —— facial tissue paper

Main Equipment Parts:

1. Cylinder part: φ 700mm×1100mm stainless steel cylinder mould 1set, φ 220mm×1100mm couch roll 1set,coated by rubber, rubber shore hardness 38℃±2.

2. Dryer part: φ 1000mm×1100mm alloy dryer can 1 set, 1group scraper knife. φ 260mm×1100mm touch roll 1set, coated by rubber, rubber shore hardness 90℃±2.Mechanical loading device.

3.Winding part: φ 900mm×1100mm sweat cylinder (1pc), φ 280mm×2250mm fly rubber roll( 1pc ).rubber HSD75°±2. winding on the sweat cylinder.Equipped with the 250 speed reducer(1 set)

4. Rewinding and cutting part: matching 787mm rewinding and perforating machine, pacial tissue cutting machine.

5. Drive and control part: adopting AC frequency conversion speed, drive step by step.

Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.

Our company has perfect service system. We have engineer team with rich practice experience, who can supply professional service during the whole deal, including technbology consultation, design factory, project evaluation, detailed design of factory, installation and testing the whole production line, training engineers and workers.
