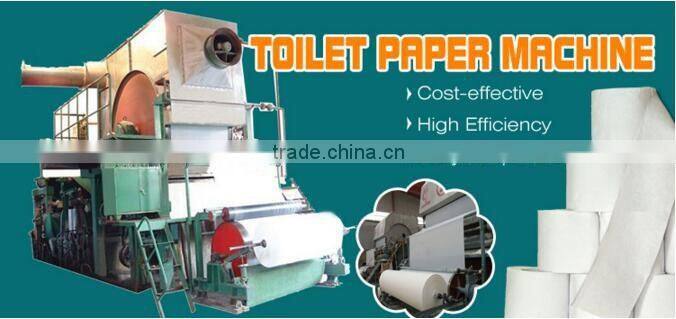

Small Scale Paper Machine /Tissue Paper Machine/toilet Paper Machine Line

 Small Scale Paper Machine /Tissue paper machine/toilet paper machine line

Specifications

1.Output paper :tissue paper

2.Raw material: waste paper

3.Capacity: 2-3ton per day

4.Net paper width:1092mm

5.Output paper weight: 13-40g/m2

6.Rail gauge:1800mm

7.Drive way: Alternating current, speed control, section driver

8.Cylinder section:Φ1000mm×1450mm stainless steel cylinder mould 1set,

  Φ300mm×1450mm couch roll 1set,coated by rubber,rubber shore hardness 38°C±2.

10.Dryer section:Φ1500mm×1450mm cast iron alloy dyer can 1 set, Φ350mm×1450mm touch

roll 1set,1group scraper knife. rubber shore hardness 90°C±2.Mechanical pressure device.

Main structure:

1. The cylinder wire section: Ø1000mm×1450mm cylinder mould one set, Ø350mm×1500mm couch roller one set, the Rubber hardness is Shore 380±2. Equipped with net-cage one set.

2. The dryer part: Ø1500mm×1450mm dryer one set, Ø350mm×1500mm touch roller one set, the Rubber hardness is Shore 950±2. Mechanical pressure.

3. The reeling section: Ø500mm×1450mm paper reeling roller one set, equipped with roll stand, roll bar two sets each.

Raw material

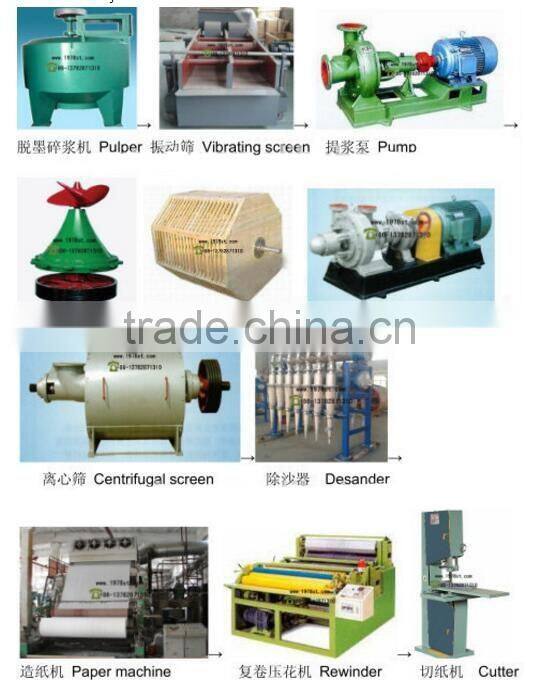

Paper-making flow charts

Finished products

Qinyang City Friends Machinery Equipment Co.,Ltd located in Qinyang City, Henan province, China, is one of leading paper machine manufacture,which specializes in pulp making machine, paper making machine and paper processing machine manufacturing.

Our company has perfect service system. We have engineer team with rich practice experience, who can supply professional service during the whole deal, including technbology consultation, design factory, project evaluation, detailed design of factory, installation and testing the whole production line, training engineers and workers

.

Pre-sales service
1.Help customers find the right product by professional technology andbusiness consultation
2.Provide plans of the machines installation freely
3.Could make customized products according to the clients requirements

4.We will online for 24 hours
After-sales service
1.Fast and saft delivery
2.Assisting our clients to bulid the equipment
3.Training the first-line operators on site
4.Regularly visit clients to solve production problems
