(1). Full automatic mineral water bottle making machine

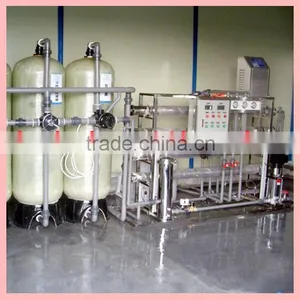

popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
(2)Full automatic mineral water bottle making machine details:
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
Model |
LYRO-250L |
LYRO-500L |
LYRO-1000L |
customized |
|
|
Pure water out -put |
250L |
500L |
1000L |
------- |
|
RO membrane |
4040type or 8040type |
||||
Pump brand |
Grundfos Vertical |
Chinese Vertical |
Horizontal Mutistage |
------- |
|
Power |
1KW |
1.5KW |
2.2KW |
3.0KW |
|
Voltage |
220V,50HZ,1 PHASE |
220/380V 50/60HZ 1.3PHASE |
|||
Controller |
Manual control |
Automatic control |
|||
reverse osmosis desalination equipment/industrial distilled quality water plant
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
(3)Operating Principle:
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
1. raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2. Silica Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid ,ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter ,ect.
4. Softener—using ion exchange resin to exchange "ions" of calcium and magnesium is the most common
and the easiest method of removing hardness of water and render the water suitable for utility purpose
5. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane,
The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter,
impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system--RO system is the main part of pure water treatment plant. The RO membrane's
desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacterias,
particles and 98% of organic.
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
(4) General features:
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
1) RO system automatic control for flush and backwash. With Auto water softener.
2) C.I.P. chemical cleaning system for RO membrane.
3) Chemical dosing port for unti-scaling and PH adjustment for optional choice.
4) UPVC pipe and fitting for low pressure part, SS304 pipe for high pressure part.
5) LG PLC control system with water level control
6) Auto pump protection for electric shortage, pressure protection, water level protection
RO membrane: Dow or Hydecanme
2) Pump: Nangfang
3) Ozone system
4) UV sterilizer
5) SS304 water storage tank
6) Chemical dosing system
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
popular reverse osmosis equipment/salt water process machine / popular reverse osmosis/salt water process machine
