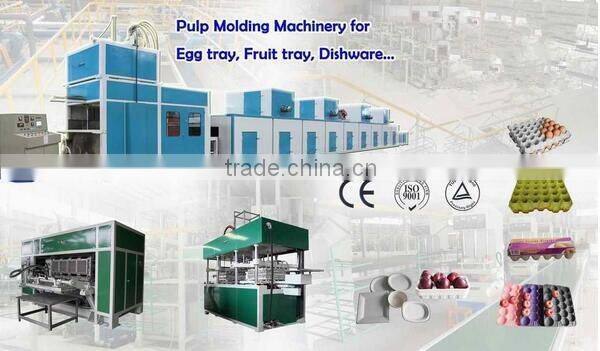

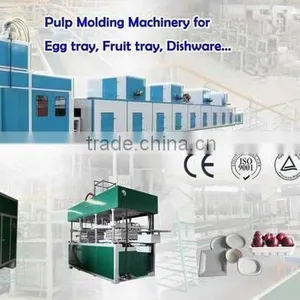

Full automatic paper pulp moulding machine/Egg tray production equipment
1. Production Info
Pulp Moulding Machine is known as egg tray line for using massively in produce egg tray.
Pulp Moulding Machine, which uses waste paper, cardboard, leftover material of paper mill, by hydraulic pulper, mix making a certain dense pulp, and pulp is absorbed by vacuum of special metal moulding to become wet products, through drying , and shaping to become finished products.
Pulp Moulding Line processing makes use of recycled water and does not lead to water or air pollution. Finished packaging products can be recycled after being used in storage, transport, and sales. After shredding, they are easy to be decomposed as paper, even if discarded into the natural environment.
Automatic pulp molding production lines can be mass production of various food container, egg tray, lunch boxes and so on.
The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.
2.Technology Parameters
Model |
HR-2000-6000 |
Forming width |
410-710MM(460-760MM materials) |
Forming length |
600-1220MM |
Forming height |
200MM |
Thickness of materials |
0.2-1.5MM |
Production power |
220-500times/hour(according to products) |
power |
380Vs/220Vs/50Hzs(Three mutually four lines) |
Furnace power |
18-35KW |
Required to install air pump |
20HP |
Mechanistic Dimensions |
L6800*W1600*H2650MM |
Net weigh |
3000KG |

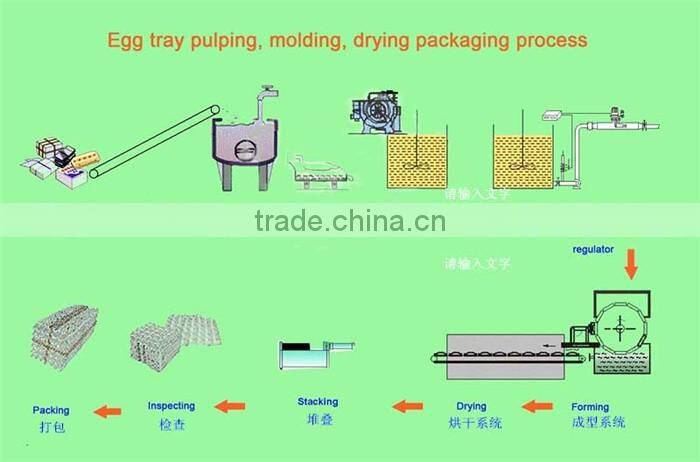

3.Details and operation flow diagram

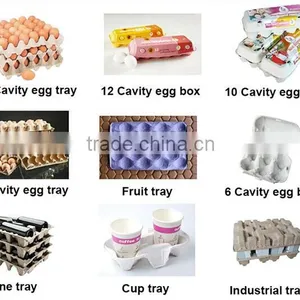

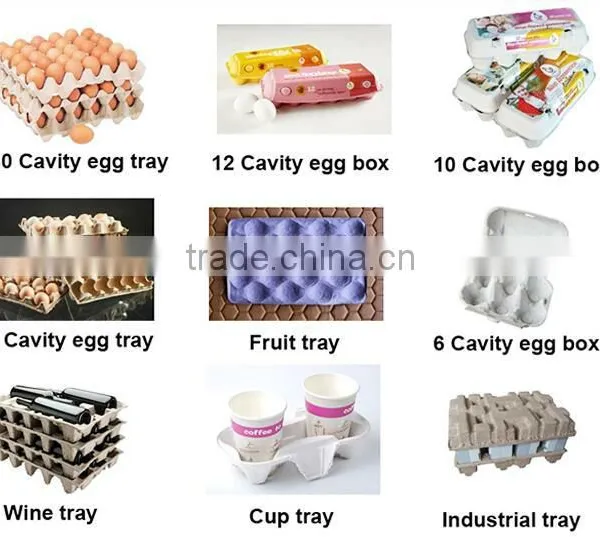

4.Production of different products only need to change different mould and raw materials, products as shown in the figure below.
