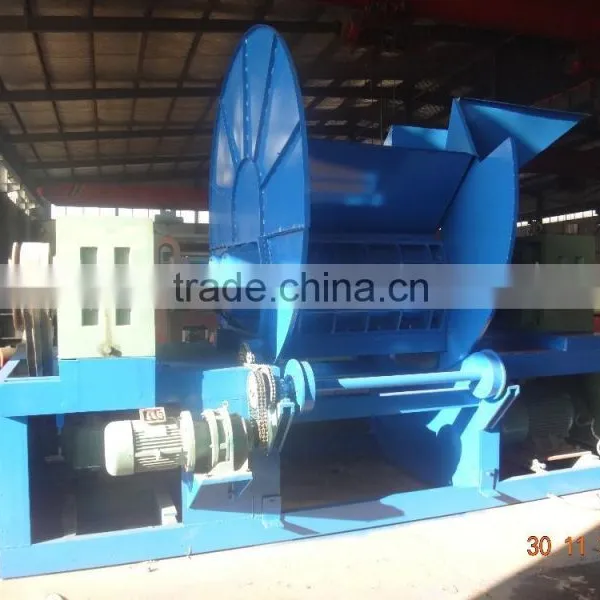

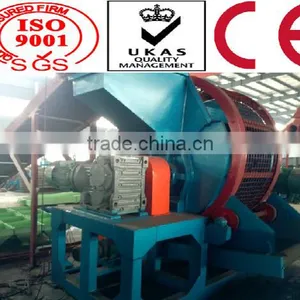

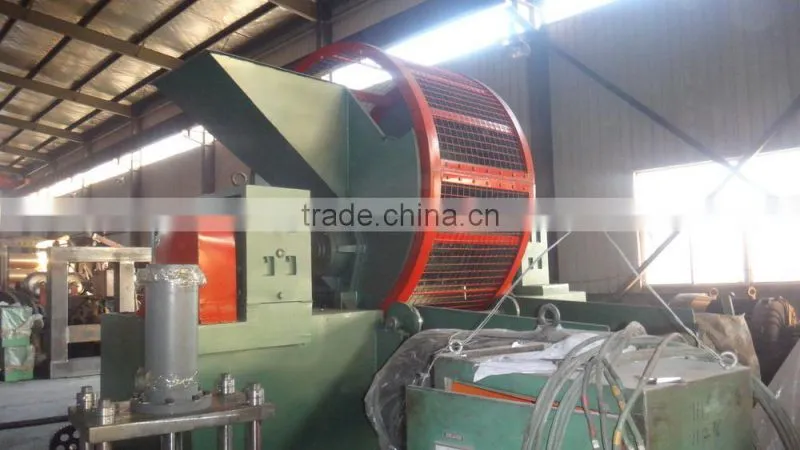

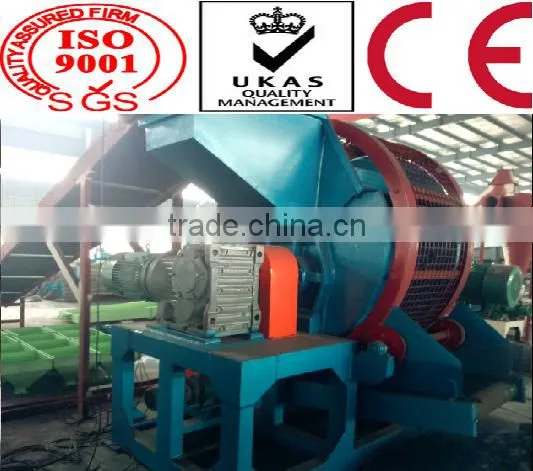

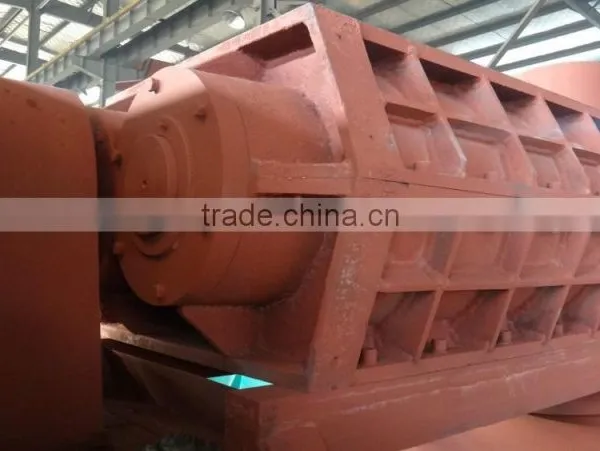

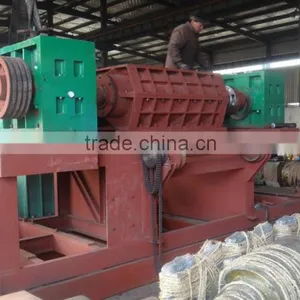

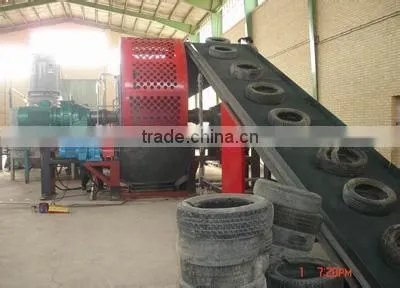

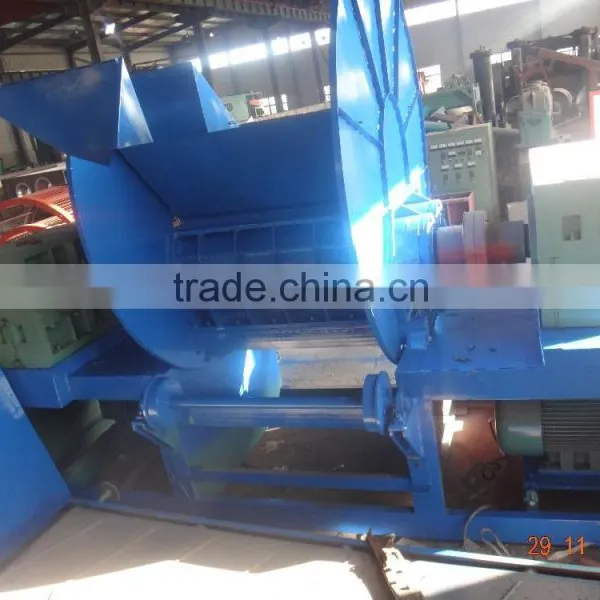

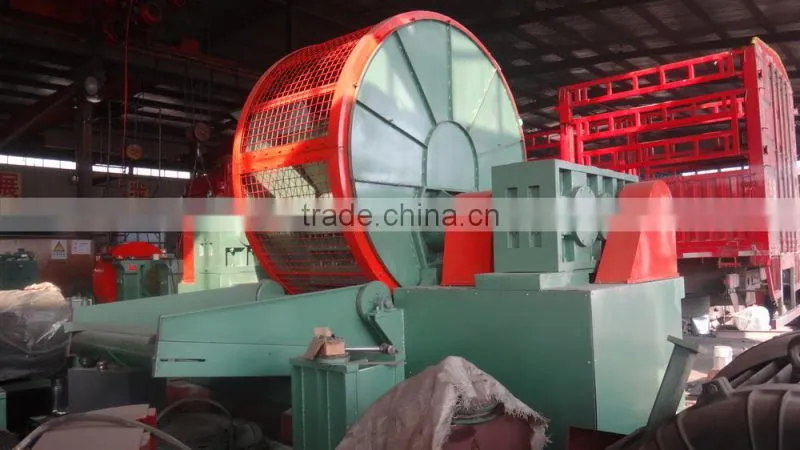

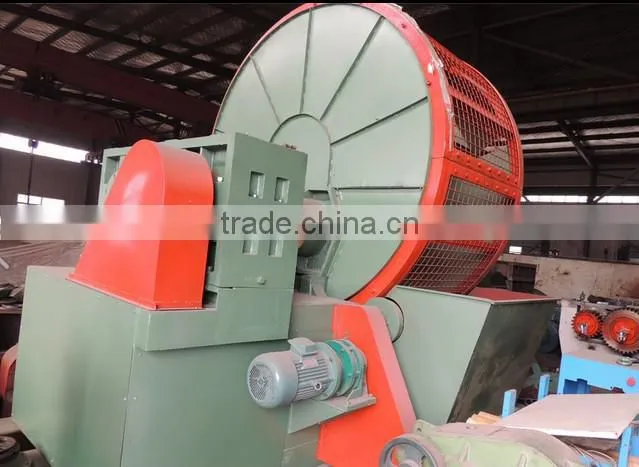

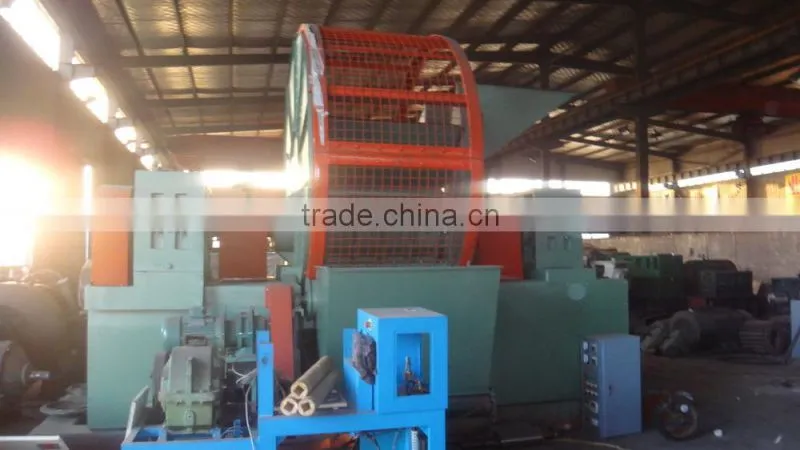

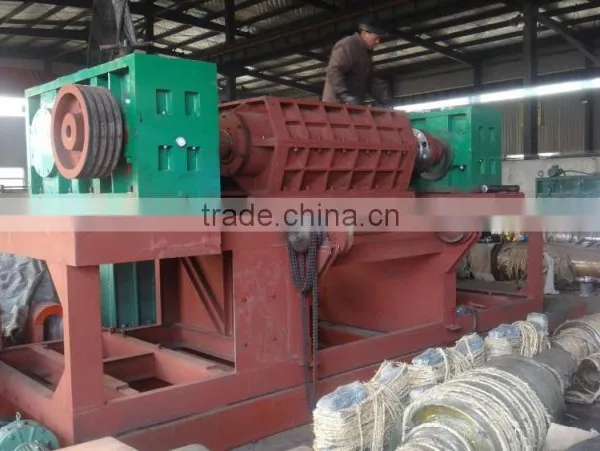

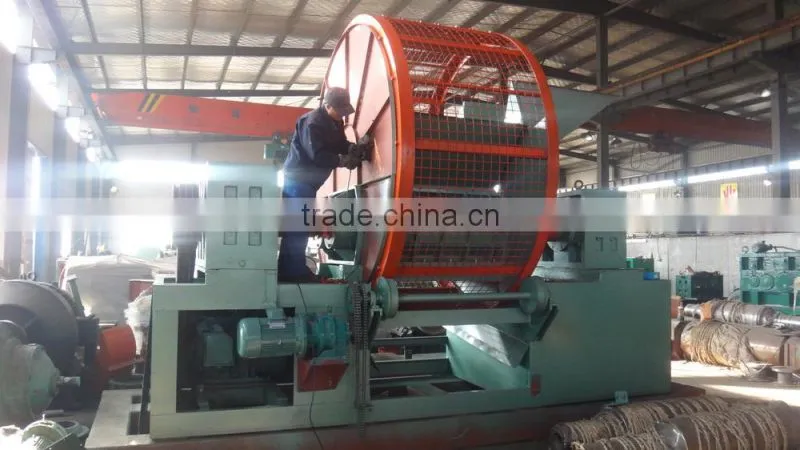

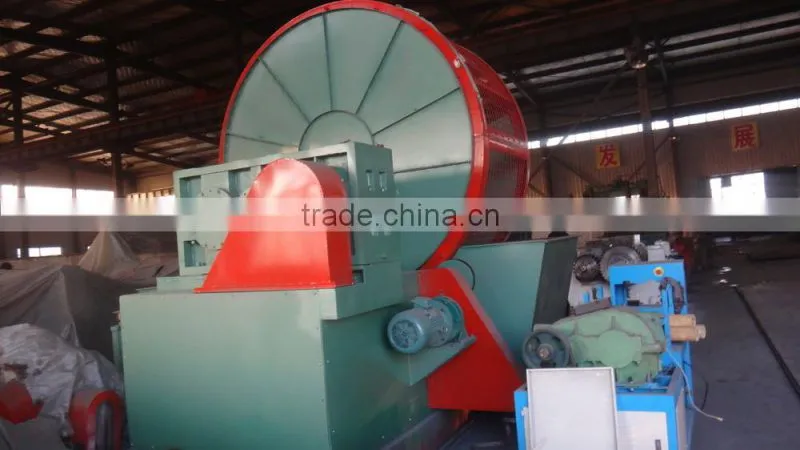

Waste Radial waste Tire shredder machine with 2000kg/h capacity tire shredding machine Tire cutting tool
Product Flow
double shaft tire crusher widely used for crushing of all kinds of scrap metals which including of zip-top cans, paint buckets, bicycles, diesel oil barrels, motorcycles, washing machines, shells of cars and regrigerators, electric closets, steel plate offal, (the underline parts should be shared first, then shredded), etc..It is easy maintenance, simple structure, and powerful capacity.
In the processing of crush, the rusts, paints and other waste materials which adhering to the surface of the scrap metals were separated, then under the working force of magnetic sorting devices the non-metallic wastes that mixed in the scrap metals were sorted out which including of non-ferrous metal, plastic and rubber, etc.. The final product that from the metal shredder machine is easily carrying and shipping, conveniently stell-making, shortening time of smelting, and greatly improve the efficiency of iron and steel smelting.
double shaft tire crusher mainly rely on impact of material to broken. The material enter into the crusher, suffered the impact and broken of the high speed rotary hammer, broken material obtained energy from hammer kinetic, with high speed to the frame body flap and at the same time material hit each other, broken by many times. The materials less than the sieving gap discharge from the clearance. Individual larger stores impact again by the hammer, grinding, extrusion and broken. Thus required size products are forced out. To avoid the wall wear and deformation, the cabinet interior are set with protection liners.
Features of double shaft Truck Tire Shredder

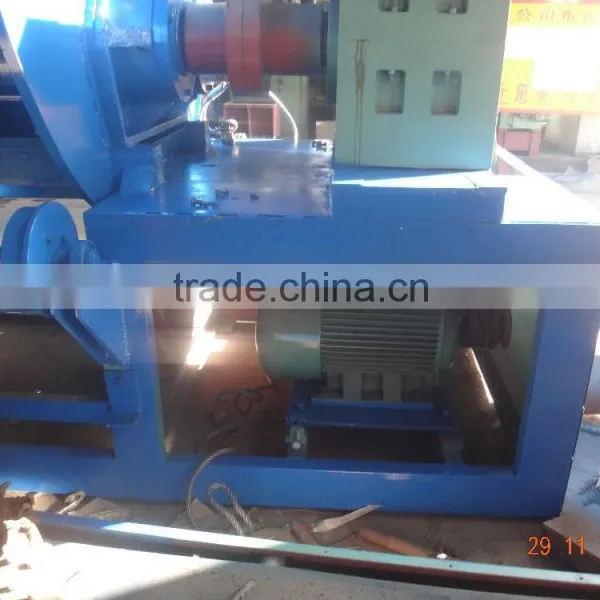

1. Geared motor drive.

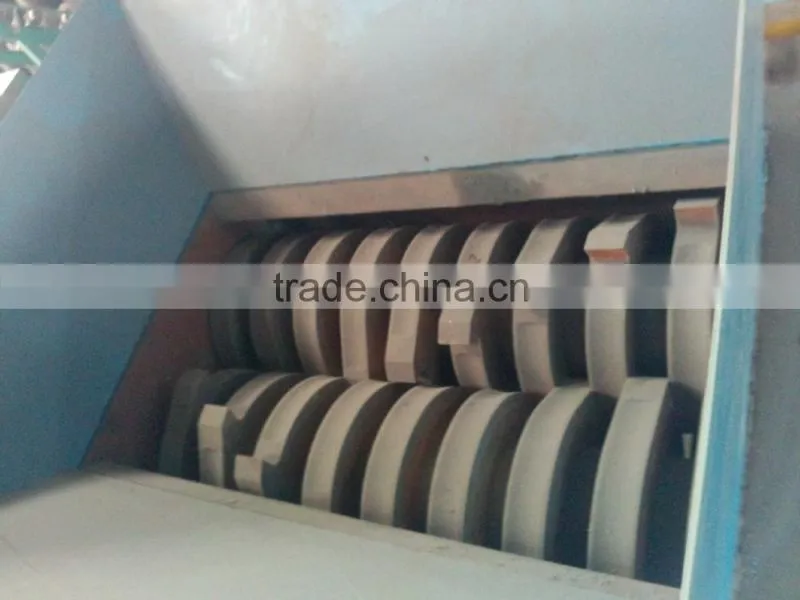

2. Meshing blades, the cans completely broken.

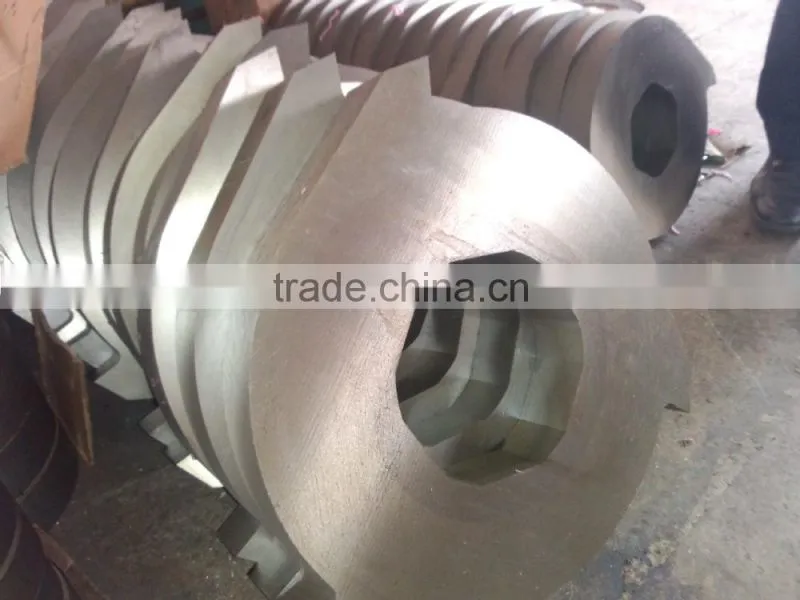

3. Use of special blades, blade hardness of not less than HRC55 (Rasp HRC hardness of 51 degrees)
4. Rugged construction, dense style ribs plate, to ensure that the strong box.
5. Automation button control, safety, convenience.
6. Can be equipped with conveyor belt feed.
Model |
zps-900 |
zps-1200 |
Input size |
Less than 900 |
Less than 1200 |
Discharge size |
50-300mm(adjustable) |
50-300mm(adjustable) |
Motor power |
30*2kw |
75*2kw |
Dimension |
3450*2100*2400mm |
4100*2730*3300mm |
Amount of waste tire |
0.8-1.5T/h |
2000-3800kg/h |
Screen power |
1.5KW |
5.5KW |
Main shaft speed |
19rpm |
22rpm |
Screen speed |
4rpm |
25rpm |
Number of blades |
18pcs, made of alloy steel, welded |
25pcs, made of alloy steel, welded |
Gearbox |
harden gears, large torque |
harden gears, large torque |
weight |
5.8T |
15.6T |
|
Equipped with output conveyor, sharing motor with screen
|
||
|
|
|
Rubber powder application Ø Sports venues
Rubber runway; Recreation ground; Bowling alley;
School stadium;Tennis and basketball courts;Sidewalks
Ø Traffic Modifying asphalt; Tire; Speed-down zone; Raft ……
Ø Daily life thing Elastic; Rubber shoes; Raincoat……
Ø Stationery and sporting goods Eraser; Ping-Pong; Basketball football……
Ø Construction& building materials
Rubber tiles; Carpet pad; Floor ; Roof liner and cover;
Waterproof materials; Roof and wall waterproofing membrane……
Ø Industrial products
Reclaimed rubber; Triangular belt; Gasket ring; Hose; Conveyer belt……
