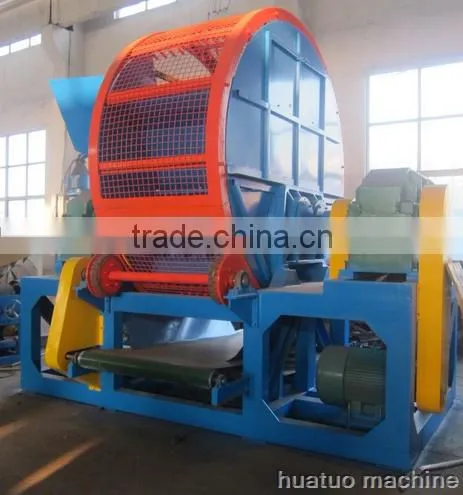

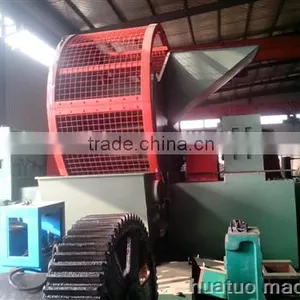

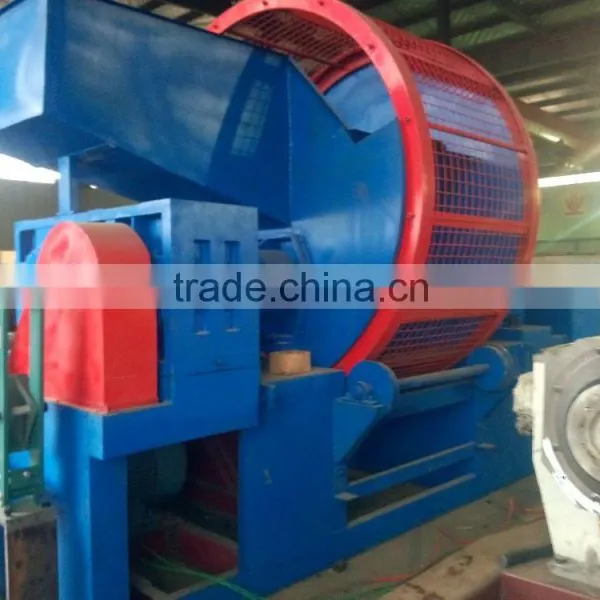

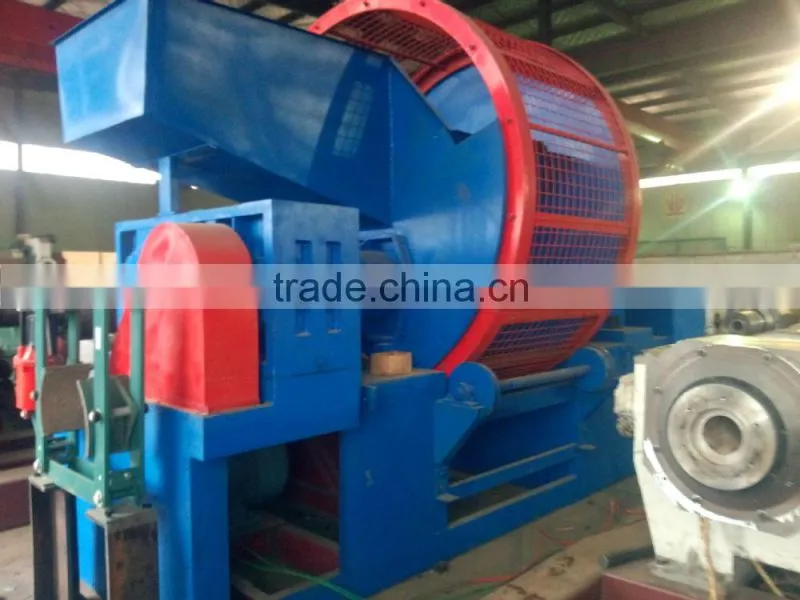

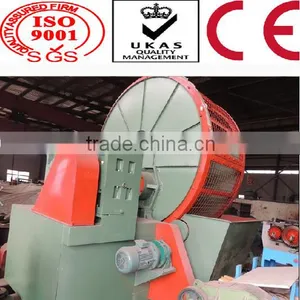

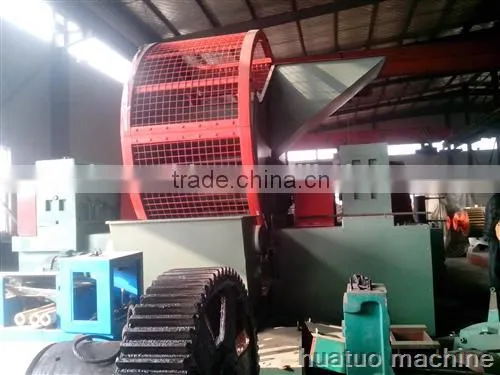

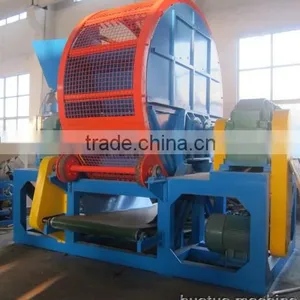

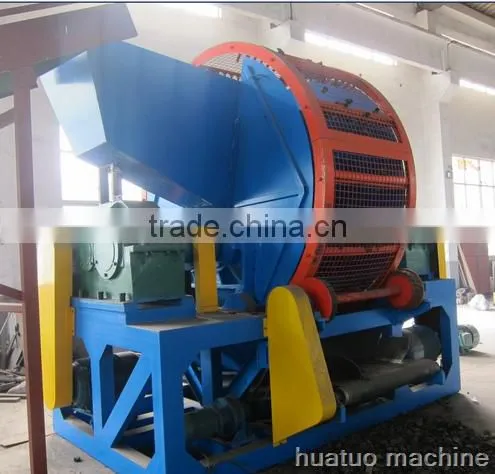

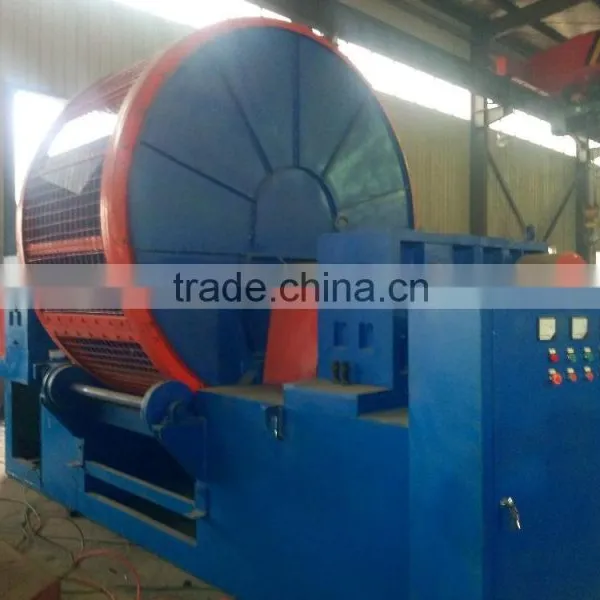

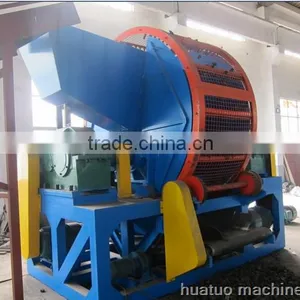

Waste Tire Shredder Machine Used Tire shredding machine with hard-alloy knife
Product Flow
This product is our company introduces the advanced technology research and absorbing and second generation product. At the general temperature, can be put directly into the tyre antrum coarse crushing into 50 * 50 mm block, so the next rotating can grind into 10-30 meshes tagma or wire and fiber separation equipment.
Feature:
This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; rotary screen for the lattice structure of steel mesh, blanking large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!
Mechanical description;the tire of 900mm diameter and rubber ring can directly breaken into 50-300 mmof plastic block.
Principle:
Motor drive through planetary gear reducer with a strong cutting torque, at gerenal temperature, continuous cutting, pressing, frustrated, after grinding, crushing the material into the cutting room the initial cut into blocks, the automatic sorting sieve screen, broken qualified material output, the rest of the larger materials with other materials to be broken again with the broken back to cutting room, and so forth until the output of qualified circulation of materials.
technical parameters:
Model |
zps-900 |
zps-1200 |
Input size |
Less than 900 |
Less than 1200 |
Discharge size |
50-300mm(adjustable) |
50-300mm(adjustable) |
Motor power |
30*2kw |
75*2kw |
Dimension |
3450*2100*2400mm |
4100*2730*3300mm |
Amount of waste tire |
0.8-1.5T/h |
2000-3800kg/h |
Screen power |
1.5KW |
5.5KW |
Main shaft speed |
19rpm |
22rpm |
Screen speed |
4rpm |
25rpm |
Number of blades |
18pcs, made of alloy steel, welded |
25pcs, made of alloy steel, welded |
Gearbox |
harden gears, large torque |
harden gears, large torque |
weight |
5.8T |
15.6T |
|
Equipped with output conveyor, sharing motor with screen
|
||
|
|
|
Rubber powder application Ø Sports venues
Rubber runway; Recreation ground; Bowling alley;
School stadium;Tennis and basketball courts;Sidewalks
Ø Traffic Modifying asphalt; Tire; Speed-down zone; Raft ……
Ø Daily life thing Elastic; Rubber shoes; Raincoat……
Ø Stationery and sporting goods Eraser; Ping-Pong; Basketball football……
Ø Construction& building materials
Rubber tiles; Carpet pad; Floor ; Roof liner and cover;
Waterproof materials; Roof and wall waterproofing membrane……
Ø Industrial products
Reclaimed rubber; Triangular belt; Gasket ring; Hose; Conveyer belt……
