Specifications
Rubber refining millused to get high quality rubber sheet
hardened reducer
roller bearing bush
lubricate pump

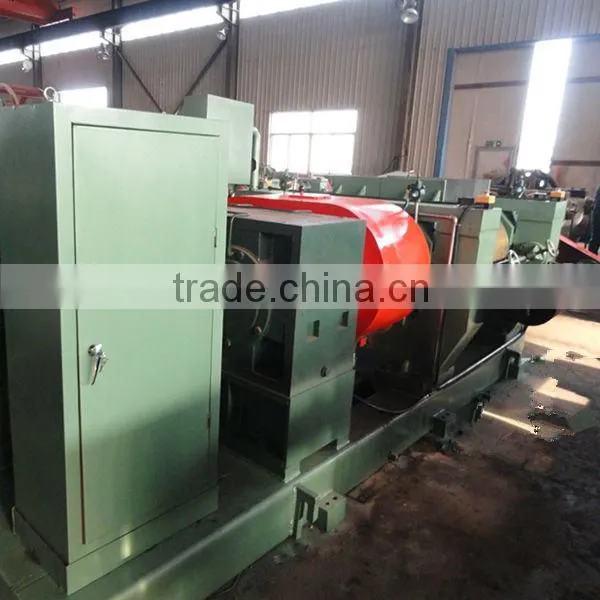

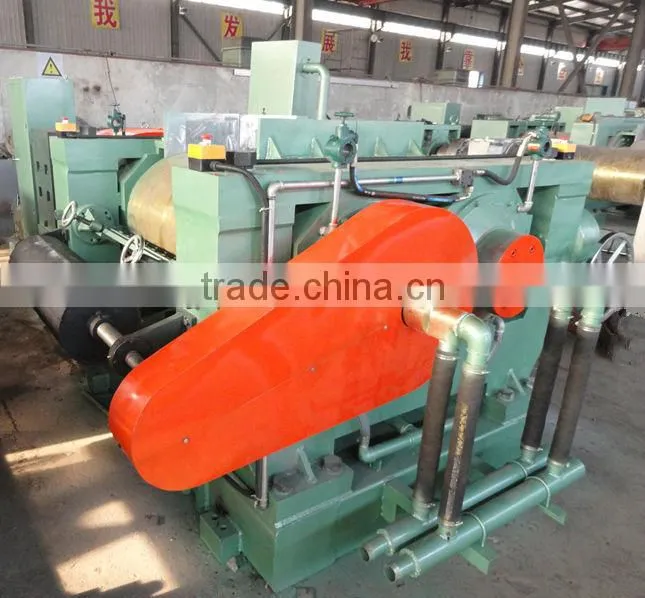

XKJ Series Rubber Refining Mill
1.Main Use:
One another point different from the open mixing mill:the roller is of waist drum model and mainly used for stripping away impurity substance of recliamed rubber.
2.Structures:
This machine consists of two rollers(waist drum model), base, frame, rack,transmission device,Bearing,Lubrication device, Decelerator, Adjustment device of the roller temperature,Emergency shutdown device and brake rigging,NGW Planetary hardened-gear Speed Reducer and etc.
3.Features:
1'Two rollers are made from Chilled Cast Iron,smooth surface is highly polished and scratch proof by cutting knife:high hardness and wear-resistant;
2'The roller is hollow structure,which is for adjusting the temperature of the rollers by steam or cooling water in term of different request;
3'Nip adjustment mode:manual or electric;
4'Main bearings:bearing or Nylon bush.
5'The machine is equipped with an overlaod protection device to prevent the major components from being damaged due to overloading.
6'The machine is also equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It is safe and reliable.
7'The machine is equipped with scraper and wind-up unit, which can take the reclaimed rubber away from the wind-up roll.
8'CE SGS ISO9001 certificated
4.Main Technical Parameter:
| ItemModel | XKJ-400 | XKJ-480 |
| Working Diameter of Rollers(front/rear)(mm) | 400/518 | 480/512 |
| Working Length of Rollers(mm) | 760 | 800 |
| Linear Speed of Front Roller(m/min) | 25.00 | 24.00 |
| Friction Ratio of Front and Rear roller | 1:1.71 | 1:1.75 |
| Max Gap(mm) | 10 | 15 |
| Capacity per Batch(kg) | 30-50 | 30-50 |
| Overall Dimension(L*W*H)(mm) | 4550*2100*1851 | 5070*2800*1979 |
| Gross Weight(kg) | 12000 | 20000 |
