Hard Roller Compact Structure Double Roll Mixing Mill

Hard Roller Compact Structure Double Roll Mixing Mill thumbnail-1
Hard Roller Compact Structure Double Roll Mixing Mill thumbnail-2
Hard Roller Compact Structure Double Roll Mixing Mill thumbnail-3
Hard Roller Compact Structure Double Roll Mixing Mill thumbnail-4
Hard Roller Compact Structure Double Roll Mixing Mill thumbnail-5
Hard Roller Compact Structure Double Roll Mixing Mill thumbnail-6
Hard Roller Compact Structure Double Roll Mixing Mill photo-1
Hard Roller Compact Structure Double Roll Mixing Mill photo-2
Hard Roller Compact Structure Double Roll Mixing Mill photo-3
Hard Roller Compact Structure Double Roll Mixing Mill photo-4
Hard Roller Compact Structure Double Roll Mixing Mill photo-5
Hard Roller Compact Structure Double Roll Mixing Mill photo-6
US$ 3,500 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Open Mixing Mill
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Huatuo Mechanical Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Open Mixing Mill
Place of Origin Shandong, China
Brand Name CN HT MACHINE
Model Number XSK SERIES
Voltage 380V or customer applied
Power(W) 5.5KW to 245KW
Dimension(L*W*H) Models varied
Weight 1.0Ton to 49tons
Certification CE and ISO
Warranty lifetime warranty
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Rubber Mixing Mill
1: special compact structure,high use of space
2:closed cooling water system
3:saves energy,high effects



Hard Roll Compact Structure Rubber mixing mill






Application : The mill is used for rubber plasticating, mixing, warming and sheeting.

General design:

1. The mill consists mainly for rolls, frame, bearing, roll nip adjusting, screw, heating and cooling device, emergency stop, lubrication system and such sections as electrical controls and, etc.

2. The main electric motor arrives the front and rear rolls to rotate oppositely through reduar, driving geras and friction gears.


Main features:







1. The roller adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof with long service life. The internal cavity is processed to make temperature well proportioned to the roller surface.







2. The speed reducer is the hard-tooth surface gear reducer of class 4 precision, which is durable and with low noise.







3. The machine is also equipped with an emergency brake device. When an emergency arises, just push the emergency stop button, the machine will stop immediately. It is safe and reliable.







4. The machine is equipped with an overload protection device to prevent the main components from being damaged.







5. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.







6. The base frame is a whole framework, which is convenient for installation.







7. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.



Machine parameters:









Model

XK-160

XK-250

XK-300

XK-360

XK-400

XK-450

XK-560

Diameter of rolls(mm)

160

250

300

360

400

450

560

Working length of rolls(mm)

320

620

750

900

1000

1200

1530

Linear speed of front roll(m/min)

11.24

14.4

15.1

16.25

18.65

24.5

29.09

Speed ratio of front & rear roll

1:1.35

1:1.17

1:1.27

1:1.25

1:1.27

1:1.27

1:1.2

Max. roll gap(mm)

4.5

8

8

10

10

15

20

Feeding capacity per batch(kg)

1-2

10-15

15-20

20-25

18-35

25-50

50-65

Driving motor power(kw)

7.5

18.5

22

30

37

55

75

Bearing body structure

Rolling bearing/nylon bushing/copper bushing

Lubrication mode

Grease/thin oil pump

Gap adjusting mode

Manual/electric

Overall dimension(mm)

L

1140

2900

3580

3780

4250

5000

5900

W

900

1500

1550

1850

1850

2280

2180

H

1370

1550

1695

1740

1760

1850

2000

Weight(ton)

1

3.2

5.2

6.5

7.3

12.5

22







 Pictures for whole machines

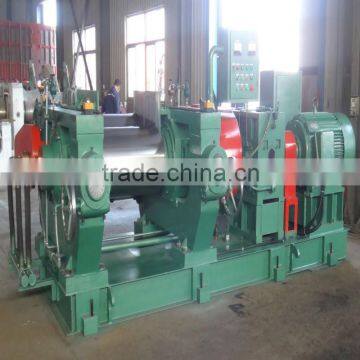

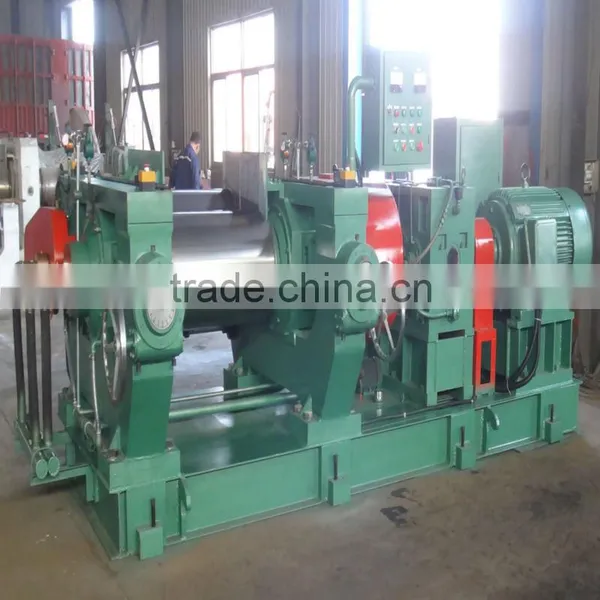

Hard Roller Compact Structure Double Roll Mixing Mill

double shaft model

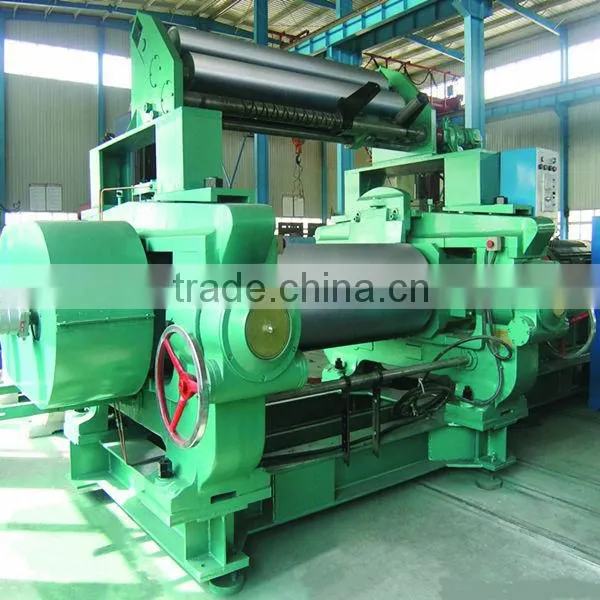

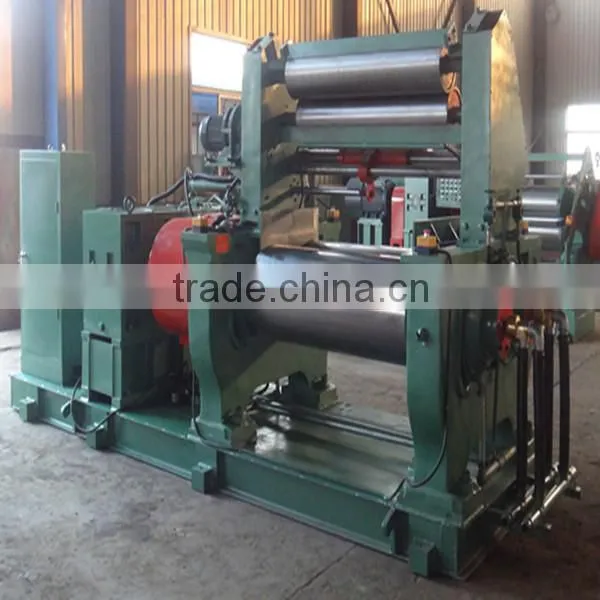

 Hard Roller Compact Structure Double Roll Mixing Mill



Advanced technology open mixing mill, with stock blender and cutting knife



Picture for parts of mixing mill

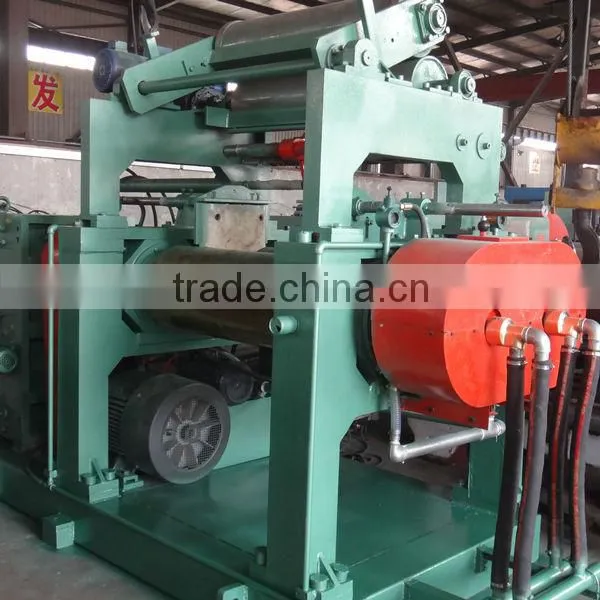

Hard Roller Compact Structure Double Roll Mixing Mill



roller bearing bush





Hard Roller Compact Structure Double Roll Mixing Mill

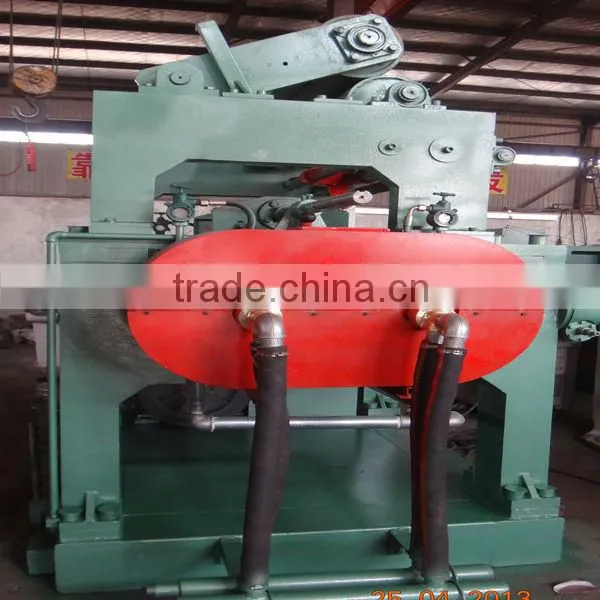

closed cooling water system





Hard Roller Compact Structure Double Roll Mixing Mill



emergency stop button

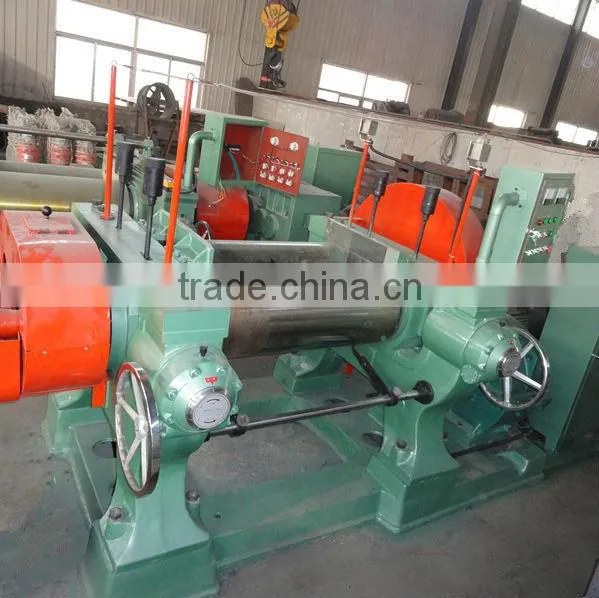

Hard Roller Compact Structure Double Roll Mixing Mill





operation box





Please contact us for what you want,we can design for you.
