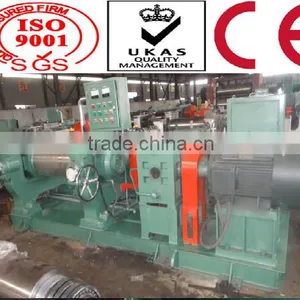

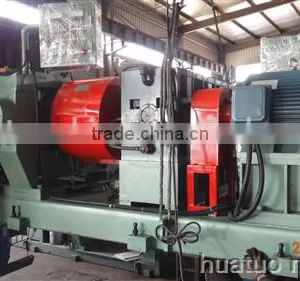

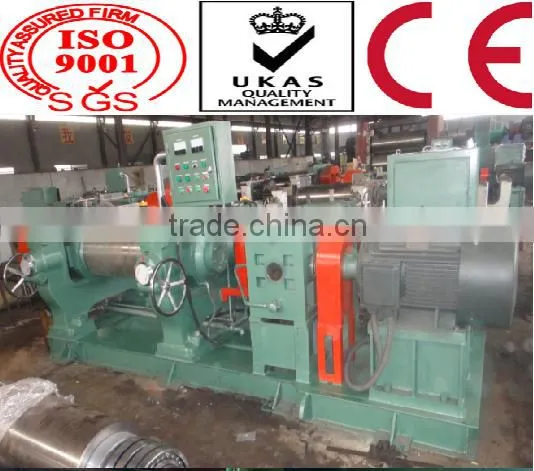

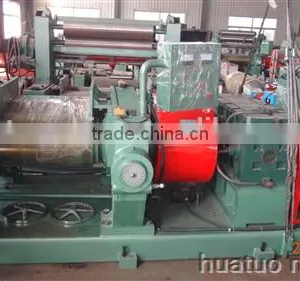

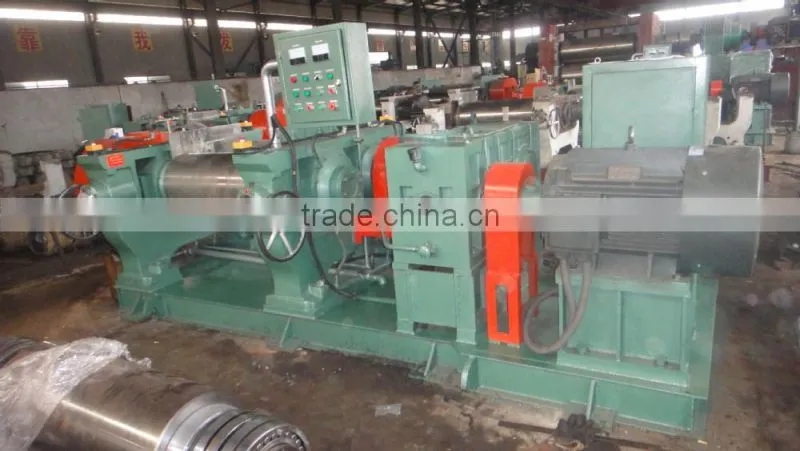

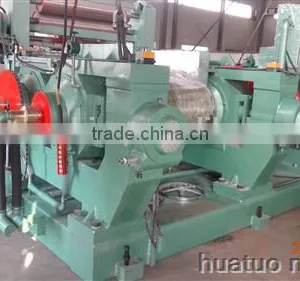

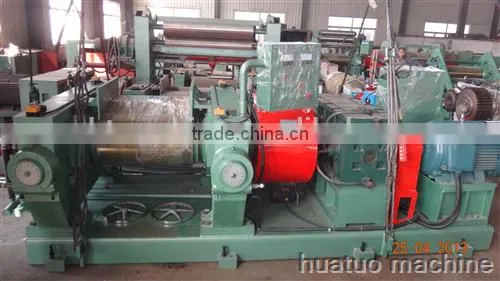

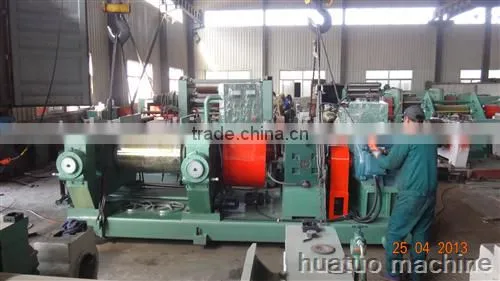

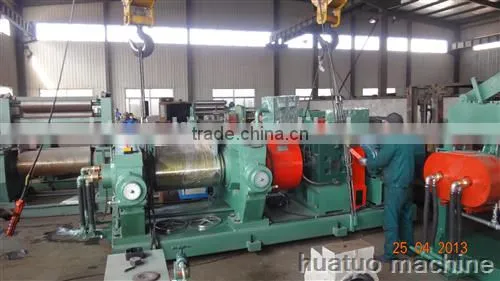

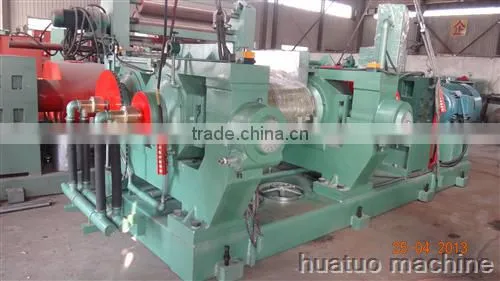

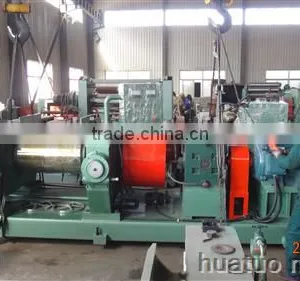

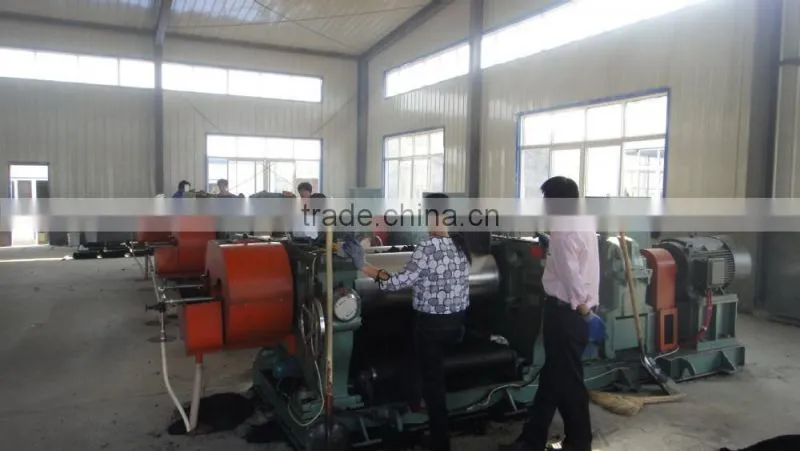

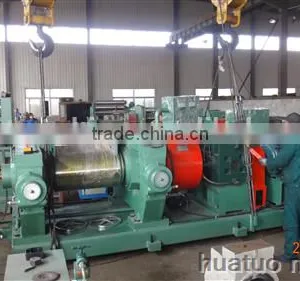

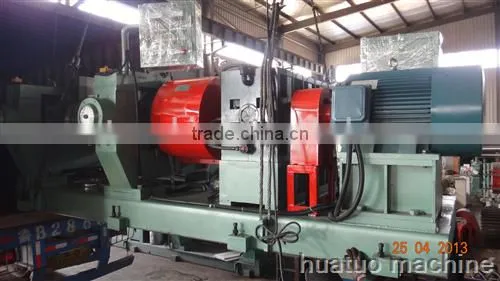

Reclaimed rubber making machine rubber milling machine rubber sheet making machine
Name
Reclaimed rubber making machine
USE
This machine is mainly used in Rubber & Plastic Product factory for Natural Rubber Mixing(plasticating),Raw Rubber and Compound mixing,rubber warm-up mixing and pressing sheet.
Parameters :
Model |
XKN-450 |
Front Roll diameter |
φ450×1000 |
Back roll diameter |
φ510×1000 |
Roller working surface(mm) |
1000 |
Front roll surface speed(m/min) |
28.63 m/min |
Back roll surface speed(m/min) |
56 |
Friction ratio |
1:1.957 |
Max nip(min) |
12 |
Feeding capacity per hour (kg) |
18-35 |
Motor information |
Y280-6-55KW |
Reducer information |
ZSYF355-28 |
Bearing |
23052CA/W33 |
Lubricating mode |
Automatic Grease oil lubrication |
Rotate mode |
Motor / reducer direct-coupled |
Size(l/w/h) |
4250×1850×1870 |
Weight(kg) |
11000kg |
1. Base, frame, the rollers, drive system, roll gap adjustment device, heating and cooling device, safety brake, lubrication system, electric control system, motor and reducer etc.
2.Materials of Rolls:
Cast iron alloy (LTGH), whose surface hardness is HS, 68~75 is after quenching and precision processing. The working surface is well grinded and machined. The roller adopts double auto-centering rolling bearings, which are lubricated by lubrication grease.avaiable roolers types:cored smooth roll,cored fluted roll,circumferentially drilled smooth roll.
3.Drive system:
The reducer has hard tooth surface reducer. the motor is connected with reducer by elastic shaft coupling. The reducer structure type is double out shaft transmission, which is connected with front and back rolls by universal shaft coupling of nylon stick pin. All the drive gears of reducer are concentrated inside the case, which is well lubricating with spray type and has long useful life.
4. Roll gap adjustment: electric automatic
5. Motor: Frequency control of motor speed

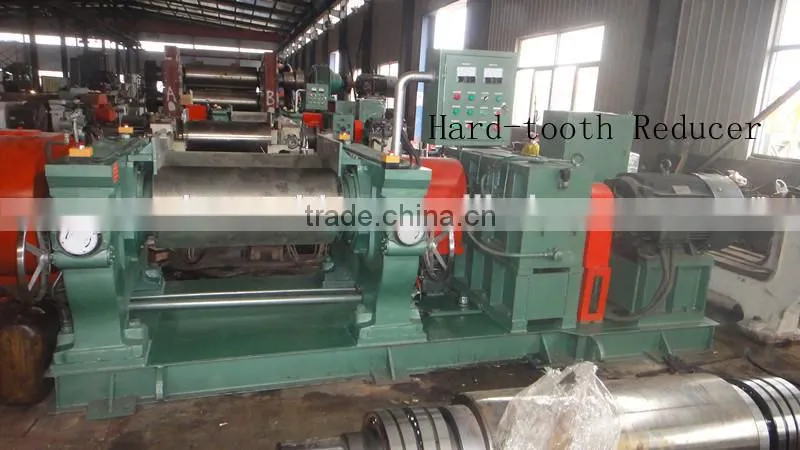

6. Reducer:
Airtight leaching oil type, ZSYE reducer (There are a variety of choice, the price is different), Almost no noise, safety ),Gear Box(double out shaft transmission)
7. Braking capacity:
The machine has safety device, overload, and safety piece of destruction, to protect the major parts.
8. control system :PLC control
