Help CenterSoundproof 20KVA Cummins Engine Diesel Generator Powered by 4B3.9-G1
Related Products
-
Self Start Soundproof Diesel Generator With Four Protection FunctionUS$ 2,000 - 150,000MOQ: 1 Set -
Water Cooling Low Noise Electric Generator With Automatic Transfer SwitchUS$ 2,000 - 150,000MOQ: 1 Set
-
16-800kw Cummins Engine Silent Generator With CE ISO CertificateUS$ 5,000 - 50,000MOQ: 1 Set
-
20-1000KVA Diesel Electric Generators With CE CertificateUS$ 4,500 - 100,000MOQ: 1 Set
-
20-1000KVA Diesel Generator Silent for Sale With CE CertificateUS$ 4,500 - 100,000MOQ: 1 Set
20KVA Cummins engine diesel generator specification
MODEL |
SC20GF |
Standby Power(50HZ) |
17.6KW/22KVA |
Prime Power(50HZ) |
16KW/20KVA |
Standard Features |
|
General Features l Engine(Cummins 4B3.9-G1) l Radiator 40°C max, fans are driven by belt ,with safety guard l 24V charge alternator l Alternator (XN184E), single bearing alternator IP23, insulation class H/H l Absorber l Dry type air filter, fuel filter, oil filter l Main line circuit breaker l control panel l 8hrs base fuel tank l 2PCS 12V batteries, rack and cable l Ripple flex exhaust pipe ,exhaust siphone, flange, muffler. l User manual |
|
ENGINE DATA |
Manufacturer /Model: Cummins 4B3.9-G1
Air intake System: Air natural
Cylinder Arrangement: 4 in LINE
Displacement : 3.9L
Bore and Stroke: 102*120 (MM)
Compression Ratio: 16.8:1
Rated RPM: 1500rpm
Prime power: 24KW
Governor Type: Mechanical
ALTERNATOR SPECIFICATION |
General data |
Compliance with GB755, BS5000, VDE0530, NEMAMG1-22, IED34-1, CSA22.2 and AS1359 standards.
Alternator Data |
Manufacture /Type: XINGNUO / XN184E
Number of Phase: three
Connecting Type: 3 Phase and 4 wire Rotating Field
Number of Bearing: one
Power Factor: 0.8
Protection Grade:IP23
Altitude: ≤1000m
Exciter Type: Brush less, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): < 50
THF:<2%
Voltage Regulation, Steady State: ≤1.5%
Alternator Capacity: 20KVA
Alternator Efficiencies: 84.2%

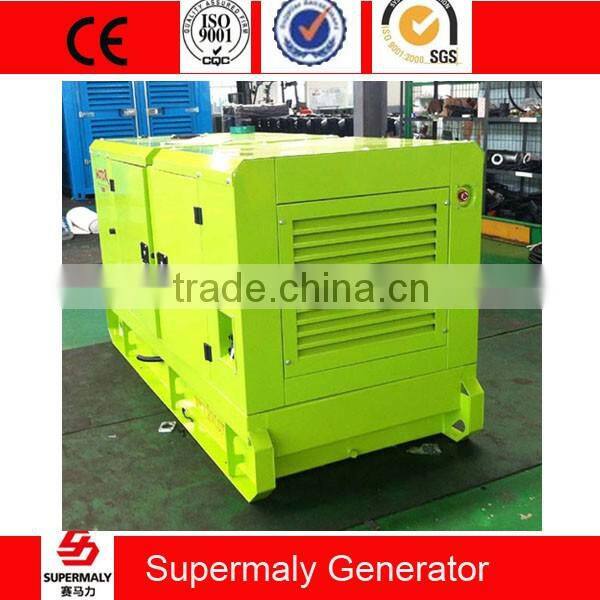

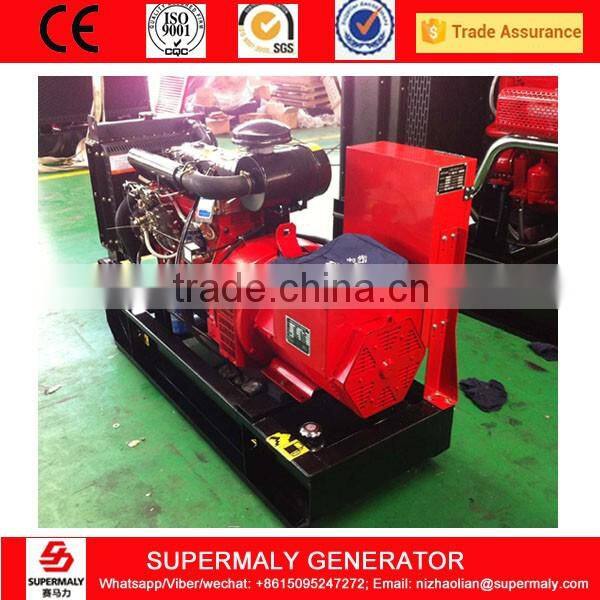

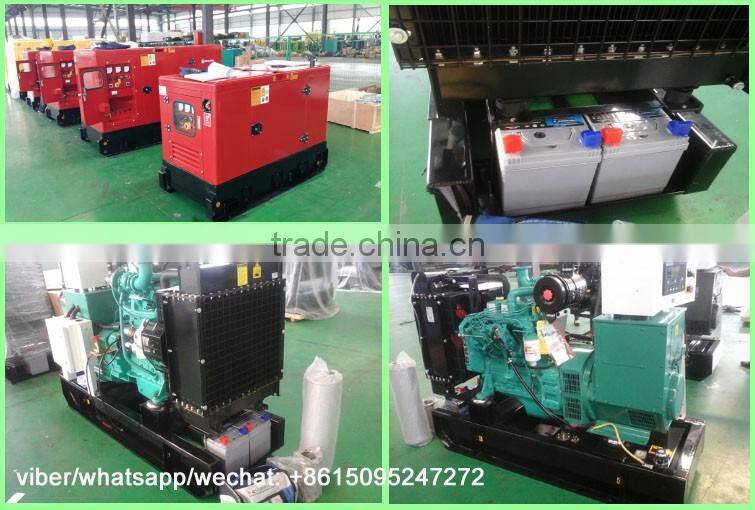

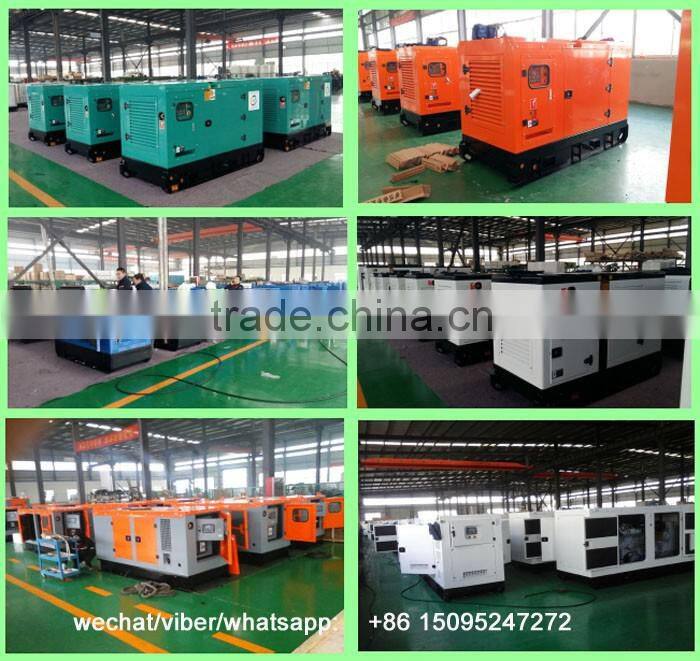

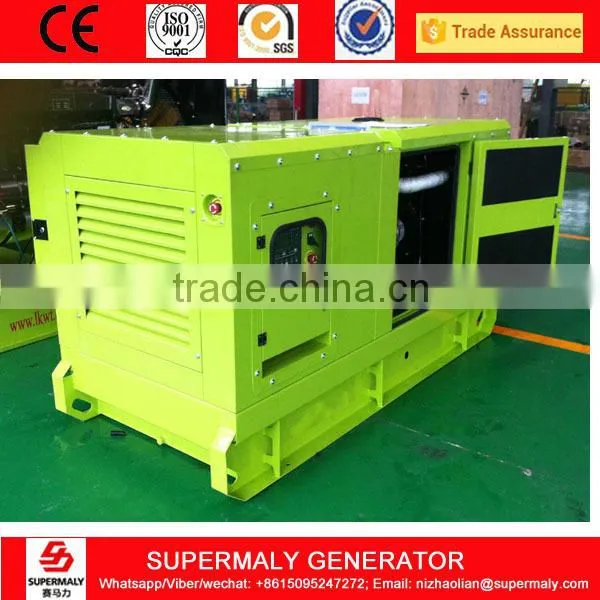

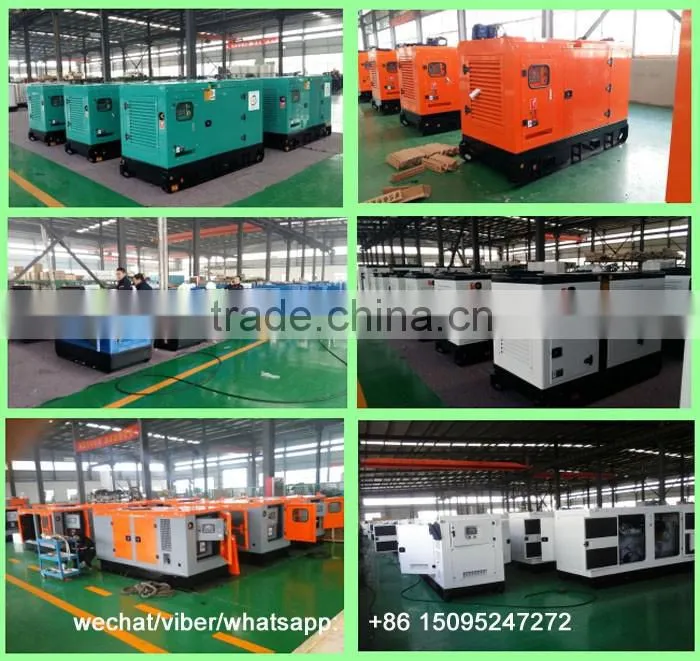

20KVA Cummins engine diesel generator photos
Our certifications: ISO9001-2008, CE, BV, COC, CIQ, and OEM certifications from engine and alternator factories.
Warranty policy:
Guarantee for one year or 1500 hours whichever reach first from ex-factory date.
During the guarantee period, we will provide the free easy-damageable
spare parts of diesel engine caused by our quality of production or raw material.
After expiration, we provides cost spare parts maintenance of gensets
OEM Service:
We can provide professional OEM Service for customers.
1. Unique design and manufacture of generator according to customers requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be design according to
customer requirement.
4. Full warranty cover to support customers.
FAQ(Frequently Asked Question):
1. What is your warranty period?
Our payment terms is 1 year or 1500 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins, Perkins, Doosan, Yuchai, Deutz, Volvo power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
Our normal delivery time is 15-20 days. But if your order is some special engine and alternator, then the delivery time is longer.
Supermaly main products:
Diesel generator set: power by Perkins, Cummins, Doosan,Deutz, Volvo, Yuchai and son on.
Natural gas generator set: power by Perkins, revised Cummins, Yuchai.
Generator type: open generator, silent generator, mobile generator.
Contact me as the below guide or talks by mobile number. We are glad to give you best price and service. Please kindly check the following photos for more details if you need other brands.
