60KVA Cummins generator details:
1) 60kva Cummins generator with CUMMINS engine, PERKINS engine, DEUTZ, VOLVO, LOVOL or RICARDO, KOFO etc.
2) 60KVA Cummins Generator with alternator Stamford, Mathron, Leroy somer, Engga or Siemens,etc.
3) Our 60kva Cummins generator strict tests before delivery.
4) Features: stable performance, easy maintenance, low operation cost, low emission.
60KVA Cummins Generator specification
| 60KVA Cummins engine Diesel Generator | |||
| Genset Model | Silent Type | SC60GFS | |
| Prime Power(kva) | 60 | ||
| Standby Power(kva) | 66 | ||
| Rated current(A) | 86.4 | ||
| Overall Size(mm) | Length(mm) | 2350 | |
| Width(mm) | 910 | ||
| Height(mm) | 1550 | ||
| Gross Weight(kg) | 1300 | ||
| Diesel Engine | Model | 4BTA3.9-G2 | |
| Type | water-cooled,4-stroke,direct injection,wet cylinder liner | ||
| Rated Power(kva) | 62.5 | ||
| Rated speed(RPM) | 1500 | ||
| Intake Type | Turbocharged | ||
| No.of Cylinder | 4.L | ||
| Bore x Stroke(mm) | 102*120 | ||
| Compression ratio | 16.5:1 | ||
| Exhaust Temperature(°C) | 475 | ||
| Lub oil Capacity(L) | 11 | ||
| Rated Fuel Consumption(L/h) | 11.2 (100% load) | ||
| Displacement(L) | 3.9 | ||
| Starting method | Electric motor | ||
| Governing Type | Electric governor | ||
| Alternator | Brand | Stamford | |
| Model | UCI224E | ||
| Rated Power(kva) | 60 | ||
| Power Efficiency | 93.90% | ||
| Voltage Regulation | ≤±1 | ||
| Excitation Type | Brushless | ||
| Insulation Class | H | ||
GENERAL SPECIFICATIONS
. Brand New Cummins-Powered Diesel Generator Set
· Dual Phase System: Single or Three Phase
· Dual Voltage Output : 200V~240V / 400~440V AC
· Rated Frequency: 60Hz / 50HZ
· Power Factor: 0.8
Cummins™ENGINE SPECIFICATIONS
· CUMMINSTM Diesel Engine -- Manufactured Under License of Cummins Engine Co., Inc. U.S.A.
· Direct Injected
· Industrial 4-Cycle, Water-Cooled (Radiator-Cooled)
· Engine Speed: 1800 rpm /1500rpm
· Governor: (Automatic) Electrical
· Turbo-charged
· After-cooled (on some models)
A.C. ALTERNATOR SPECIFICATIONS
· New Brushless Alternator
· Built-In Automatic Voltage Regulator (A.V.R.)
· Rotating Field, Self-Ventilated, Double-Shielded Single Bearing
· Class “H” Insulation
· Rotor Balance (in accordance with BS5625 Standard 12.5)
PANEL CONTROL
Key Manual Start Module Engine Control & Monitoring Panel
· Low Oil Pressure , High Water Temp Protection Features
· Tamper-Proof Engine Hour Counter
· Auto/Manual Start
· Simultaneous Multiple Engine Parameters Monitoring
· Remote Start/Stop thru SMS, with GSM SIM Card (on some models)

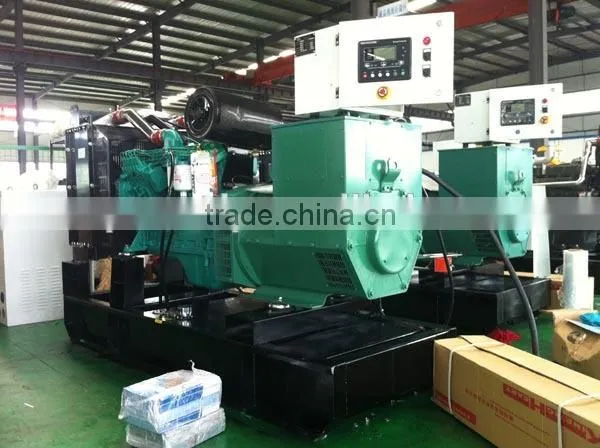

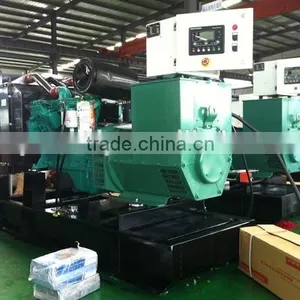

60kva Cummins generator strictly tested before delivery
Packing and shipping of 60KVA Cummins generator
Certifications of 60KVA Cummins generator

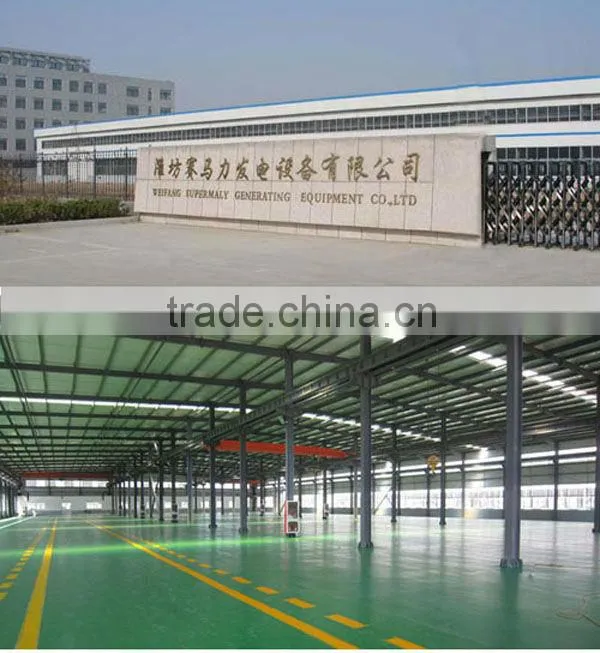

OUR FACTORY
